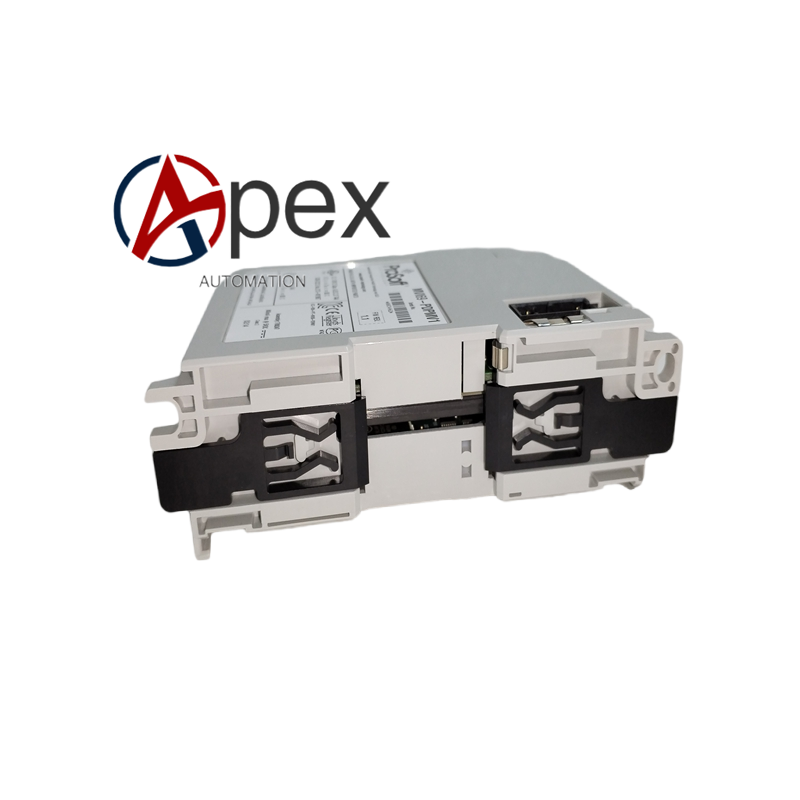

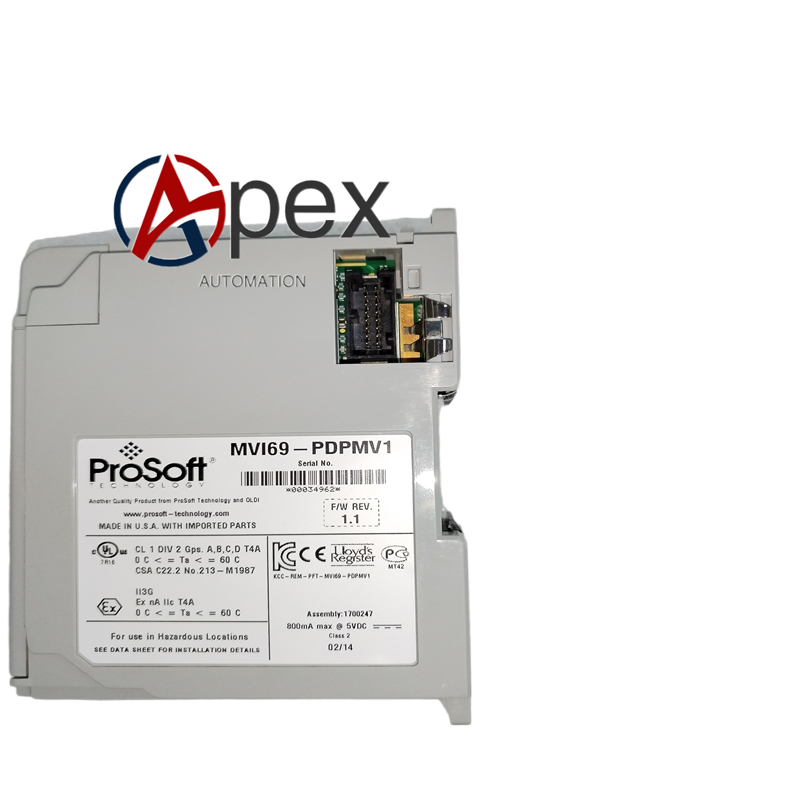

ProSoft MVI69‑PDPMV1 PROFIBUS‑DPV1 Master Communication Module

Technical Specifications Model: MVI69‑PDPMV1 Back‑plane Compatibility: 1769 CompactLogix rack single‑slot installation PROFIBUS Interface: DB‑9 male PROFIBUS‑DP connector PROFIBUS Rate: 9.6 kbaud ~12 Mbaud configurable Supported Protocol: PROFIBUS‑DPV0 / DPV1 master‑station service Back‑plane Power Consumption: 800 mA @5 VDC from 1769 back‑plane Configuration Port: RS‑232 CFG service‑port for module configuration download Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Works as complete PROFIBUS‑DPV1 master station, supports cyclic I/O data exchange and acyclic Class1 / Class2 DPV1 parameter service. Single‑slot 1769 rack‑mount structure, directly inserts into CompactLogix controller rack. Realizes bidirectional data mapping between CompactLogix controller tag data and PROFIBUS‑DP slave‑station I/O data. Supports ProSoft Configuration Builder software for PROFIBUS‑network configuration and project download. Add‑On‑Instruction (AOI) and sample ladder logic provided for controller‑side data‑processing. Front‑panel multi‑group LED indicators show module power‑on, back‑plane status, PROFIBUS‑bus status and module application‑running status. On‑board self‑diagnosis monitors back‑plane communication fault, PROFIBUS‑bus short‑circuit and slave‑station communication‑loss fault.

Application Scenarios Spare‑part replacement for MVI69‑PDPMV1 PROFIBUS‑master communication‑module in CompactLogix automation rack. Communication gateway for CompactLogix PLC connecting PROFIBUS‑DP slave‑site devices such as frequency converter, remote‑I/O and instrument. System‑renovation project for Rockwell CompactLogix system accessing legacy PROFIBUS‑field‑bus equipment.

Installation Requirements Slide MVI69‑PDPMV1 module onto 35 mm DIN‑rail, lock inter‑locking buckle with adjacent 1769‑series modules, insert into designated CompactLogix rack slot. Connect PROFIBUS‑DP shielded‑cable to DB‑9 interface, install PROFIBUS‑bus terminating‑resistor at two physical ends of bus trunk‑line. Connect PC serial‑cable to RS‑232 CFG port for configuration download during commissioning phase. Implement protective earthing for module housing complying with PLC‑cabinet grounding specification. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation. Complete PROFIBUS‑network configuration download, configure controller AOI instruction, verify cyclic data‑exchange function.
