Technical Specifications Industrial backplane rack installation, 24V DC power supply, multiple signal channels, built-in EMC protection, wide industrial operating temperature range.
Functional Features Collects analog and digital field signals, communicates with the main controller, supports local logic processing and channel fault diagnosis.
Application Scenarios Power industry, chemical plants, water treatment and other process control cabinets.
Performance Parameters High signal sampling accuracy, stable bus communication, continuous 24-hour operation, built-in status LED indicators.

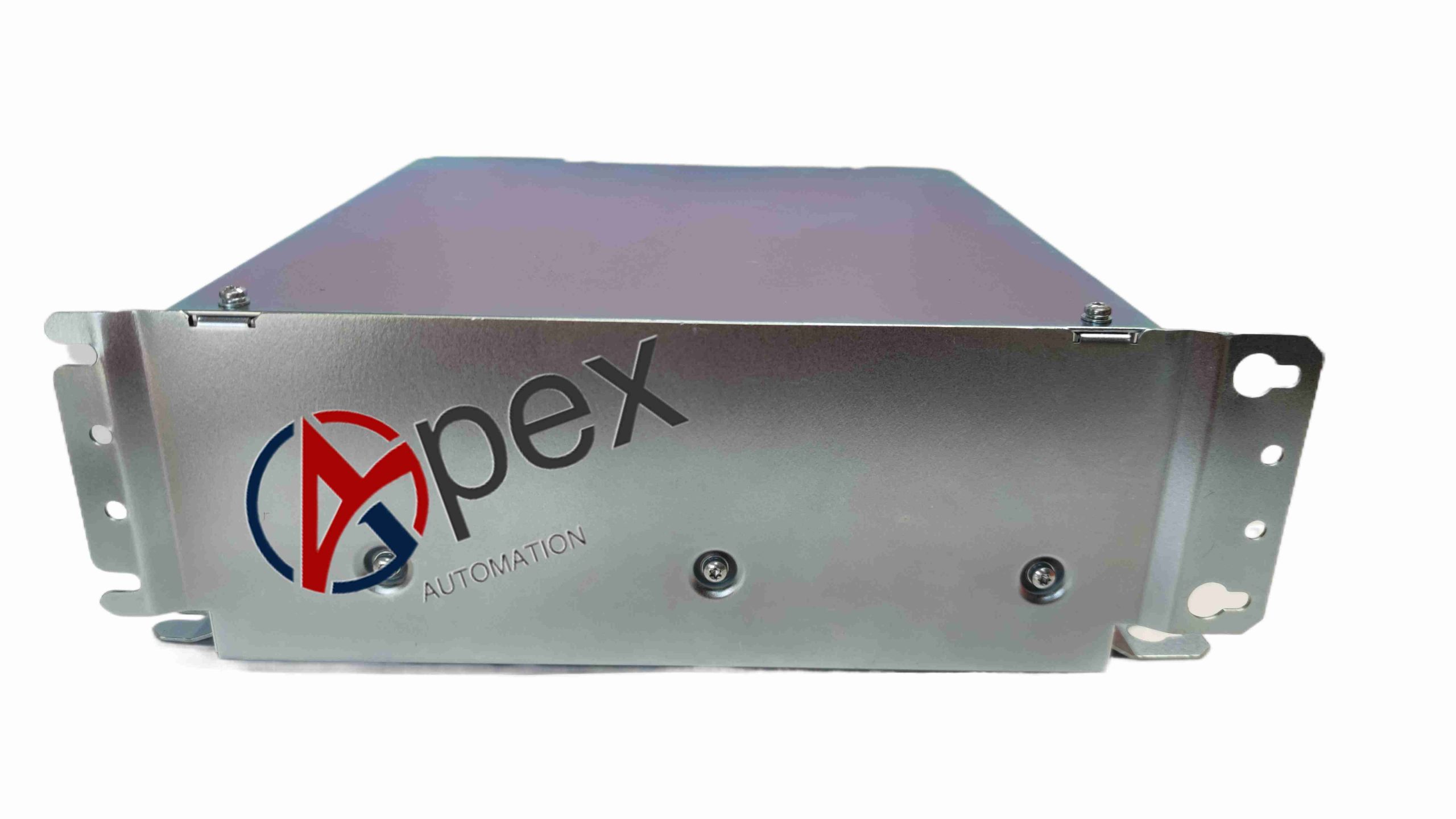

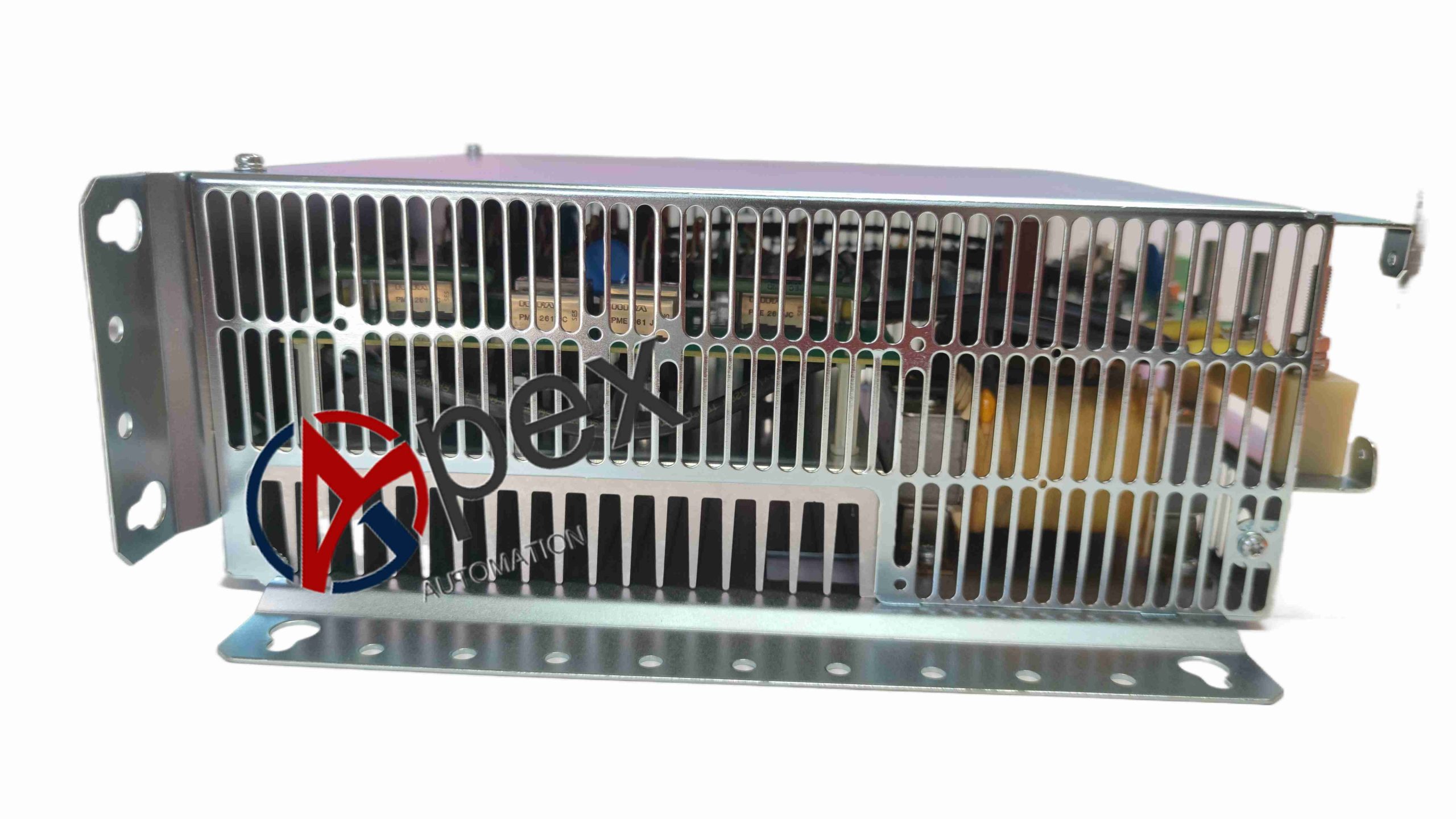

Structural Characteristics Standard plug-in rack module, metal housing, backplane connector for power and system bus connection.
Working Principle Receives field sensor signals, converts and packages data, exchanges information with the main controller and executes local control instructions.
Installation Requirements Install in the specified slot of ABB control rack, ensure firm backplane contact, wire field signals in accordance with specifications.
Usage Notes Do not plug or unplug the module when power is applied. Check LED status for faults. Configure parameters via ABB system engineering software.
