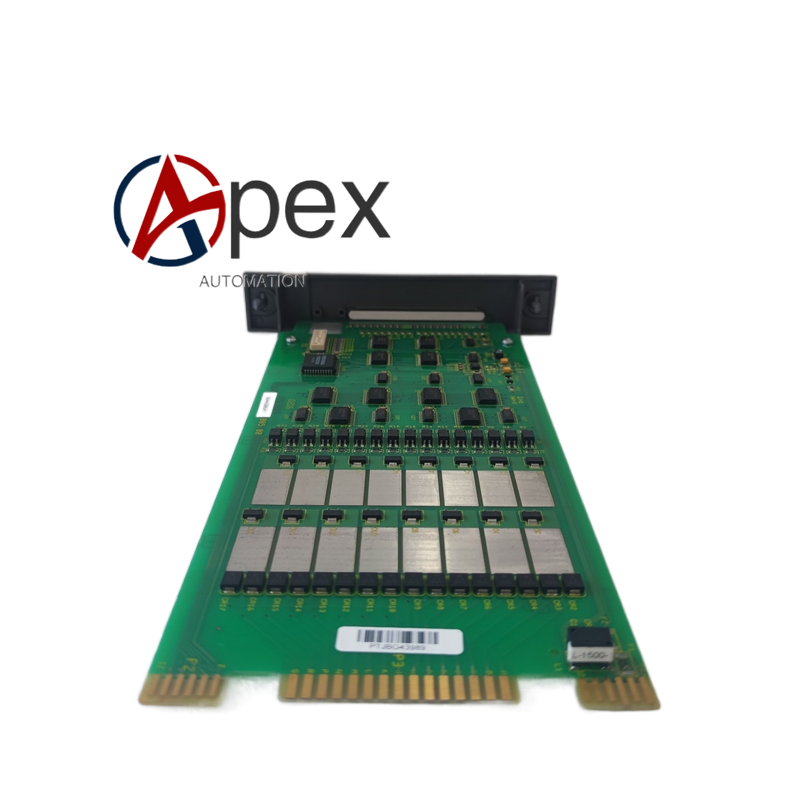

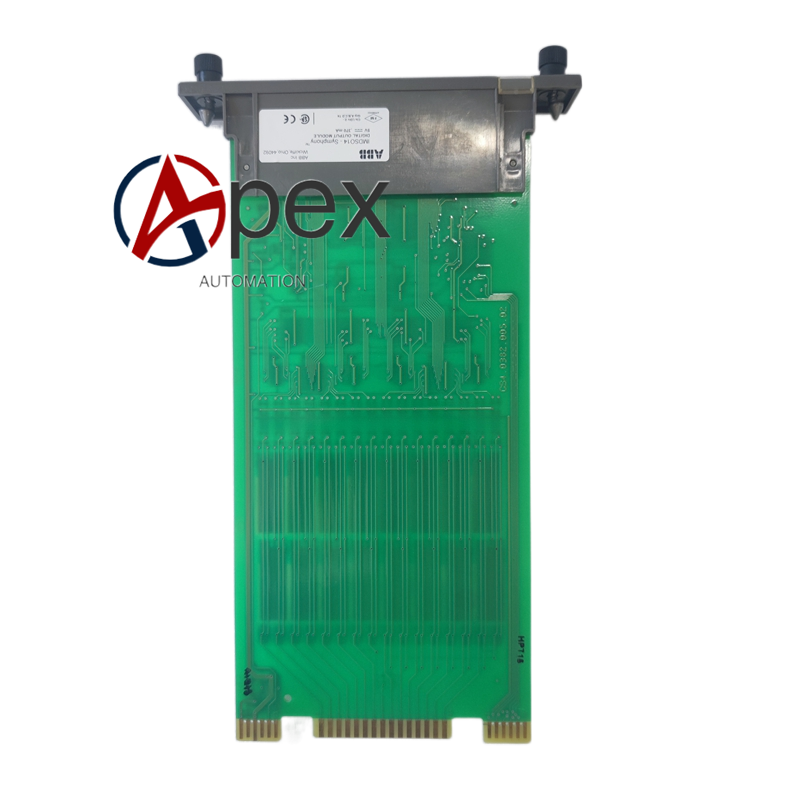

Technical Specifications Model: IMDSO14 Output Channel Quantity: 16 open‑collector transistor outputs, divided into two groups Supported Load Voltage: 24 VDC / 48 VDC Per‑channel Max Load Current: 250 mA under 24 VDC, 125 mA under 48 VDC Output Response Time: Less than 10 ms Back‑plane Power Supply: +5 VDC from rack back‑plane Galvanic Isolation: 1500 VAC between channel circuit and back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE, UL

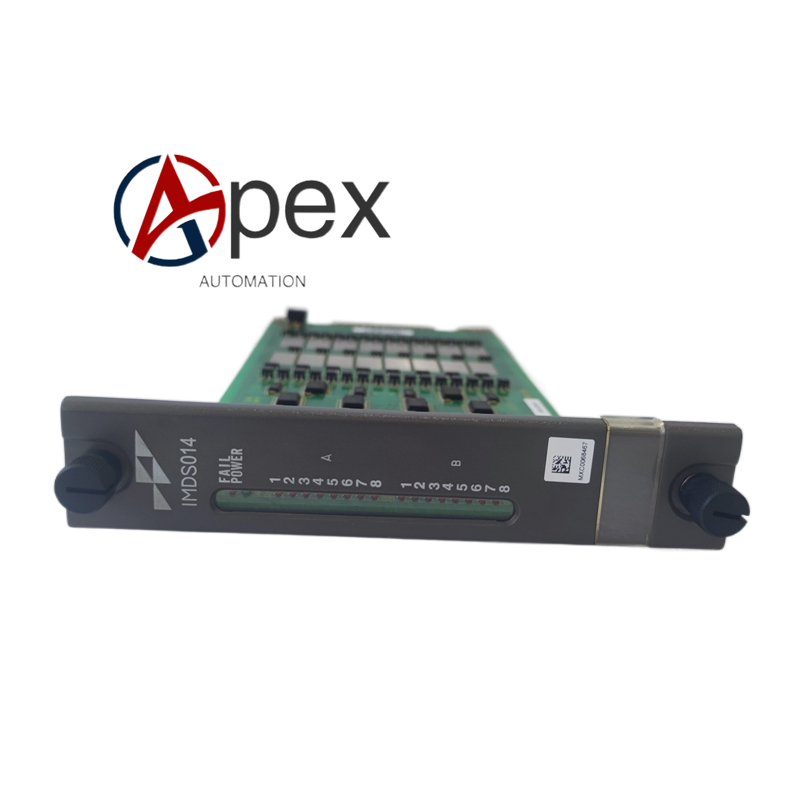

Functional Features 16‑channel open‑collector transistor output for driving intermediate relay loops. Per‑channel independent hardware over‑current, short‑circuit and reverse‑polarity protection; fault channel locks without influencing other working channels. Hardware jumper configurable fail‑safe mode for communication loss and module fault condition. Front‑panel dual‑color general status LED plus 16 independent channel LED indicators. On‑board self‑diagnosis detects back‑plane power supply anomaly and channel fault, uploads fault information to main controller. Supports authorized hot‑swap under specified system maintenance workflow.
Application Scenarios Spare‑part replacement for IMDSO14 digital output module in Symphony DCS rack. Discrete logic control for intermediate relays, indicator lamps and cabinet auxiliary logic loops. Field switching control in thermal power, chemical and manufacturing automation projects.
Installation Requirements Insert IMDSO14 fully into target MMU rack slot and tighten front locking screw. Complete wiring connection between module and matched field terminal unit. Implement protective earthing complying with DCS system grounding specification. Reserve ventilation heat‑dissipation clearance around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Set fail‑safe mode hardware jumper according to project requirement before power‑on. Verify each channel output action function after hardware installation completion.
Usage Notes This module adopts open‑collector transistor output, cannot directly drive solenoid valves and contactors; external intermediate relay must be configured.
