Technical Specifications Multi‑channel pulse output channels, back‑plane signal input interface. Auxiliary power 24 V DC, typical power consumption 6.7 W. Operating temperature ‑10 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated circuit board.
Functional Features Receives control commands from main controller. Completes pulse signal shaping, amplification and distribution. Outputs driving pulse signals to power units. On‑board LED shows pulse channel working status. Built‑in hardware self‑diagnosis detects pulse output circuit faults. Conformal coating improves environmental adaptability.
Application Scenarios Replacement spare‑part for ABB excitation system and medium‑voltage power conversion equipment. Applied in power plant and heavy‑industry automation site maintenance work.
Performance Parameters Stable pulse amplitude and phase output. Fast signal response meets power device triggering timing requirement. Self‑diagnosis captures pulse output circuit failure rapidly.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Pulse signal amplification and driving components. Conformal protective coating. Back‑plane plug‑in connectors and pulse output terminals.

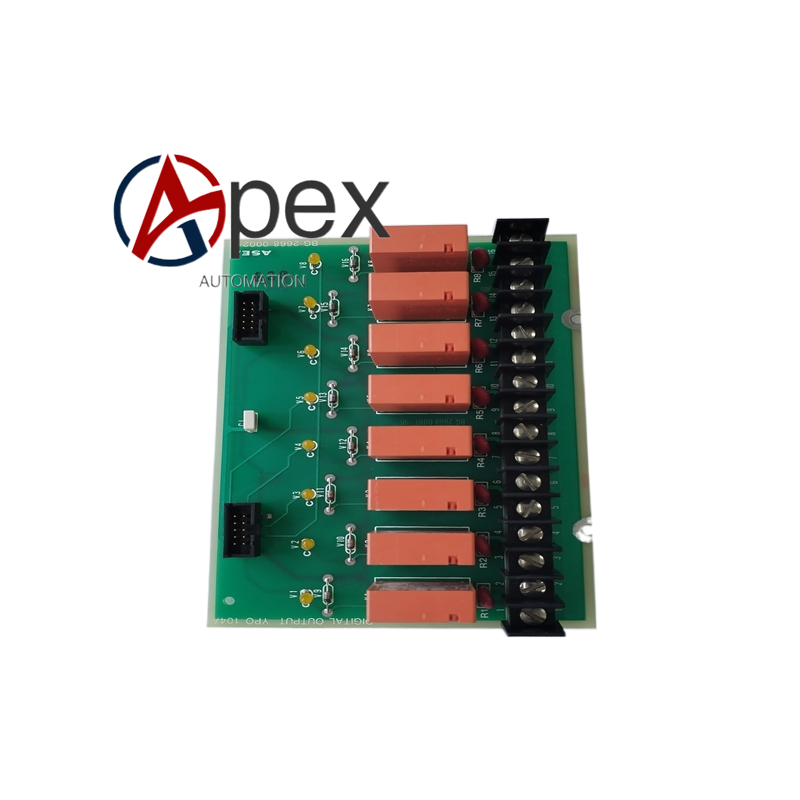

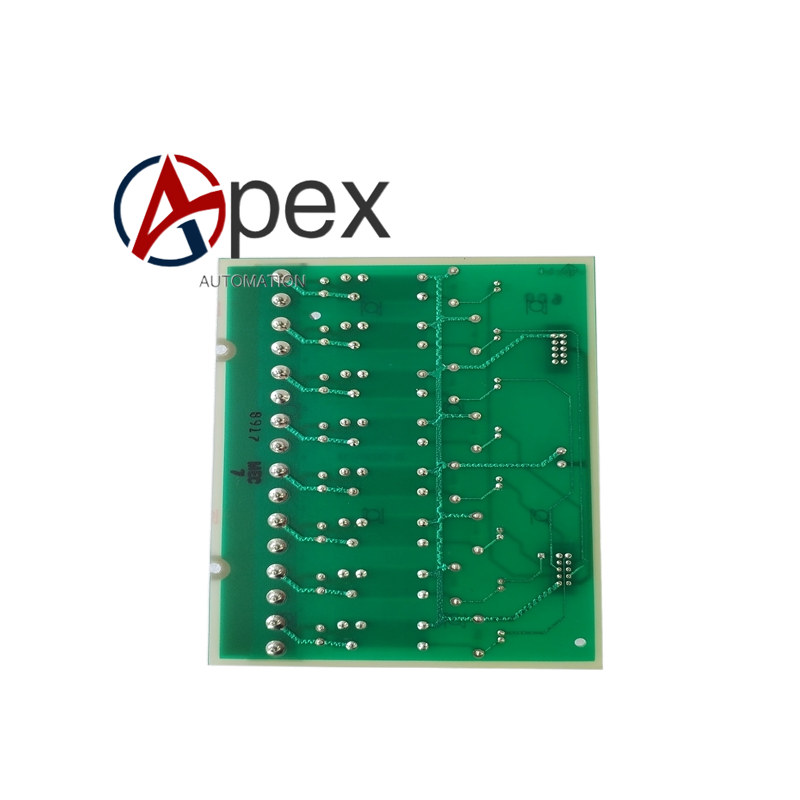

Structural Characteristics Plug‑in circuit board matching cabinet rack slot. Board edge equipped with back‑plane bus connector and pulse output wiring terminals. Reserved mechanical fixing holes. Weight approximately 0.66 kilogram.
Working Principle After power‑on, the board completes hardware self‑check. Control commands are received from main controller via back‑plane bus. Internal circuit shapes and amplifies pulse signals. Processed pulse signals are distributed to each power unit.
Installation Requirements Fully cut off cabinet control power and high‑voltage power before replacement. Insert YPO104 into corresponding slot and tighten fixing screws. Confirm back‑plane connector is fully locked.
