Technical Specifications Multi‑channel isolated signal input and output. Auxiliary power 24 V DC, typical power consumption 5.7 W. Operating temperature ‑10 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated circuit board, isolation voltage 1500 V AC.
Functional Features Completes multi‑channel signal level conversion and signal distribution. Realizes galvanic isolation between controller side and field‑side circuit. On‑board LED indicators reflect channel operating status. Built‑in hardware self‑diagnosis function for signal loop abnormality. Conformal coating improves environmental adaptability.
Application Scenarios Internal spare‑part for ABB DCS and industrial control rack systems. Used for equipment overhaul and spare‑part replacement in power plant and heavy‑industry automation sites.
Performance Parameters Low‑distortion signal transmission under long‑term continuous operation. Galvanic isolation suppresses ground loop interference. Self‑diagnosis can capture signal circuit breakage and short‑circuit faults.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal conversion and optocoupler isolation assemblies. Conformal protective coating. Back‑plane plug‑in connectors and field‑side screw terminals.

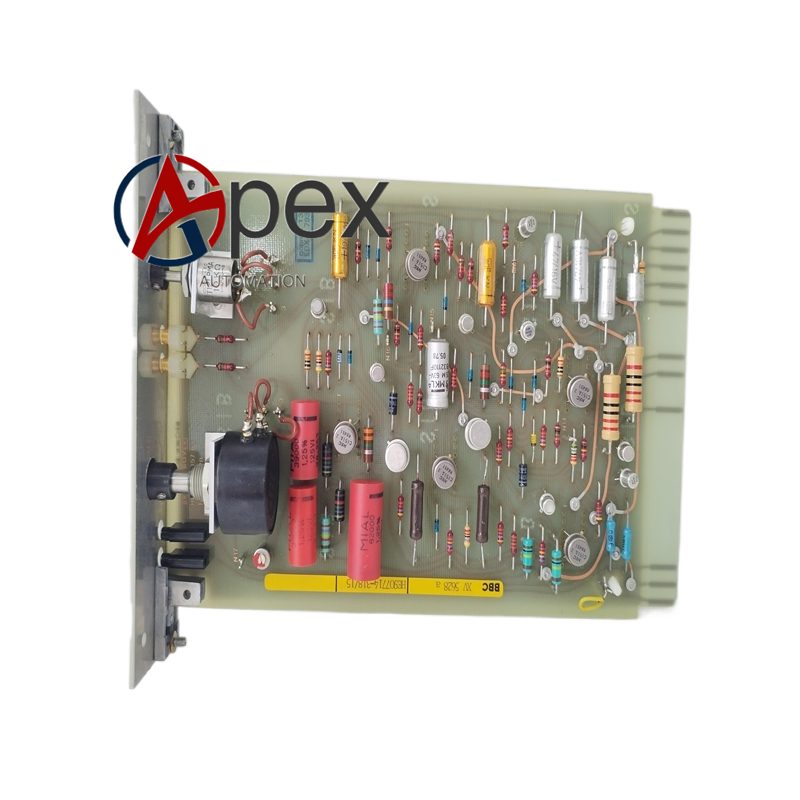

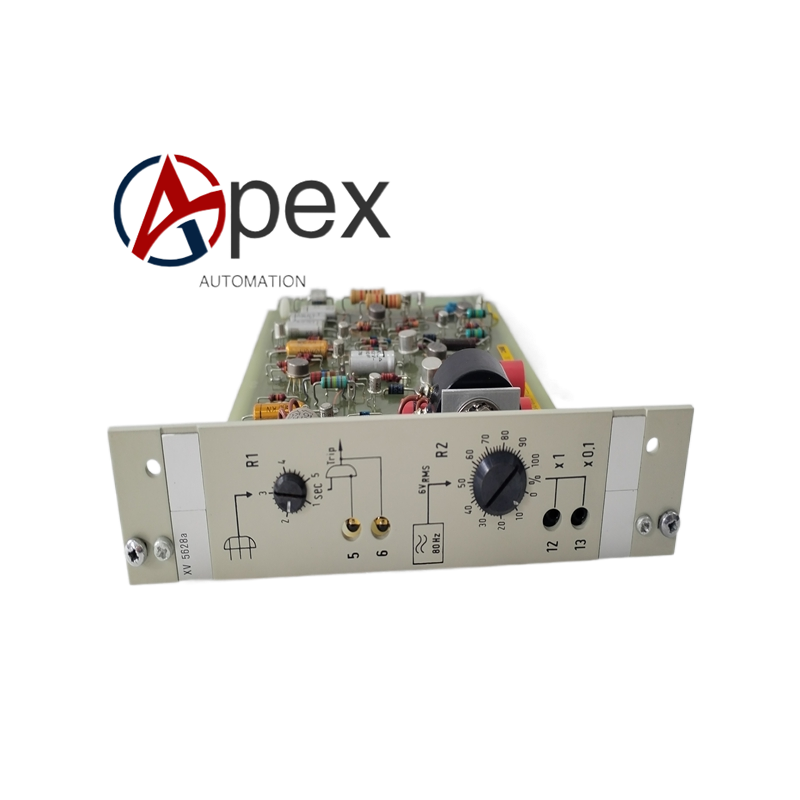

Structural Characteristics Plug‑in circuit board matching cabinet rack slot. Board edge equipped with back‑plane bus connector and field‑signal wiring terminals. Reserved mechanical fixing holes. Weight approximately 0.61 kilogram.
Working Principle Signals from controller back‑plane bus pass through level conversion and optocoupler isolation circuit. Processed signals are distributed to corresponding field peripheral equipment. Feedback signals from field side go through isolation processing and transmit back to main controller. Diagnosis circuit continuously monitors each signal channel status.
Installation Requirements Cut off rack auxiliary power before replacement. Insert XV5628A into target slot and tighten fixing screws. Confirm back‑plane connector is fully locked. Complete field‑side signal wiring.
Usage Notes Adopt anti‑static wrist strap during disassembly and assembly. Do not scratch conformal coating surface. Hot‑plug operation under powered state is strictly forbidden. Check signal wiring integrity during regular maintenance.
