Technical Specifications Multi‑channel high‑precision analog sampling inputs, multi‑group isolated pulse trigger outputs, multiple communication interfaces. Auxiliary working power 24 V DC, typical power consumption 15 W. Operating temperature ‑10 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Protection grade IP20 for cabinet internal deployment.
Functional Features Samples generator terminal voltage, stator current and rotor feedback signals. Executes multiple sets of excitation closed‑loop regulation algorithms. Generates trigger pulses for thyristor power units. Supports mainstream industrial communication protocols to connect upper monitoring and DCS systems. Stores complete fault and event logs. Implements comprehensive hardware and software self‑diagnosis.
Application Scenarios Deployed in thermal power plants, hydropower stations and large industrial self‑power plants for generator excitation control.
Performance Parameters Fast regulation response adapts to variable generator operating conditions. High‑precision sampling guarantees excitation control accuracy. Large‑capacity non‑volatile memory preserves fault records after power loss.
Material Composition Metal‑plastic composite rack‑mount housing. Internal multilayer glass‑fiber epoxy printed circuit assemblies. Industrial‑grade main processor and high‑precision sampling components.

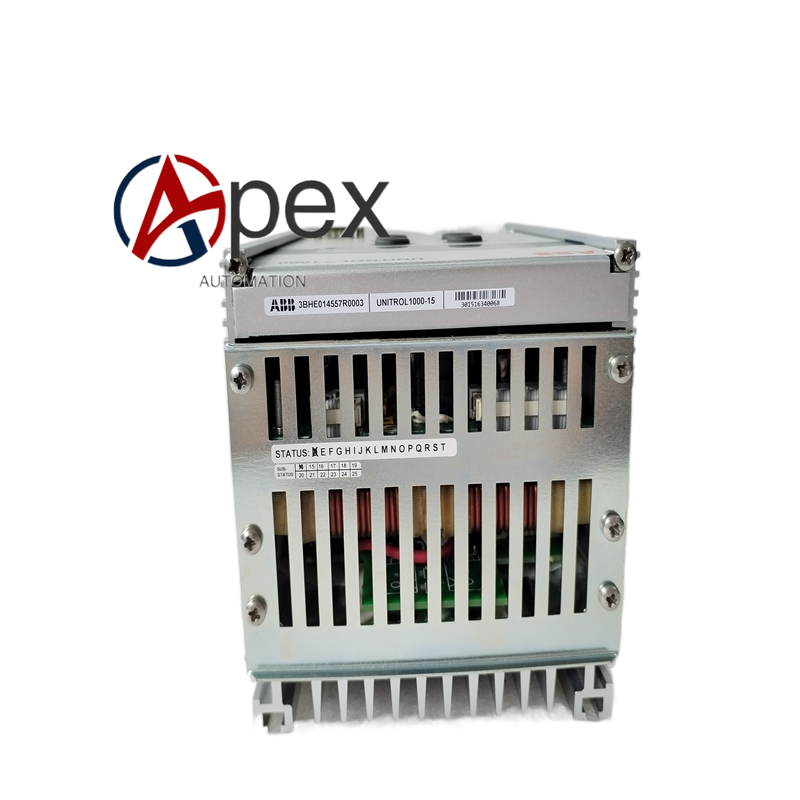

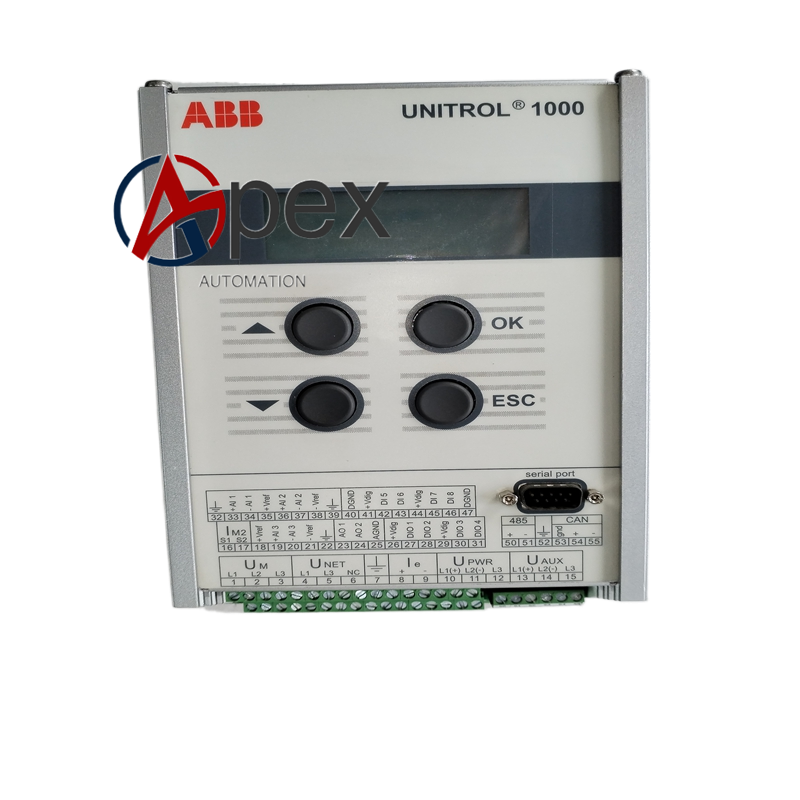

Structural Characteristics Standard 19‑inch rack‑mount structure. Front panel equips LED status indicators, operation buttons and communication connectors. Rear panel arranges power supply, analog sampling, pulse output and signal wiring terminals. Weight approximately 2.20 kilogram.
Working Principle After power‑on, the controller completes hardware self‑check and loads configuration parameters. It continuously collects generator voltage and current feedback signals. Main processor runs excitation regulation algorithms according to preset parameters and outputs trigger pulses to change thyristor conduction angle, realizing closed‑loop adjustment of excitation current.
Installation Requirements Fix UNITROL1000‑15 to standard 19‑inch cabinet rack and tighten mounting screws. Complete auxiliary power, analog sampling, pulse output and communication wiring strictly following engineering drawings.
Usage Notes Maintain good cabinet ventilation and heat dissipation conditions. Back‑up full excitation configuration parameters before hardware replacement. Inspect terminal tightening torque during regular overhaul.
