Technical Specifications Multi‑channel isolated digital input and output, auxiliary signal interface. Auxiliary power supplied by system rack, typical power consumption 6.2 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated surface, channel isolation voltage 1500 V AC.
Functional Features Collects external equipment status signals and perform galvanic isolation. Forwards control commands from local unit to external devices. On‑board LED indicators display channel running status. Built‑in hardware self‑diagnosis function. Conformal coating improves moisture‑proof and dust‑proof performance.
Application Scenarios Applied for industrial automation control cabinets and partial excitation auxiliary control loops. Used for equipment overhaul and spare‑part replacement.
Performance Parameters Stable signal transmission under long‑term cabinet operation. Isolation circuit suppresses external electromagnetic interference. Self‑diagnosis function rapidly captures board‑level circuit faults.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal conditioning chip, optocoupler isolation assemblies. Conformal protective coating. Multi‑pin back‑plane plug‑in connectors. Screw‑type signal terminals.

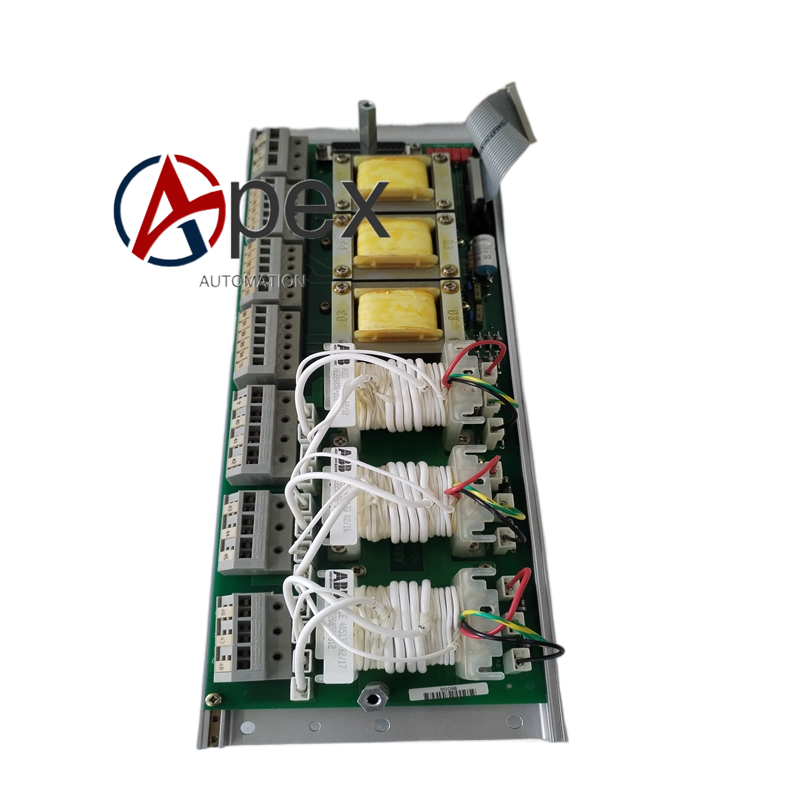

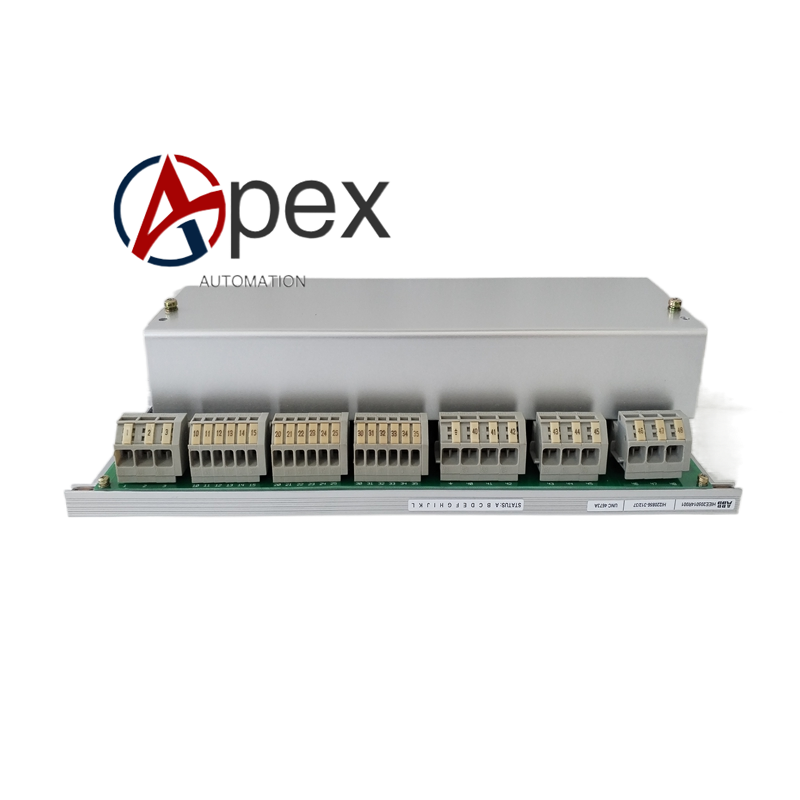

Structural Characteristics Plug‑in circuit board structure matching cabinet internal slot. Board edge equipped with back‑plane connector and multi‑channel signal terminals. Reserved mechanical fixing holes. Weight approximately 0.58 kilogram.
Working Principle After power‑on, UNC4673A completes hardware self‑check. External status signals enter through terminals, pass conditioning‑isolation circuit and transmit to local control unit. Control commands from local unit pass back‑plane connector to this board, after isolation and drive processing, output to external equipment. Diagnosis circuit monitors hardware working state continuously.
Installation Requirements Cut off rack auxiliary power before replacement. Insert UNC4673A into designated slot and tighten fixing screws. Ensure connectors are fully locked. Restore power supply and complete signal channel function test.
Usage Notes Implement anti‑static measures during handling. Avoid scratching conformal coating surface. Forbid hot‑plug under powered condition. Inspect terminal tightening status during regular maintenance.
