Technical Specifications Multi‑channel isolated digital input and relay drive output. Auxiliary power supplied by system rack, typical power consumption 6.9 W. Operating temperature ‑10 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated surface, signal channel isolation voltage 2000 V AC.
Functional Features Collects and isolates multi‑group external equipment status signals. Outputs multi‑channel relay control commands for field devices. On‑board LED displays real‑time channel input‑output status. Built‑in hardware self‑diagnosis function. Conformal coating enhances anti‑moisture and anti‑dust capability.
Application Scenarios Internal spare‑part component for ABB generator excitation system and industrial large‑power drive equipment. Used for equipment overhaul and spare‑part replacement in power plant and heavy‑industry automation site.
Performance Parameters Each channel keeps stable signal transmission performance. Isolation circuit suppresses electromagnetic interference from field secondary loop. LED indicators give clear visual prompt for channel fault.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal conditioning chip, optocoupler isolation assemblies and relay drive components. Conformal protective coating layer. Multi‑pin back‑plane plug‑in connectors. Screw‑type signal wiring terminals.

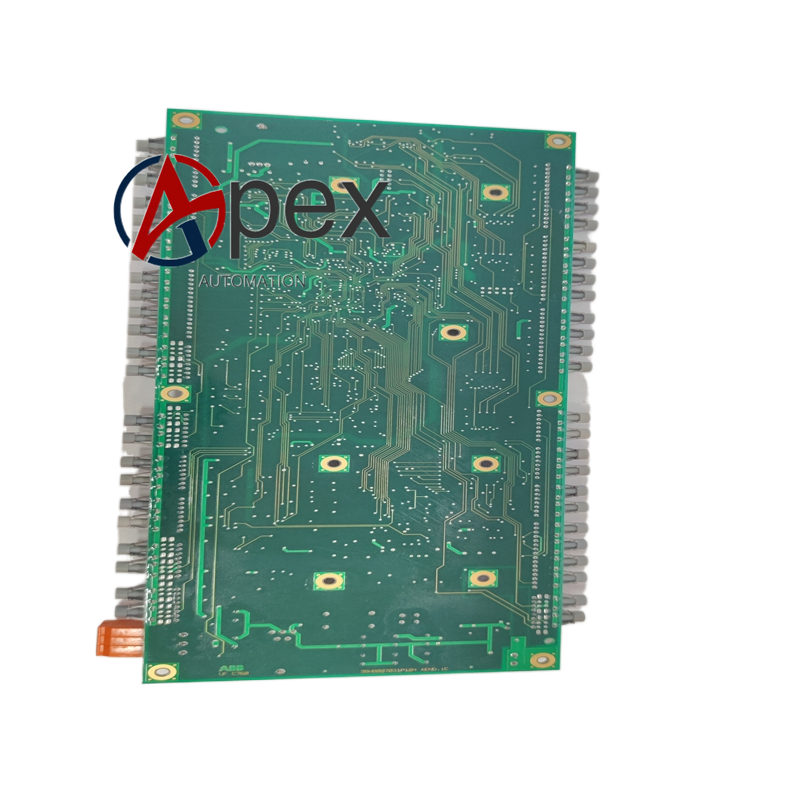

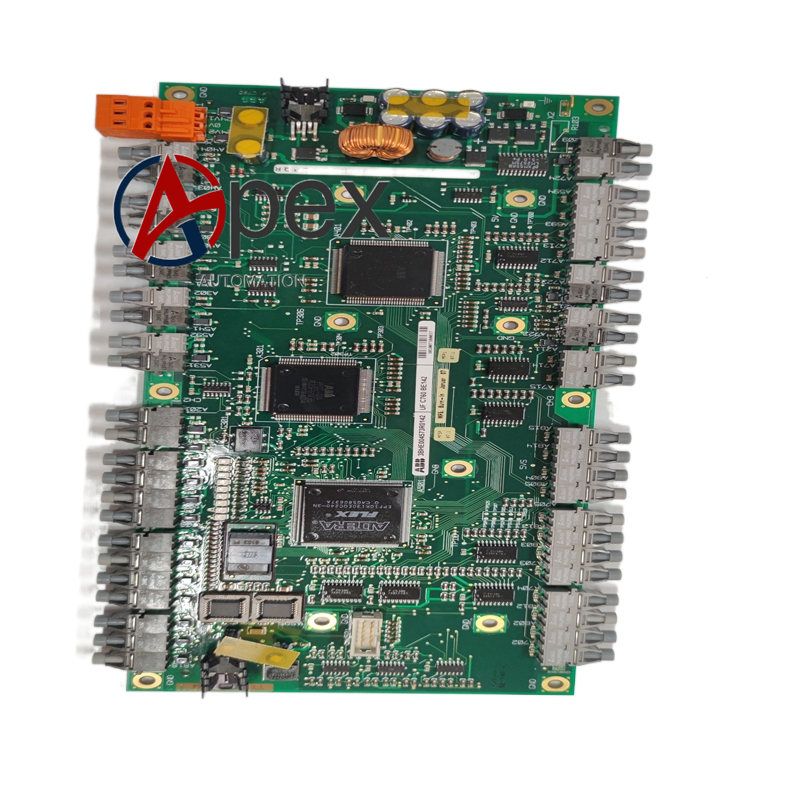

Structural Characteristics Plug‑in circuit board matched with cabinet internal slot. Board edge fitted with back‑plane connector and multi‑channel signal terminals. Reserved mechanical fixing holes. Weight approximately 0.68 kilogram.
Working Principle Main‑controller control command passes through back‑plane connector to this board. After isolation and drive processing, relay contact outputs control signal to external secondary‑loop devices.
Installation Requirements Cut off rack auxiliary power supply completely before replacement. Insert UFC760BE142 board into target slot and tighten fixing screws. Ensure connectors are fully locked. Restore power‑supply, observe on‑board LED status and execute whole‑equipment function test.
Usage Notes Implement anti‑static measures during handling. Do not scratch conformal coating surface. Prohibit plug‑and‑unplug under powered condition. Inspect connector contact and terminal fastening condition in regular overhaul work.
