Technical Specifications Multi‑channel isolated digital input and relay output channels. Auxiliary power supplied by system rack, typical power consumption 6.8 W. Operating temperature ‑10 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated circuit board, isolation voltage 2000 V AC between field loop and internal logic circuit.
Functional Features Isolates and processes multi‑group external equipment status signals. Provides multi‑channel relay contact output for field device control. On‑board LED indicators display real‑time channel working status. Built‑in hardware self‑diagnosis function detects on‑board circuit faults. Conformal coating improves moisture‑proof and dust‑proof performance under industrial cabinet environment.
Application Scenarios Applied in power plant generator excitation systems and large‑scale industrial drive devices. Used for equipment overhaul, on‑site maintenance and spare‑part replacement.
Performance Parameters Each channel maintains stable signal transmission capability under long‑term continuous operation.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal conditioning chips, optocoupler isolation assemblies and relay drive components. Conformal protective coating layer.

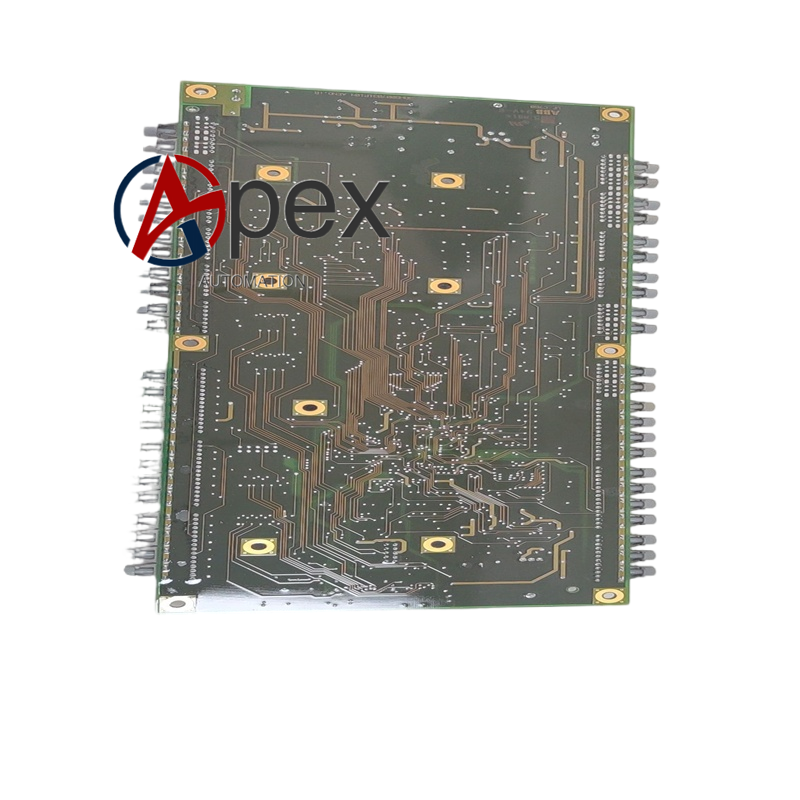

Structural Characteristics Standard plug‑in circuit board matching cabinet inner slot. Board edge is equipped with back‑plane connector and multi‑channel signal terminals. Reserved mechanical fixing holes.
Working Principle Control commands from main controller are transmitted through back‑plane connector. After isolation and drive processing, relay contacts output control signals to external secondary‑loop devices. External equipment status signals access the board via terminals, go through conditioning and isolation circuit, and feed back status information to main control unit.
Installation Requirements Cut off all rack auxiliary power before replacement. Insert UFC760BE1041 into designated slot and tighten fixing screws. Confirm connectors are fully engaged and locked. Restore power supply, inspect LED channel status and complete full‑system function verification test.
