Technical Specifications Fixed cable length 6 meters. Multi‑core shielded twisted‑pair internal conductors. Operating temperature ‑20 ℃ to +70 ℃, storage temperature ‑40 ℃ to +85 ℃. Outer sheath flame‑retardant property meets industrial standard. Equipped with dedicated plug‑in connectors at both ends.
Functional Features Provides reliable signal interconnection between matched ABB modules and termination bases. Integrated shielding structure restrains electromagnetic interference. Pre‑fabricated connectors reduce on‑site wiring error. Supports quick plug‑and‑replace operation.
Application Scenarios Used for internal cabinet signal connection of ABB DCS and S800 I/O system. Applied for new project construction, cabinet modification and spare‑part replacement.
Performance Parameters Low signal attenuation for control‑level signal transmission. Shielding layer effectively suppresses external electromagnetic interference. Connector maintains stable contact performance under cabinet vibration environment.
Material Composition Tinned copper twisted‑pair conductors. Polyethylene insulation layer. Overall copper‑braided shielding net. Flame‑retardant PVC outer sheath. Molded plastic housing for plug‑in connectors.

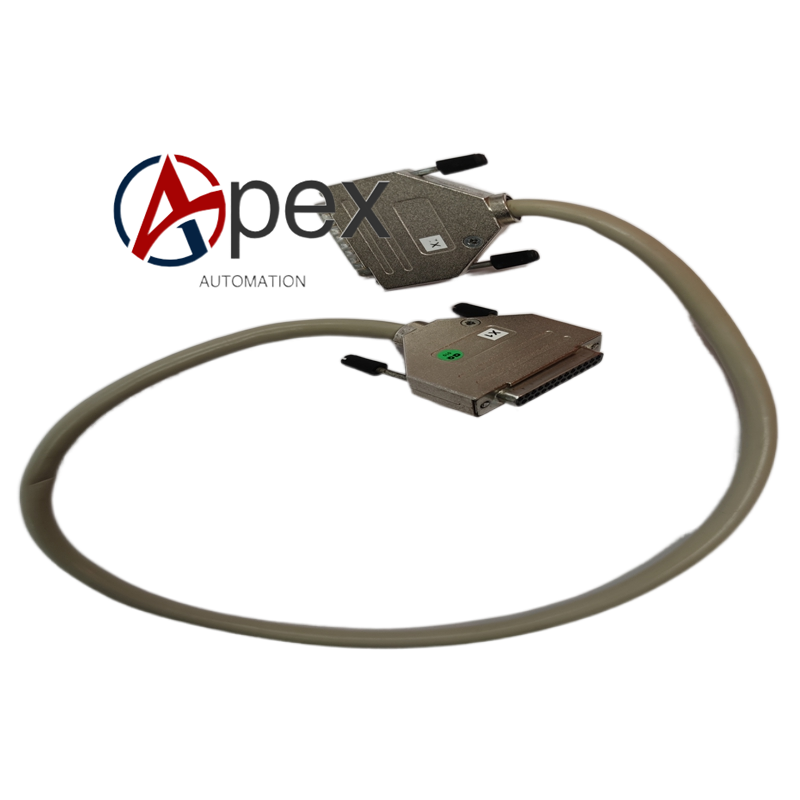

Structural Characteristics Finished flexible cable assembly. Both ends are fitted with dedicated molded plug‑in connectors matched with ABB module interfaces. Cable length 6 meters. Weight approximately 0.33 kilogram.
Working Principle Process and communication signals are transmitted through internal twisted‑pair conductors. Overall shielding layer diverts external interference noise to cabinet grounding bar. Dedicated connectors guarantee accurate signal mapping between connected devices.
Installation Requirements Route cable inside control cabinet, avoid binding together with high‑power power cables. Insert both‑end connectors fully into target module interfaces. Fix cable with cable tie to prevent excessive pulling force on connectors. Connect shielding ground terminal to cabinet protective grounding bar.
Usage Notes Do not sharply bend or trample cable body. Avoid excessive tensile force on connectors. Do not cut or modify pre‑fabricated connectors. Inspect connector contact condition during regular equipment maintenance.
