Technical Specifications Multi‑channel high‑speed serial communication with galvanic isolation. Auxiliary power supply 24 V DC. Typical power consumption 4.1 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Module surface IP20. Meets ABB serial interface technical specification.
Functional Features Realizes high‑speed serial data transmission between control units. Provides galvanic isolation for serial communication channels. Front‑panel LED reflects communication link and fault status. Supports data interaction through rack back‑plane bus. Built‑in communication error diagnosis function.
Application Scenarios Used for high‑speed data interconnection among multiple controllers in large‑scale process control system. Applied for industrial equipment interlocking data transmission and spare‑part replacement.
Performance Parameters Serial data transmission maintains high‑speed and stable performance. Isolation circuit resists external electromagnetic interference. Error diagnosis captures communication link abnormality. LED gives intuitive running‑state feedback.

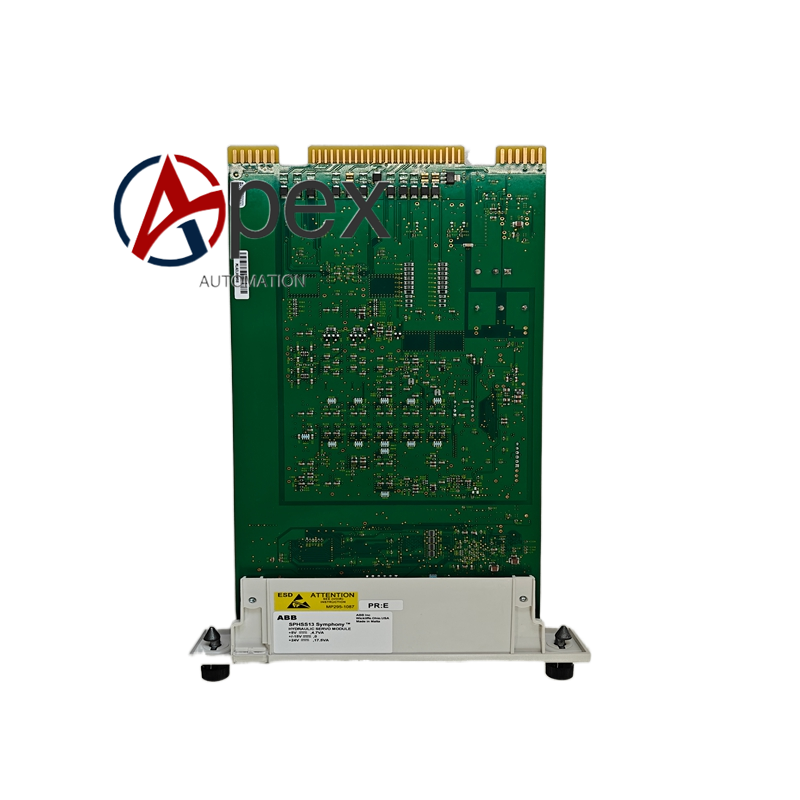

Material Composition Glass‑fiber epoxy printed circuit board. Serial communication processing chip, isolation drive components. Reinforced plastic module housing. Screw‑type communication wiring terminals. Copper‑alloy back‑plane plug‑in contact pieces.

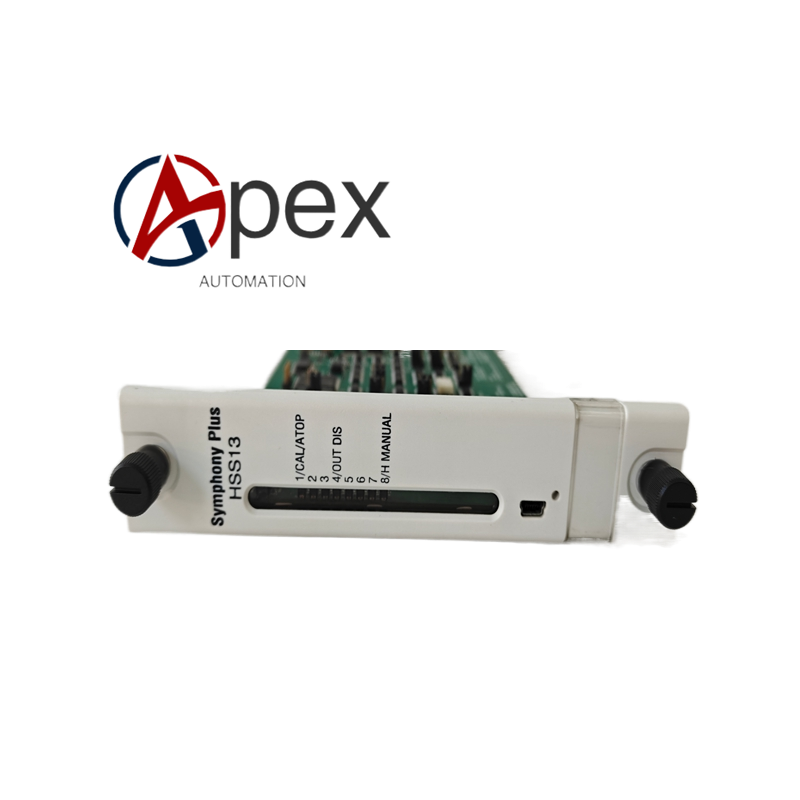

Structural Characteristics Rack‑mount plug‑in module structure. Front panel arranges LED indicators for communication status. Rear side connects rack back‑plane bus. Module width 25 mm, height 130 mm, depth 120 mm. Weight approximately 0.43 kilogram.
Working Principle After power‑on, module completes hardware self‑check and serial port initialization. It exchanges data with local controller via back‑plane bus. Serial data passes isolation and drive circuit to communicate with external target unit.
Installation Requirements Insert module into designated rack slot and tighten locking screw. Connect 24 V DC auxiliary power supply. Complete serial communication cable wiring according to engineering drawing.
Usage Notes Anti‑static protection shall be adopted during handling. Hot‑swap under powered condition is forbidden. Use shielding communication cable for long‑distance transmission. Periodically check terminal tightening condition. Avoid strong electromagnetic field interference environment.
