Technical Specifications Multi‑channel isolated digital output, 24 V DC output level. Auxiliary power supply 24 V DC. Typical power consumption 4.3 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Module surface IP20. Complies with ABB industrial output module specification.
Functional Features Receives control commands from controller via back‑plane bus. Outputs isolated digital control signal to field equipment. Front‑panel LED reflects each channel output status. Built‑in over‑current protection for output channels. Supports hardware channel fault diagnosis.
Application Scenarios Used for driving field solenoid valves, intermediate relays and status indicators in chemical, power and metallurgy process control. Applied for project construction and spare‑part replacement.
Performance Parameters Output channel responds rapidly to control instruction. Over‑current protection acts quickly under load short‑circuit condition. LED provides real‑time output status feedback. Diagnosis function captures output loop fault.

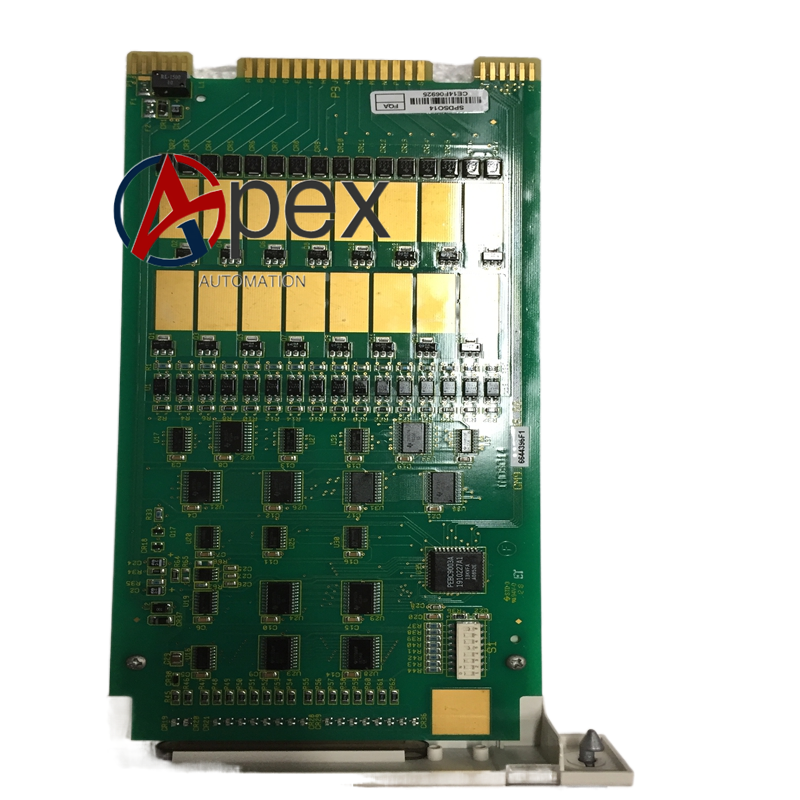

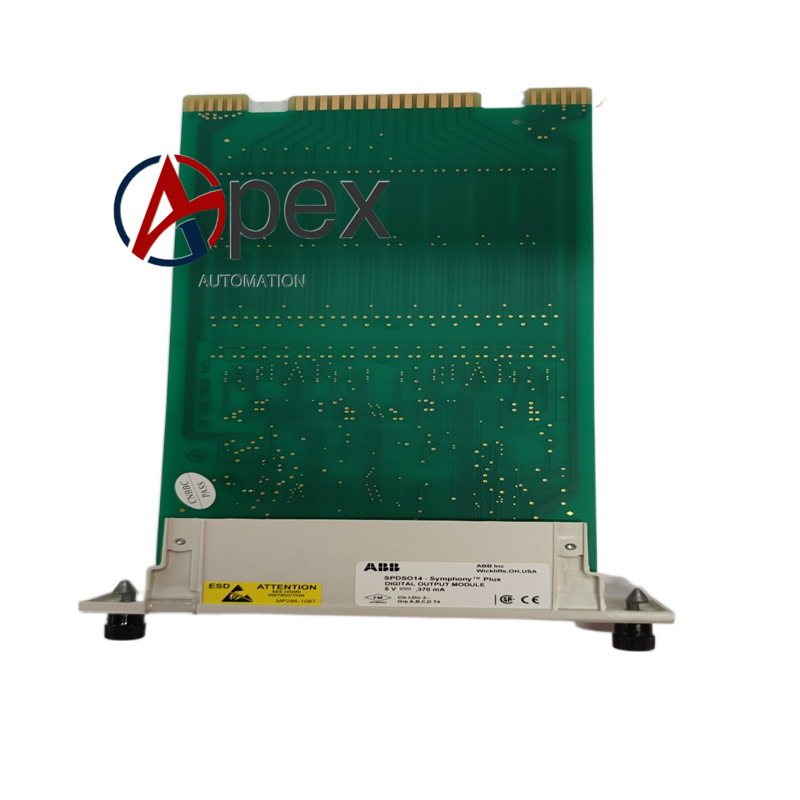

Material Composition Multilayer glass‑fiber epoxy printed circuit board. Output drive chip, isolation and protection components. Reinforced plastic module housing. Screw‑type field output terminals. Copper‑alloy back‑plane plug‑in contact pieces.

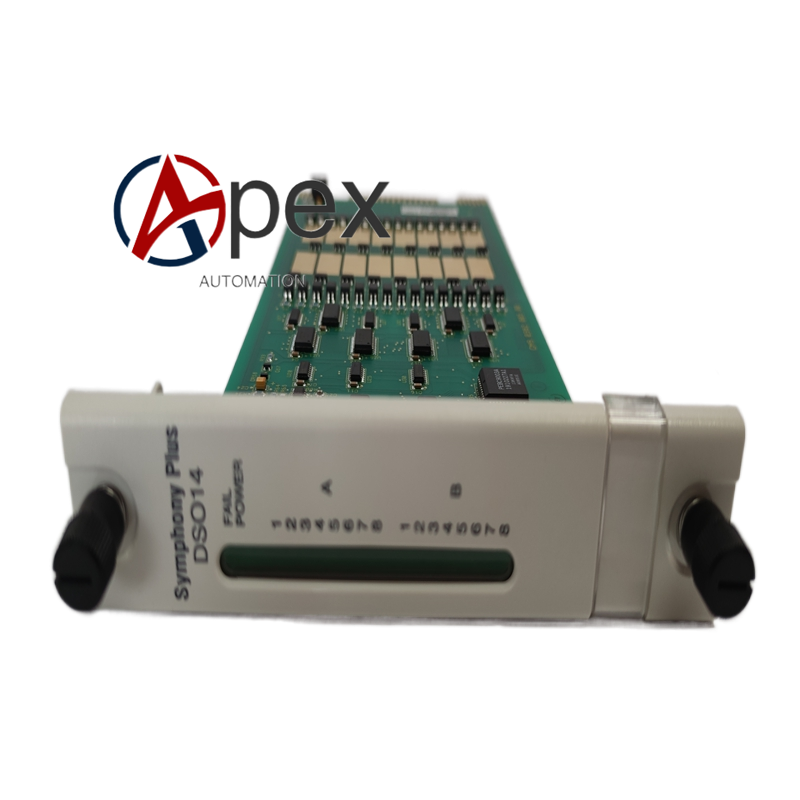

Structural Characteristics Rack‑mount plug‑in module structure. Front panel is equipped with LED indicators for each output channel. Rear side connects rack back‑plane bus. Module width 25 mm, height 130 mm, depth 120 mm.
Working Principle After power‑on, module completes hardware self‑check. Control instruction from controller is received through back‑plane bus. Internal drive circuit converts logic command into field‑side 24 V DC output signal. Front‑panel LED synchronously reflects output channel state.
Installation Requirements Insert module into designated rack slot and tighten locking screw. Connect 24 V DC auxiliary power supply. Complete field actuator wiring strictly according to engineering drawing. Ensure cabinet protective grounding.
Usage Notes Adopt anti‑static protection during handling. Hot‑swap under powered condition is forbidden. Do not exceed rated load capacity of each output channel. Periodically check terminal tightening condition.
