Technical Specifications Multi‑channel isolated digital input, rated input 24 V DC. Auxiliary power supply 24 V DC. Typical power consumption 3.6 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Module surface IP20. Meets ABB I/O module industrial standards.
Functional Features Acquires field switch status signal. Provides galvanic isolation between field circuit and control‑side circuit. Front‑panel LED displays each channel on‑off status. Supports back‑plane bus data transmission. Built‑in hardware channel diagnosis function.
Application Scenarios Used for collecting field valve position, switch and equipment status signal in chemical, energy and water‑treatment industries. Applied for new project construction and spare‑part replacement.
Performance Parameters Signal response maintains millisecond‑level speed. Isolation performance resists industrial electromagnetic interference. LED gives real‑time channel status feedback. Diagnosis function captures channel circuit fault.

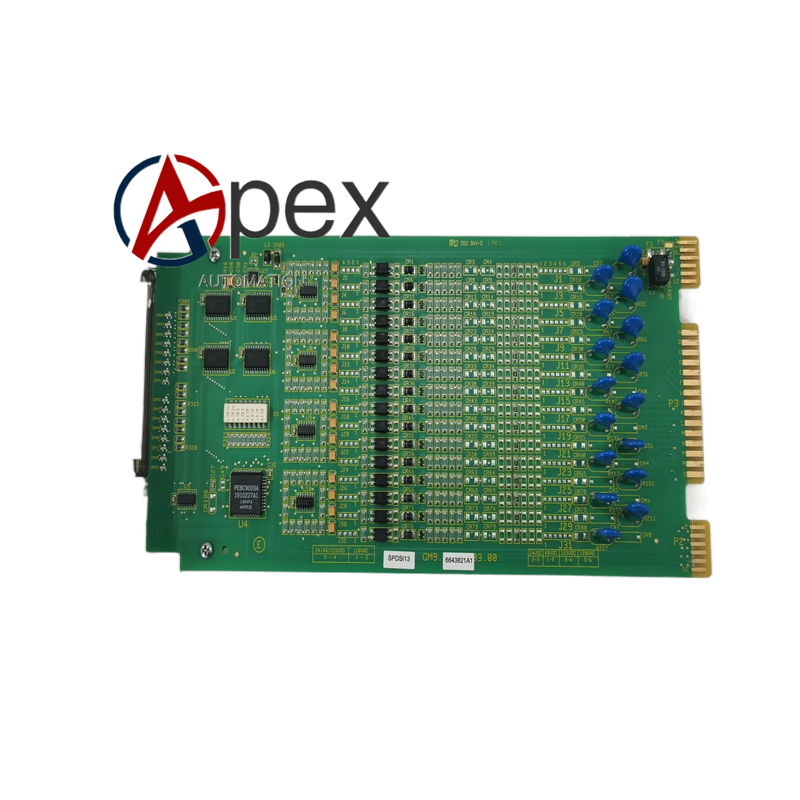

Material Composition Glass‑fiber epoxy printed circuit board. Optocoupler isolation components, signal conditioning circuit. Reinforced plastic module housing. Screw‑type field wiring terminals. Copper‑alloy back‑plane plug‑in contact pieces.

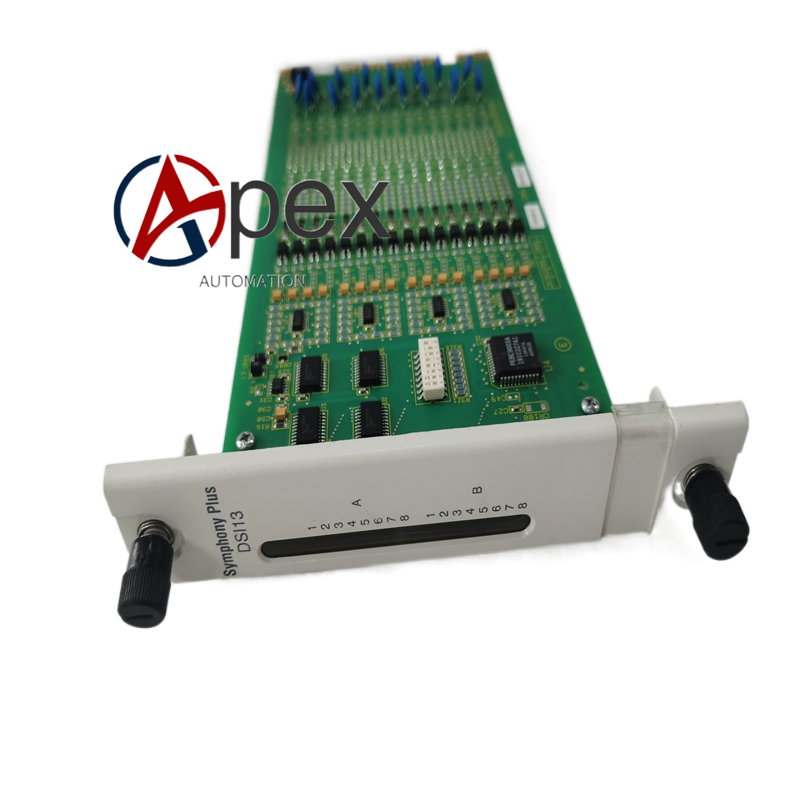

Structural Characteristics Standard rack‑mount plug‑in module structure. Front panel arranges channel status LED indicators. Rear side connects rack back‑plane bus. Module width 25 mm, height 130 mm, depth 120 mm. Weight approximately 0.40 kilogram.
Working Principle After power‑on, module completes hardware self‑check. Field digital signal enters module and passes optocoupler isolation circuit. Signal is converted into internal logic level.
Installation Requirements Insert module into designated rack slot and lock fastening screw. Connect 24 V DC auxiliary power supply. Complete field digital signal wiring according to engineering drawing. Guarantee cabinet protective grounding. Verify channel LED indication after power‑on.
Usage Notes Take anti‑static measures during handling. Hot‑swap under powered condition is forbidden. Prevent over‑voltage surge from entering input channel. Periodically check terminal tightening condition. Avoid dust and corrosive gas accumulation.
