Technical Specifications Multi‑channel analog and digital signal processing, pulse trigger output. Auxiliary power supply 24 V DC. Typical power consumption 7.2 W. Operating temperature 0 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated surface protection. Matches ABB DC drive system technical specification.
Functional Features Receives speed setting signal and motor feedback signal. Executes DC drive closed‑loop control algorithm. Generates trigger pulse for thyristor power unit. Realizes drive fault diagnosis and status feedback. Conformal coating enhances environmental adaptability under harsh site conditions.
Application Scenarios Used for ABB DC governor equipment in metallurgy, papermaking and printing industry. Applied for equipment overhaul and spare‑part replacement in corrosive and humid industrial environment.
Performance Parameters Control loop response satisfies DC motor speed regulation requirement. Trigger pulse output keeps stable. Built‑in diagnosis function detects main circuit fault.
Material Composition Multi‑layer glass‑fiber epoxy printed circuit board. Main control processing chip, pulse drive circuit, signal conditioning components. Conformal protective coating layer.

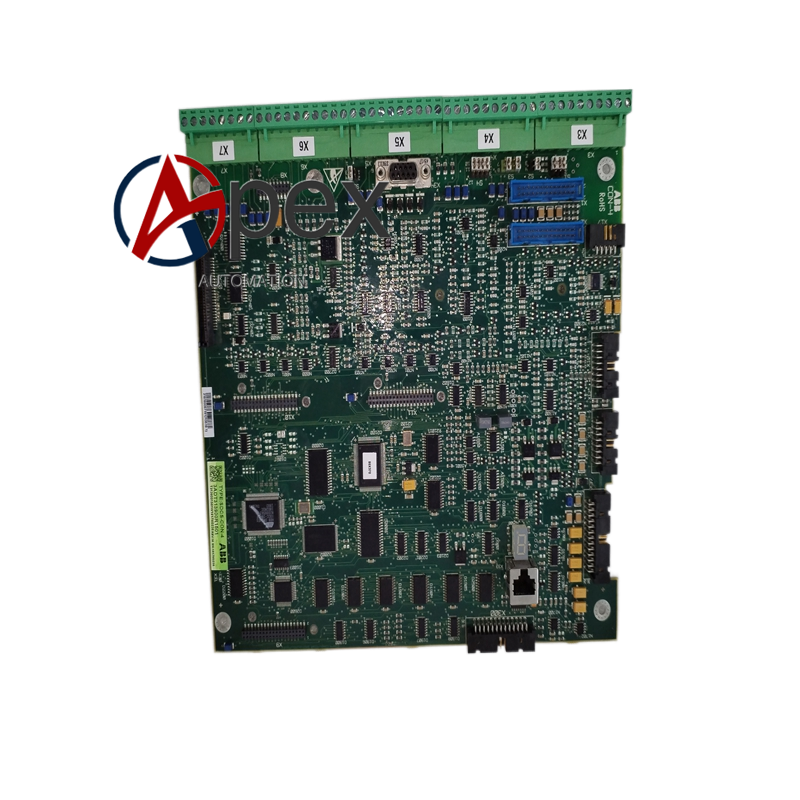

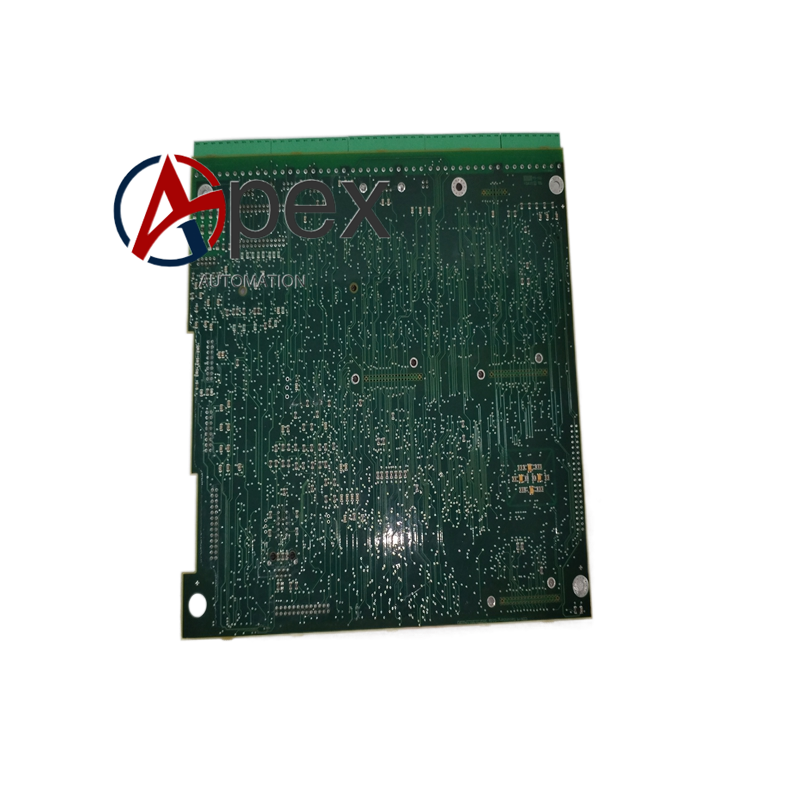

Structural Characteristics Flat embedded circuit board structure. Board edge is equipped with multiple signal connectors. Overall dimension matches DC drive cabinet internal assembly space.
Working Principle After power‑on, board completes hardware self‑check. It receives speed reference signal and motor armature‑current and speed feedback signal. Internal control unit calculates and outputs trigger pulse to thyristor unit to realize closed‑loop speed regulation of DC motor.
Installation Requirements Fix circuit board at designated position inside drive cabinet. Tighten fixing screws. Ensure each connector is fully inserted. Complete signal wiring according to drive schematic drawing. Guarantee cabinet reliable protective grounding. Perform function test after power‑on.
Usage Notes Wear anti‑static wrist strap during disassembly and assembly. Cut off main power supply of drive device before operation. Do not scratch conformal coating surface. Periodically check connector fastening condition. Avoid mechanical impact on circuit board.
