Technical Specifications Industrial processor core, system bus interface. Auxiliary power supply 24 V DC. Typical power consumption 5.4 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Module surface IP20. Complies with early ABB control system technical specification.
Functional Features Executes system control logic program. Realizes data interaction with each I/O module via back‑plane bus. Supports system communication with upper monitoring equipment. Front‑panel LED displays running and fault state. Built‑in hardware self‑diagnosis function.
Application Scenarios Used for old‑generation ABB automation system. Applied for industrial equipment renovation and spare‑part replacement of existing on‑site units.
Performance Parameters Stable cyclic execution of control program. Self‑diagnosis function detects main hardware fault. Bus data transmission keeps reliable. LED status indication feeds back running condition accurately.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Industrial processing chip, bus drive circuit components. Reinforced plastic module housing. Copper alloy back‑plane plug‑in contact pieces.

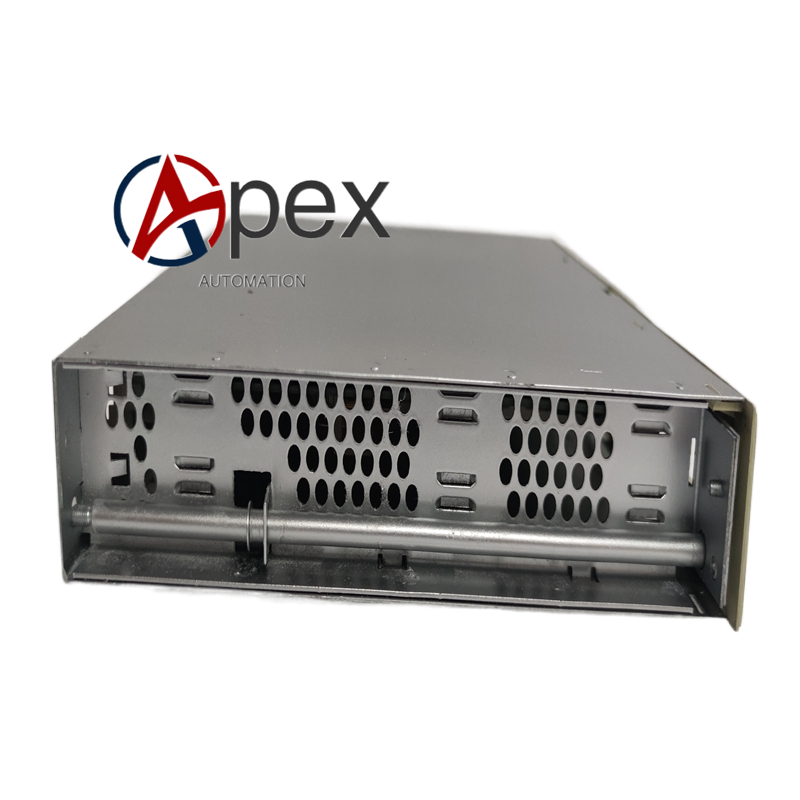

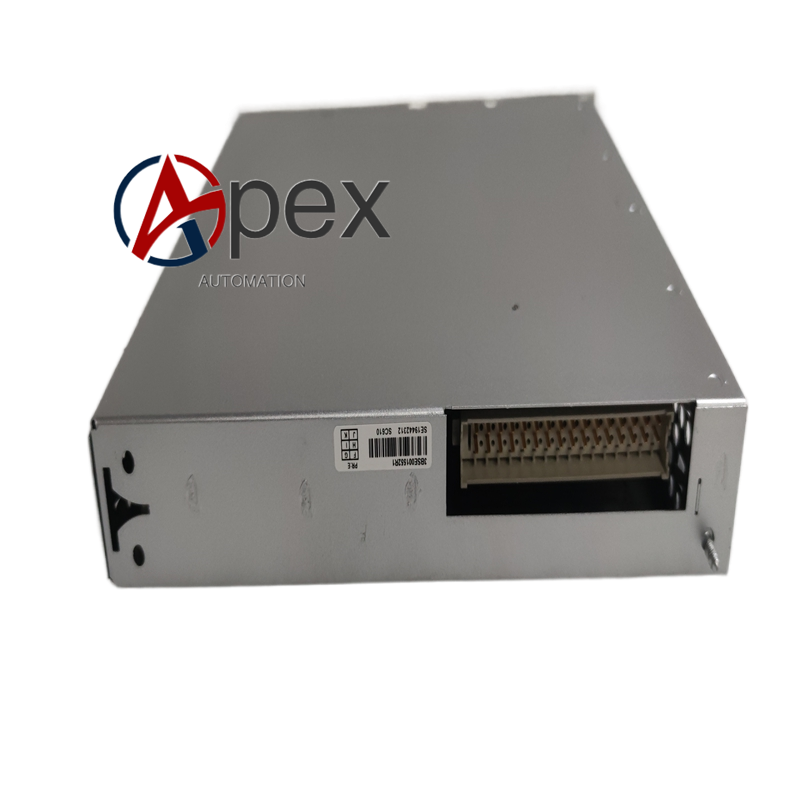

Structural Characteristics Standard rack‑mount plug‑in module structure. Front panel arranges running status LED indicators. Rear side connects rack back‑plane bus. Module width 25 mm, height 130 mm, depth 125 mm. Weight approximately 0.53 kilogram.
Working Principle After power‑on, module completes hardware self‑check and system initialization. Processor circulates to execute control logic program. Collects field signal from I/O modules, outputs control instruction, completes data exchange through system bus. Self‑diagnosis circuit monitors hardware running state.
Installation Requirements Insert module into control rack designated slot and tighten locking screw. Connect 24 V DC auxiliary power supply. Guarantee good contact of back‑plane bus. Ensure cabinet protective grounding. Check LED status after power‑on.
Usage Notes Adopt anti‑static protection during handling. Hot‑swap under powered condition is forbidden. Periodically inspect back‑plane connector contact condition. Avoid dust and corrosive gas environment. Replace aging module according to system maintenance cycle.
