Technical Specifications High‑speed logic processing core, multiple communication interfaces. Auxiliary power supply 24 V DC. Typical power consumption 5.8 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Module surface IP20. Complies with ABB industrial control system specification.
Functional Features Runs complex user control logic algorithm. Realizes high‑speed data exchange with I/O modules via back‑plane bus. Supports multiple industrial communication protocols. Front‑panel LED displays run, stop and fault state. Built‑in comprehensive hardware self‑diagnosis function.
Application Scenarios Applied for medium‑scale process control in chemical, water treatment and energy industry. Serves as core control unit of automation system. Used for new project construction and spare‑part replacement.
Performance Parameters Short logic execution cycle. Self‑diagnosis covers main hardware circuit. Communication data transmission keeps stable. Fault LED gives clear alarm prompt when abnormality occurs.

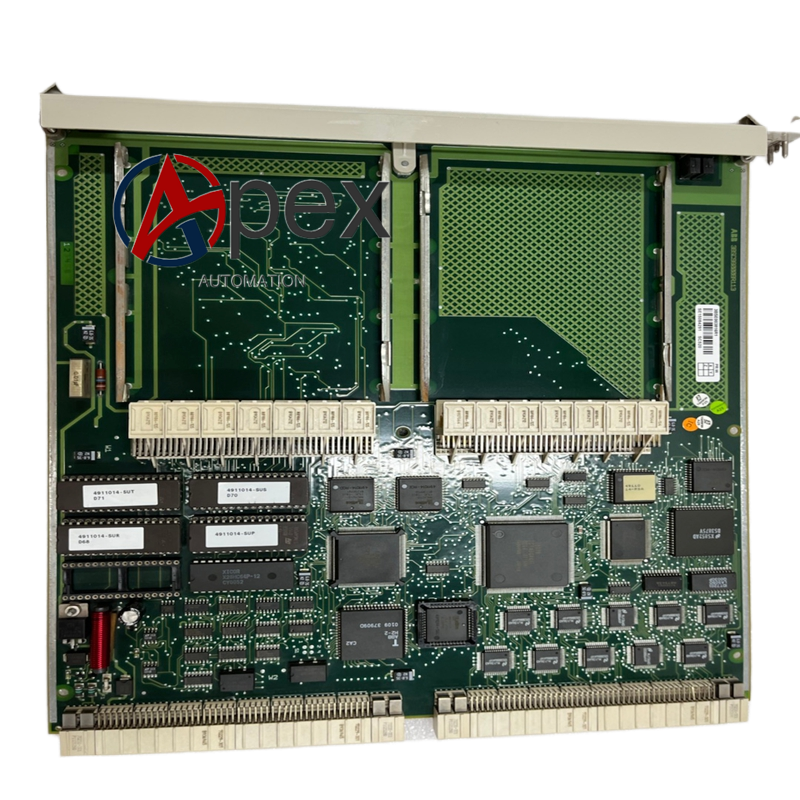

Material Composition Multilayer glass‑fiber epoxy printed circuit board. High‑performance industrial processing chip, communication isolation components. Reinforced plastic module housing. Copper alloy back‑plane plug‑in contact pieces.
Working Principle After power‑on, module completes hardware self‑check and system initialization. Main processing unit circulates to execute user control program. Collects field signal from I/O modules, outputs control instruction, and interacts data with upper monitoring system through communication circuit. Self‑diagnosis circuit monitors hardware running state continuously.
Installation Requirements Insert module into designated rack slot and lock fastening screw. Connect 24 V DC auxiliary power supply. Ensure reliable back‑plane bus contact. Guarantee cabinet protective grounding. Check LED working status after power‑on, download control program.
Usage Notes Take anti‑static measures during module handling. Hot‑swap operation under powered state is forbidden. Program modification follows site production management procedure. Periodically inspect connector contact condition. Prevent dust and corrosive gas erosion.
