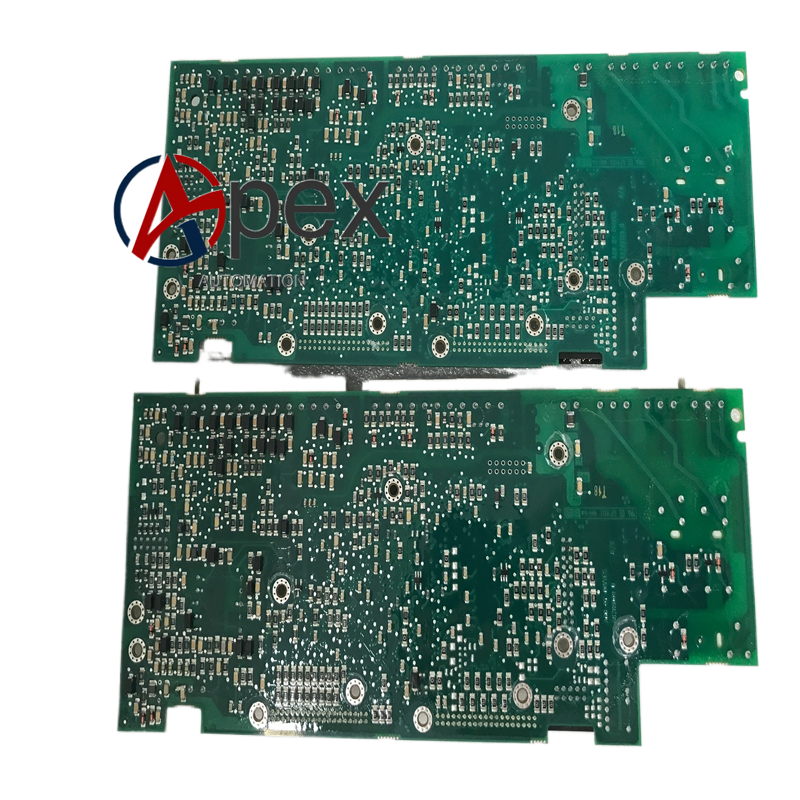

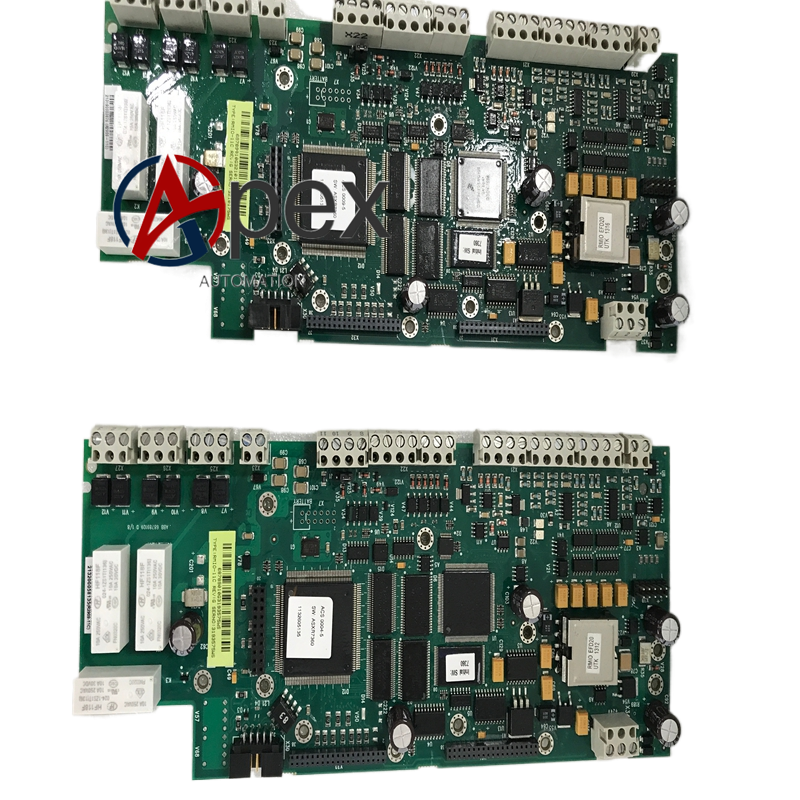

Technical Specifications Multi‑channel digital input, relay digital output, control signal interface. Digital input rated 24 V DC. Relay output contact rating 250 V AC / 2 A. Auxiliary power supply 24 V DC. Typical power consumption 3.8 W. Operating temperature 0 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Board surface protection grade IP20. Complies with CE industrial drive standards.
Functional Features Receives external start‑stop, enable and interlock digital signals. Outputs running, fault and status relay contact signals. Completes signal interaction with main drive control unit. On‑board indicator LEDs reflect channel working status. Built‑in hardware self‑diagnosis detects board internal fault.
Application Scenarios Mounted inside ABB frequency converter cabinet. Applied for industrial variable‑frequency drive system of fan, pump and transmission equipment. Used for signal connection between frequency converter and external PLC or field control cabinet.
Performance Parameters Digital input signal response at millisecond level. Relay output contact mechanical life reaches 1000000 operations. Signal transmission satisfies drive real‑time control requirement. Internal fault gives clear LED indication.
Working Principle After power‑on, board completes hardware self‑check. External digital input signals pass optocoupler isolation and transmit to drive main control unit. Main unit control command is converted by this board and drives relay to act for status output. Each channel working state feeds back through on‑board LED indicators.
Installation Requirements Insert board into designated slot of frequency converter main unit and lock fixing screws. Connect 24 V DC auxiliary power supply within rated range.
Usage Notes Wear anti‑static wrist strap before touching circuit board. Disconnect total power supply before board disassembly and assembly. Periodically check terminal screw tightening torque. Prevent conductive dust and corrosive gas inside cabinet. Avoid over‑load on relay output contacts.
