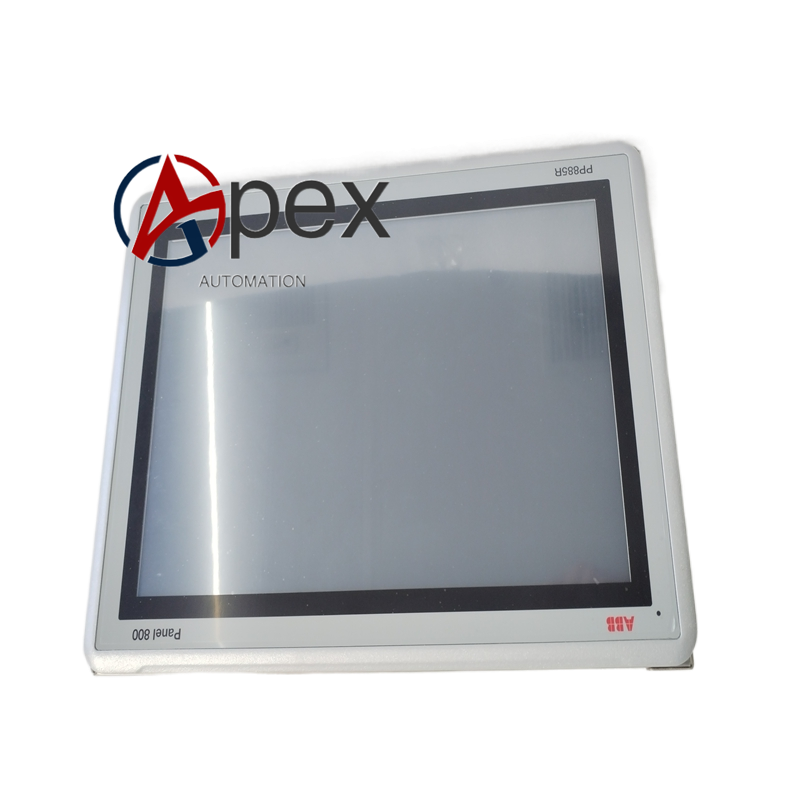

Technical Specifications Equipped with ruggedized reinforced color TFT touch liquid crystal screen. Supports 1280 × 1024 display resolution. Dual‑group redundant independent Ethernet communication ports are integrated. SD‑card slot supports project backup and historical log storage. Nominal power supply 24 V DC, allowable input voltage range 19.2‑30 V DC. Typical power consumption is 26 W. Operating temperature range 0 ℃ to +55 ℃, storage temperature ‑20 ℃ to +70 ℃, non‑condensing relative humidity 5%‑90%. Front‑panel protection grade reaches IP65 for cabinet‑door installation. Enhanced mechanical anti‑vibration performance. Certifications include CE, UL and RoHS compliance.
Functional Features Real‑time displays process flow graphic, analog measurement value and digital equipment status under harsh working condition. Ruggedized touch‑screen unit adapts to vibration‑prone cabinet environment. Supports manual set‑point modification, interlock operation and device control command sending. Realizes alarm window browsing, event record query and historical trend curve display. Supports project configuration backup and restore via SD‑card. Built‑in high‑precision real‑time clock provides time stamp for all alarm and event records. Dual‑group Ethernet ports realize full network redundancy. LED indicators reflect power supply, dual‑network connection and running fault status.
Application Scenarios Embedded on cabinet door of control cabinet under vibration‑prone industrial site such as power plant, heavy‑chemical industry and oil‑gas project. Provides ruggedized local man‑machine monitoring and operation function for ABB DCS automation system. Cooperates with DCS controller to complete process monitoring task under harsh mechanical environment.

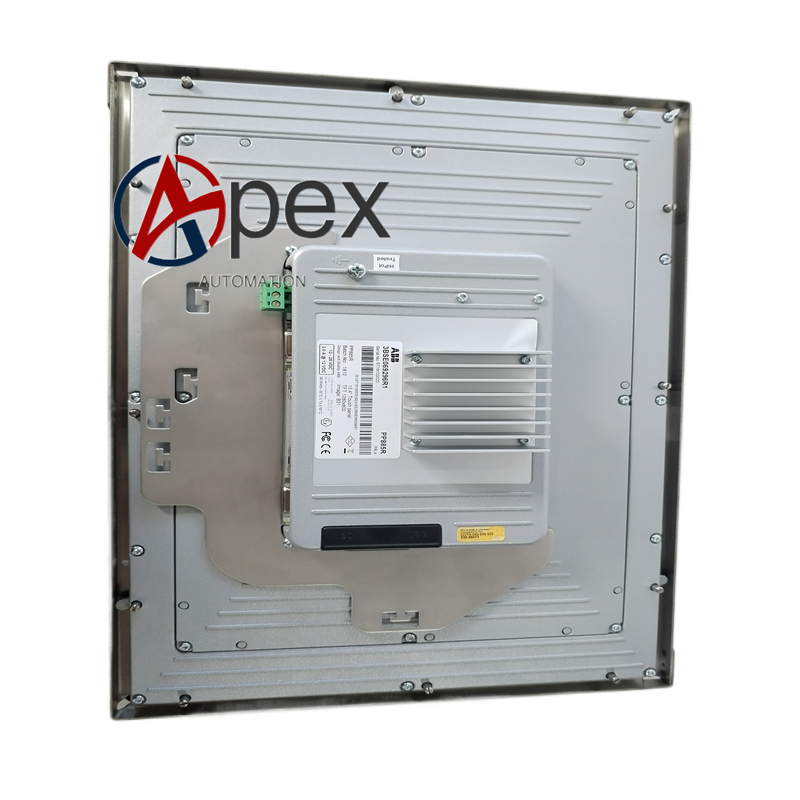

Installation Requirements Process matching mounting opening on control cabinet door, embed PP885R panel into opening, fasten surrounding heavy‑duty anti‑vibration fixing buckles completely. Wire 24 V DC power supply strictly following polarity marking. Connect dual‑group redundant Ethernet communication cables, maintain cable minimum bending radius requirement. Reserve sufficient ventilation clearance at panel rear side for heat dissipation. Download HMI project configuration file through supporting engineering software.
