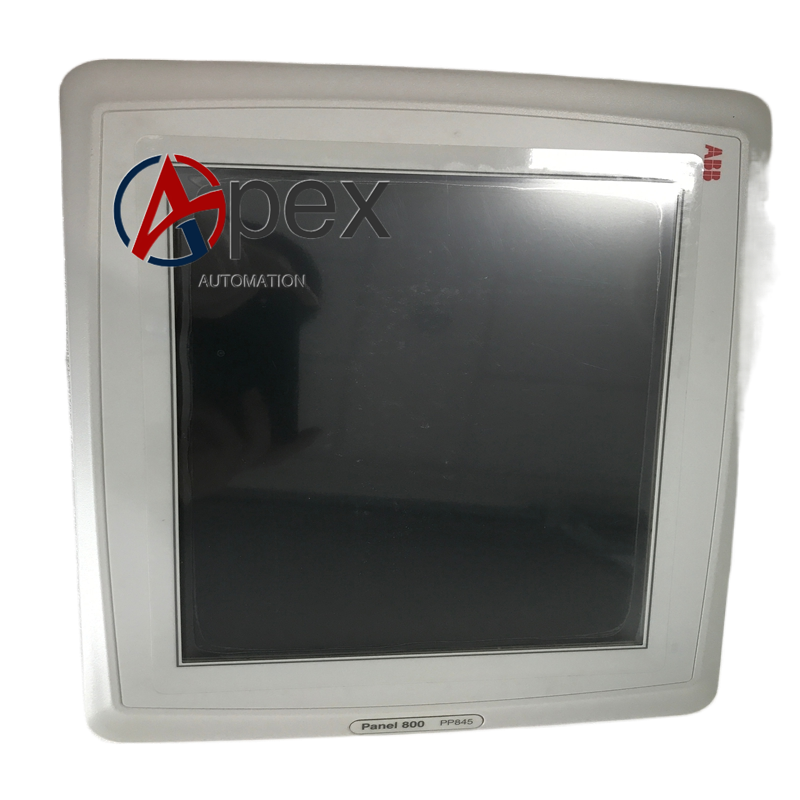

Technical Specifications Equipped with color TFT touch liquid crystal screen. Supports 1280 × 1024 display resolution. Multiple independent Ethernet communication ports are integrated. SD‑card slot supports project backup and historical log storage. Nominal power supply 24 V DC, allowable input voltage range 19.2‑30 V DC. Typical power consumption is 22 W. Operating temperature range 0 ℃ to +55 ℃, storage temperature ‑20 ℃ to +70 ℃, non‑condensing relative humidity 5%‑90%. Front‑panel protection grade reaches IP65 for cabinet‑door installation. Certifications include CE, UL and RoHS compliance.
Functional Features Real‑time displays process flow graphic, analog measurement value and digital equipment status. Touch screen supports manual set‑point modification, interlock operation and device control command sending. Realizes alarm window browsing, event record query and historical trend curve display. Supports project configuration backup and restore via SD‑card. Built‑in high‑precision real‑time clock provides time stamp for all alarm and event records. Multi‑Ethernet ports support redundant network communication. LED indicators reflect power supply, network connection and running fault status.
Application Scenarios Embedded on cabinet door inside control room of power plant, chemical industry, oil‑gas and pulp‑paper industry. Provides local man‑machine monitoring and operation function for ABB DCS automation system. Cooperates with DCS controller to complete on‑site process monitoring task. Applied to medium‑large‑scale continuous‑process industrial automation projects.
Installation Requirements Process matching mounting opening on control cabinet door, embed PP845 panel into opening, fasten surrounding fixing buckles completely. Wire 24 V DC power supply strictly following polarity marking. Connect Ethernet communication cables, maintain cable minimum bending radius requirement. Reserve sufficient ventilation clearance at panel rear side for heat dissipation. Download HMI project configuration file through supporting engineering software. Ensure cabinet protective grounding complies with ABB DCS grounding specification. Insert SD‑card into dedicated slot when project backup or data log function is needed.
