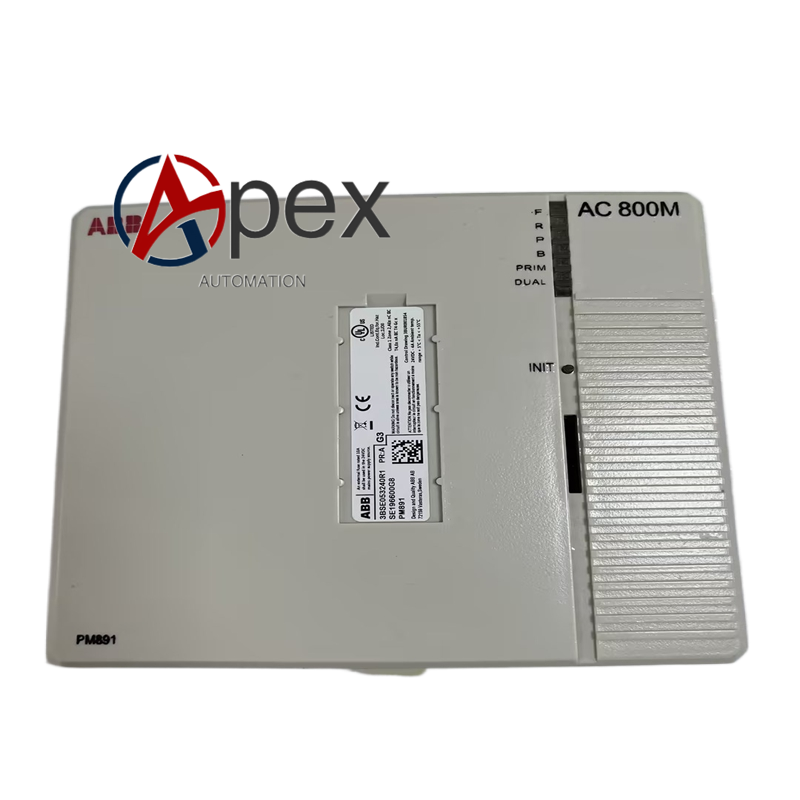

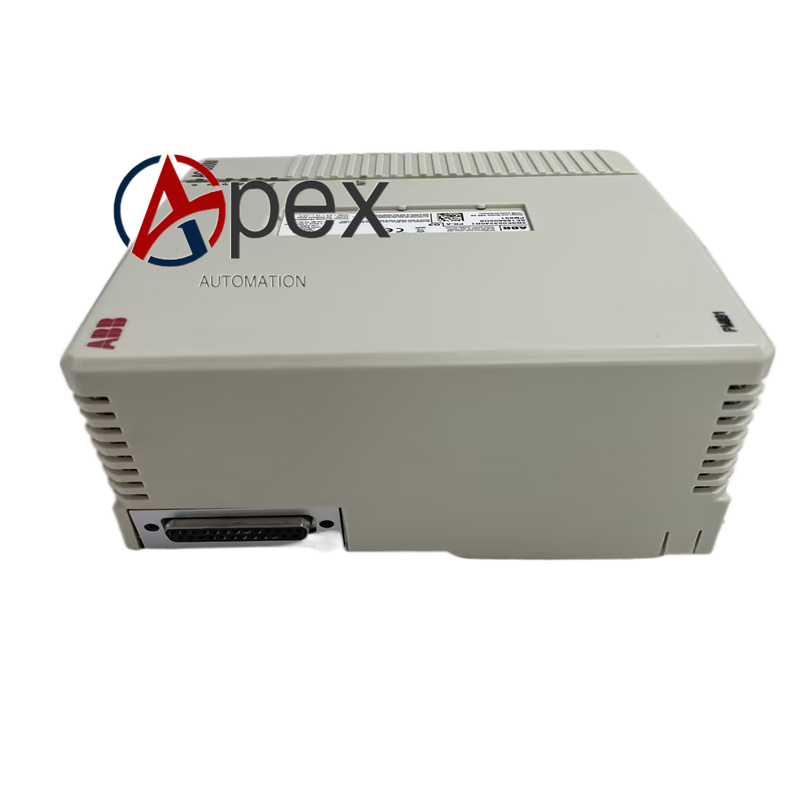

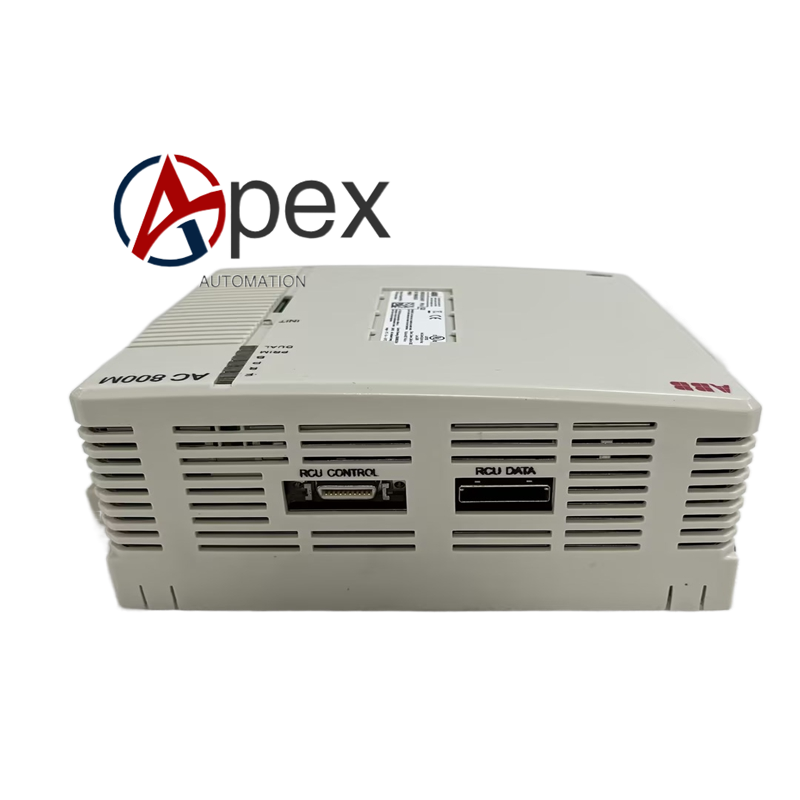

Technical Specifications Advanced 32‑bit RISC high‑performance processor core. RAM capacity is 64 MB with ECC error correction function, flash memory is 32 MB for firmware and application storage. Nominal power supply 24 V DC, allowable input range 19.2‑30 V DC. Typical power consumption 15.5 W. Operating temperature 0 ℃‑60 ℃, non‑condensing relative humidity 5%‑95%. Equipped with dual 10/100 Mbps Ethernet interfaces, ModuleBus, CEX‑Bus expansion bus, redundancy control link and dual redundant power input terminals.
Functional Features Executes full set of IEC61131‑3 standard programming languages for complex heavy‑load process automation. Implements hot‑standby redundancy function when paired with second PM891K01 unit. Enhanced comprehensive hardware self‑diagnosis monitors CPU operation, ECC memory error, embedded auto‑fuse state, power supply status and every communication channel.
Application Scenarios Main latest‑generation high‑performance controller unit for petrochemical, energy and metallurgy modern automation cabinet. Suitable for single heavy‑load controller cabinet and high‑availability redundant controller cabinet. Cooperates with S800 distributed I/O modules for massive‑point field signal acquisition and actuator driving.
Installation Requirements Mount the base plate onto cabinet DIN rail or rack bracket, confirm mechanical locking is fully completed. Connect 24 V DC power to detachable screw terminal block strictly following polarity marking. Install ModuleBus terminator and CEX‑Bus terminator at corresponding slot positions. Slide PM891 CPU module into base plate until latch clicks into locked state.Connect Ethernet cables and redundancy link cable, maintain cable minimum bending radius requirement. Keep sufficient vertical ventilation clearance above and below module for heat dissipation. Download hardware configuration and user application program from Compact Control Builder engineering software. Ensure cabinet protective grounding complies with ABB system grounding specification. No external fuse installation required due to embedded auto‑fuse design.
