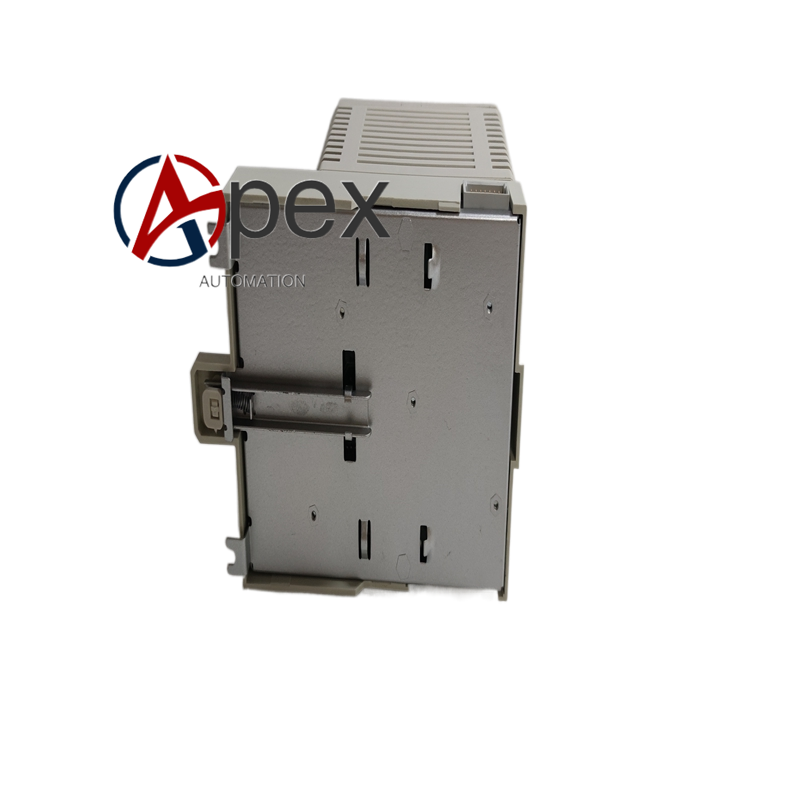

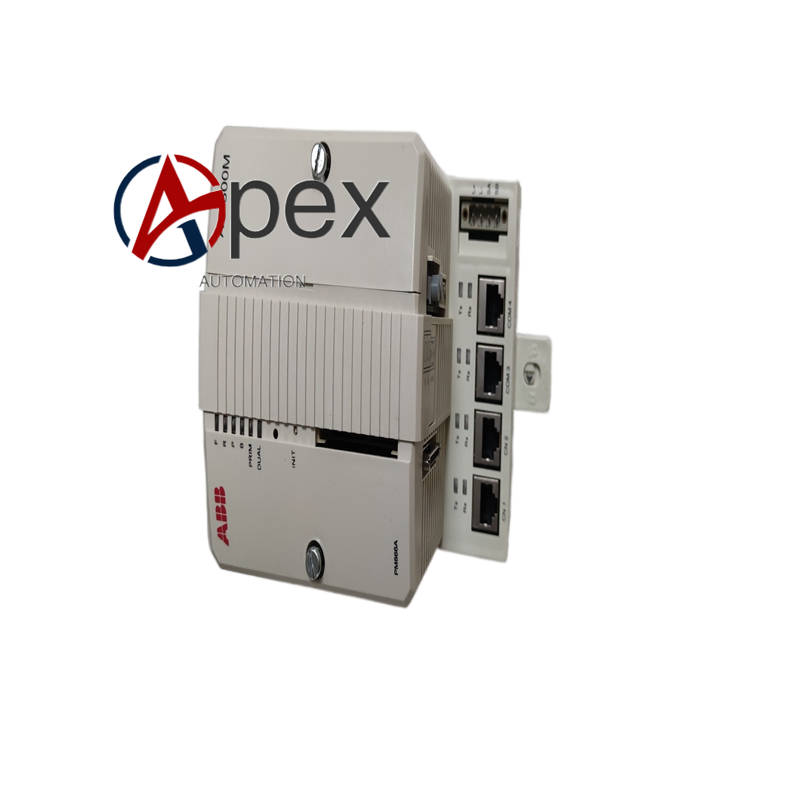

Technical Specifications High‑speed 32‑bit RISC processor runs at 450 MHz clock frequency. RAM capacity is 64 MB with ECC error correction function, flash memory is 16 MB for firmware and application storage. Nominal power supply 24 V DC, allowable input range 19.2‑30 V DC. Typical power consumption 15.8 W. Operating temperature 0 ℃‑60 ℃, non‑condensing relative humidity 5%‑95%. Equipped with dual 10/100 Mbps Ethernet interfaces, ModuleBus, CEX‑Bus expansion bus, redundancy
Functional Features Executes full set of IEC61131‑3 standard programming languages for large‑scale complex process automation. Implements hot‑standby redundancy function when paired with second PM866K01 unit. Comprehensive hardware self‑diagnosis monitors CPU operation, ECC memory error, power supply status and every communication channel. Lithium battery preserves RAM process‑variable data after main power loss. Real‑time clock provides high‑precision time stamp for alarm and event log.
Application Scenarios Main high‑performance controller unit for large‑scale petrochemical plant, metallurgy industry and large‑capacity power‑plant automation cabinet. Suitable for single heavy‑load controller cabinet and high‑availability redundant controller cabinet. Cooperates with S800 distributed I/O modules for massive‑point field signal acquisition and actuator driving.
Installation Requirements Mount the base plate onto cabinet DIN rail or rack bracket, confirm mechanical locking is fully completed. Connect 24 V DC power to detachable screw terminal block strictly following polarity marking. Install ModuleBus terminator and CEX‑Bus terminator at corresponding slot positions. Slide PM866 CPU module into base plate until latch clicks into locked state. Connect Ethernet cables and redundancy link cable, maintain cable minimum bending radius requirement. Keep sufficient vertical ventilation clearance above and below module for heat dissipation, high‑performance CPU generates larger heat output. Download hardware configuration and large‑scale user application program from Compact Control Builder engineering software. Ensure cabinet protective grounding complies with ABB system grounding specification.
