Technical Specifications Equipped with industrial real‑time processor. Built‑in program memory and data memory. Rated operating voltage 24 V DC. Operating temperature 0 ℃‑60 ℃. Complies with industrial EMC requirement.
Functional Features Runs user automation control program. Completes logic and arithmetic operation. Realizes data exchange with distributed I/O modules. Supports module self‑diagnosis. Retains key data when power supply drops.
Application Scenarios Applied in chemical, energy and municipal automation control cabinets. Acts as core control unit for small‑to‑medium scale process control system.
Performance Parameters Satisfies real‑time response requirement for process control. Fault diagnostic information can be transmitted to upper monitoring system. Supports online configuration download.
Material Composition Industrial printed circuit board. High‑reliability semiconductor components. Gold‑plated contact pins for backplane connection. Flame‑retardant plastic front panel.

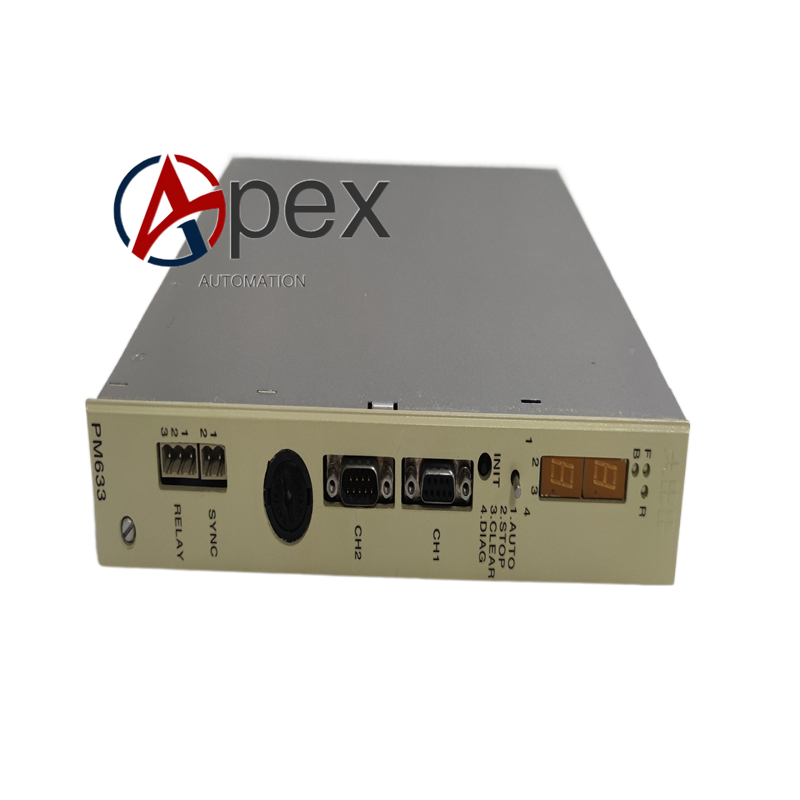

Structural Characteristics Standard rack plug‑in design. Front panel integrates power, run and fault LED indicators. Rear connector docks with system backplane. Fits standard cabinet slot dimension.
Working Principle Module completes self‑check after power‑on. Loads stored user program. Reads field signal data via backplane bus, performs control calculation, outputs control commands and communicates with upper system.
Installation Requirements Insert module into designated rack slot. Ensure tight contact with backplane. Download corresponding hardware configuration via engineering software. Keep good cabinet heat dissipation environment.
Usage Notes Take anti‑static protection during installation and replacement. Regularly backup control project source file. Do not hot‑swap under non‑allowable operating condition. Observe fault indicator during routine inspection. Cut off power before disassembly.
