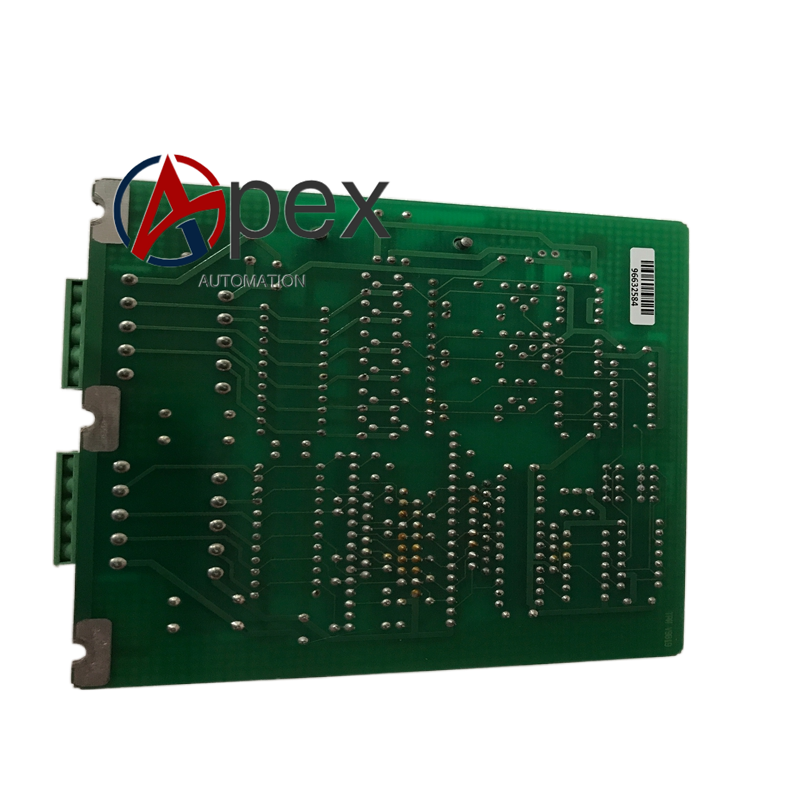

Technical Specifications Model: PE1315A Mounting Mode: Fixed installation inside power cabinet Power Supply: Auxiliary DC power supplied by internal power unit Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

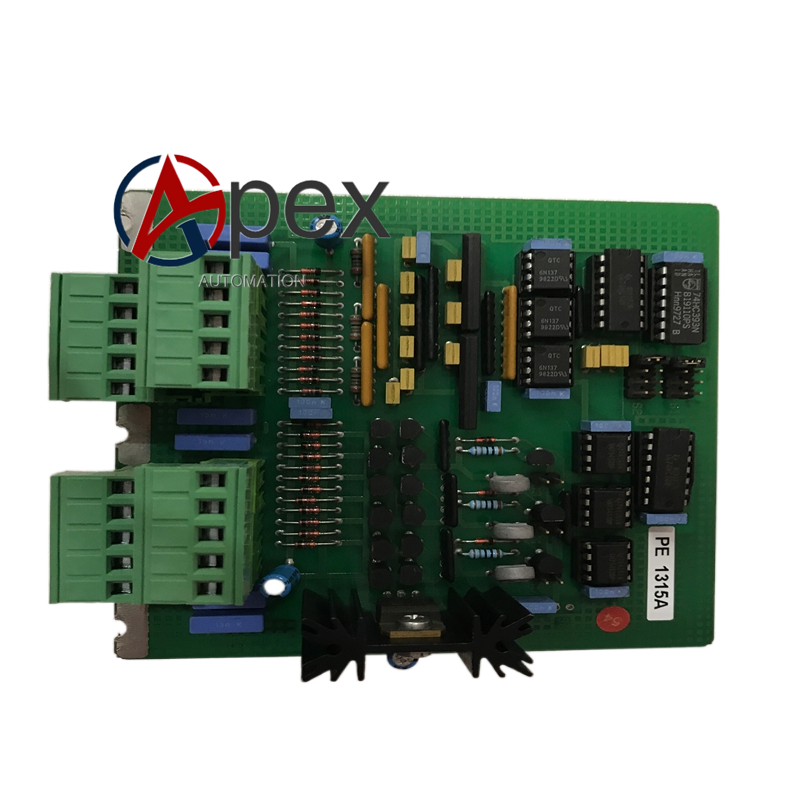

Functional Features Amplifies and transmits PWM driving signal from main control board to power semiconductor unit. Collects temperature signal and fault status feedback from power unit. On‑board hardware protection circuit responds to over‑temperature and over‑current fault signal. Multi‑pin harness connectors realize quick interconnection between control board and power unit. Signal filtering circuit suppresses high‑frequency interference generated during power device switching.
Application Scenarios Spare‑part replacement for PE1315A interface board inside ABB power drive cabinet. Driving signal transition and status feedback processing for industrial variable‑frequency drive and power conversion equipment. Hardware repair and component renewal of legacy ABB power control equipment.
Installation Requirements Cut off total power supply of equipment and fully discharge DC‑bus residual voltage before replacement work. Fix PE1315A on designated mounting position inside cabinet. Plug in each interconnection harness, ensure connectors fully inserted and locked. Complete protective earthing complying with cabinet grounding specification. Reserve heat‑dissipation space around circuit‑board surface. Ambient operating temperature shall remain within 0 ℃ to +60 ℃ without condensation. Verify driving signal transmission and fault feedback function after power‑on.
Usage Notes Strictly implement high‑voltage lock‑out‑tag‑out safety procedure before opening power cabinet. Wear anti‑static wrist strap during circuit‑board replacement operation. Check harness connector insertion status before equipment power‑on.
