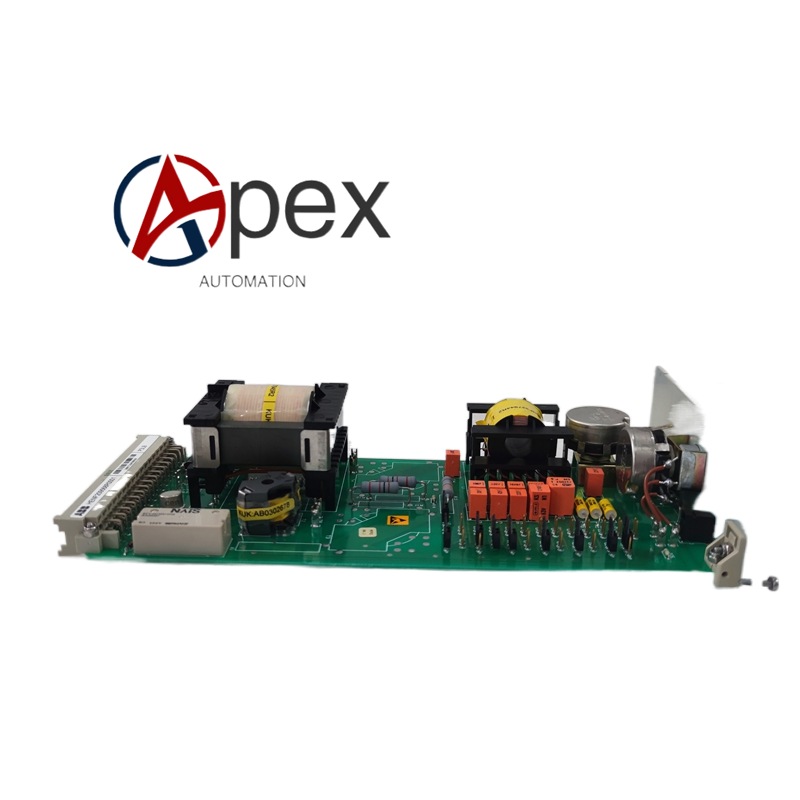

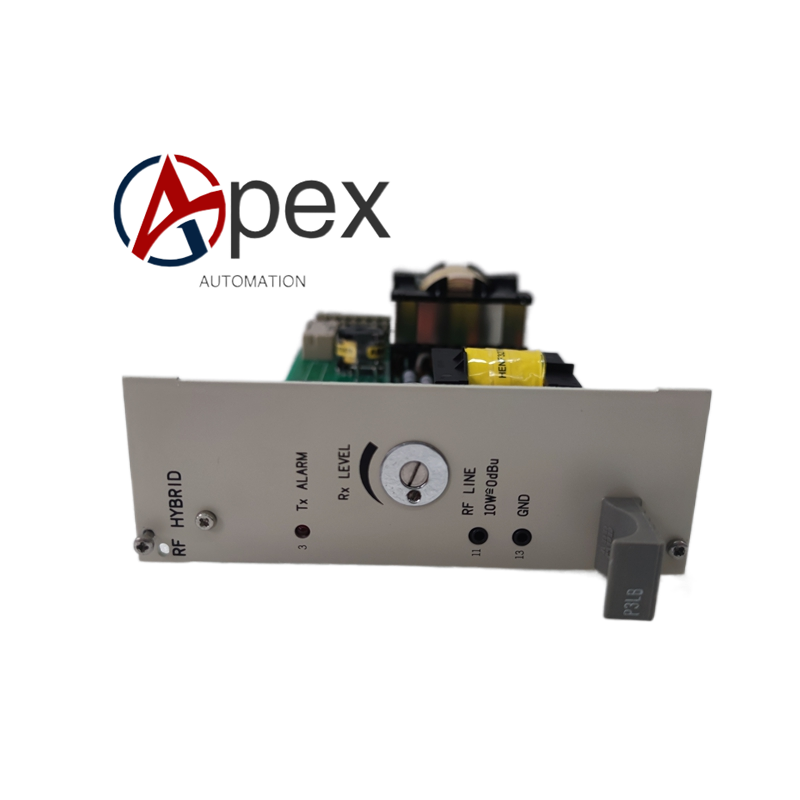

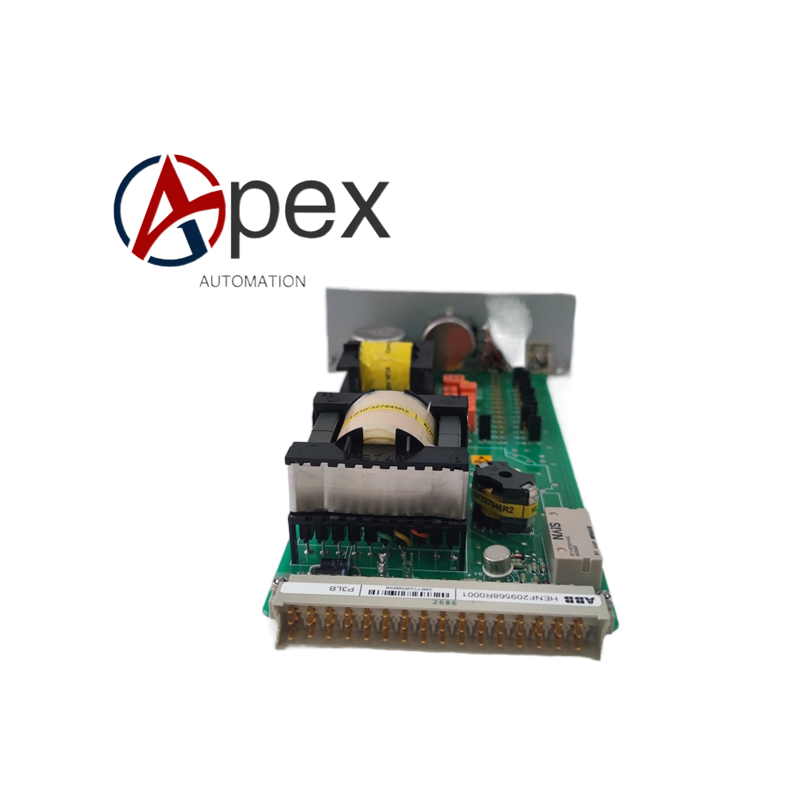

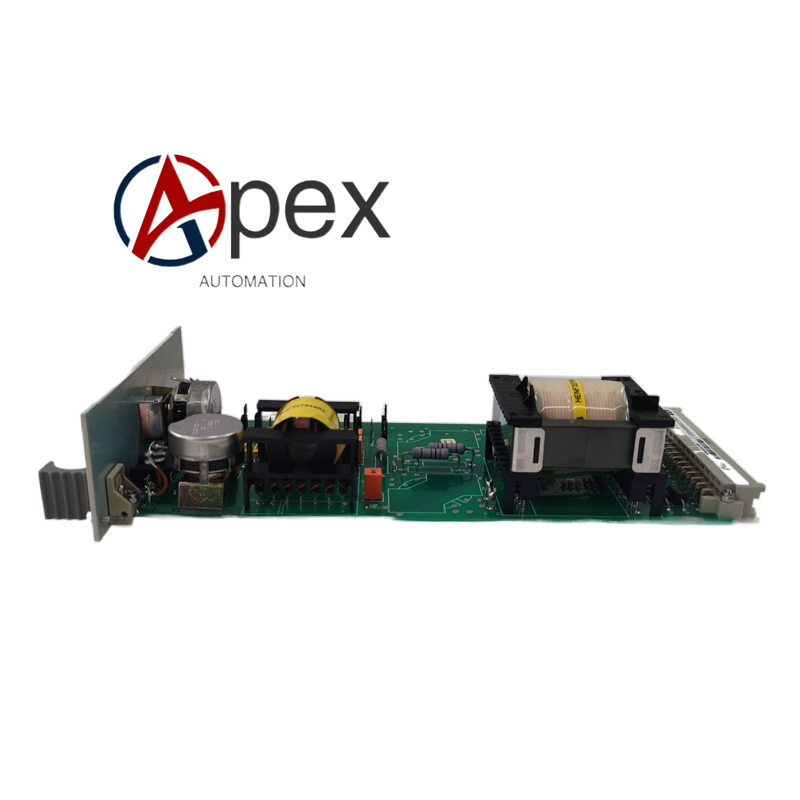

Technical Specifications Model: P3LB Part Number: HENF209568R0001 Mounting Mode: Fixed installation inside drive cabinet Power Interface: Multiple auxiliary power distribution channels Signal Interface: Multi‑pin harness connectors for power unit and control board interconnection Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Realizes auxiliary power distribution for each internal sub‑module of drive equipment. Completes transition interconnection between power unit status signal and control circuit. On‑board fuse components provide branch‑circuit over‑current protection. Hardware filtering circuit suppresses interference on power‑supply and signal loops. Transmits power‑unit fault status signal to drive main control board.
Application Scenarios Spare‑part replacement for P3LB HENF209568R0001 power interface board inside ABB drive cabinet. Internal power distribution and signal transition for industrial variable‑frequency drive equipment in metallurgy, paper‑making industry. Hardware repair and component renewal of legacy ABB drive system.
Working Principle P3LB receives auxiliary power input from drive internal power source. Power passes through branch‑circuit fuse and filtering circuit, and is distributed to each internal sub‑module. Status signals and fault signals from power unit are transmitted to drive main control board after transition processing. When branch‑circuit over‑current occurs, corresponding fuse blows to protect rear‑stage circuit. Filtering components restrain power‑supply noise and electromagnetic interference on signal loop.
Installation Requirements Cut off total power supply of drive cabinet and fully discharge DC‑bus residual voltage before replacement. Fix P3LB on designated mounting position inside drive cabinet. Plug in each interconnection harness according to signal definition, ensure connectors fully inserted. Check specification and integrity of each on‑board fuse. Complete protective earthing complying with cabinet grounding specification. Ambient operating temperature shall maintain within 0 ℃ to +60 ℃ without condensation.
