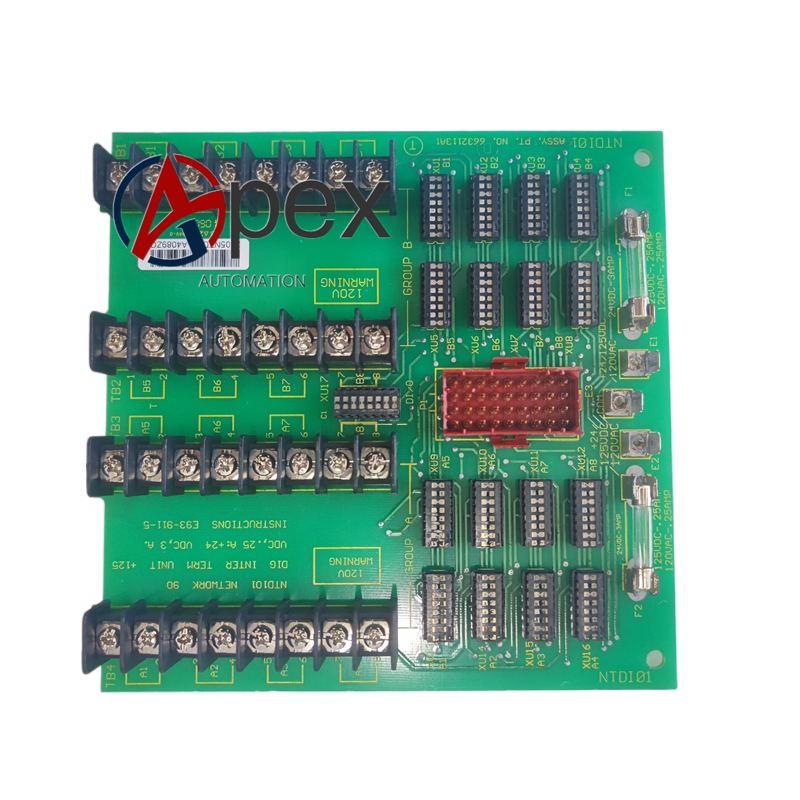

Technical Specifications Model: NTDI01 Input Channels: 16 digital input channels Input Signal Type: Dry contact / 24 VDC level signal Galvanic Isolation: Channel‑to‑back‑plane galvanic isolation Power Supply: Powered by system rack back‑plane bus Mounting Mode: Rack plug‑in installation Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Sixteen‑channel digital signal acquisition for field switching devices. Galvanic isolation between each input channel and system back‑plane bus. Hardware surge protection for each input channel. Front‑panel LED status indicators reflect real‑time on‑off state of each channel. High‑speed data interaction with main controller through rack back‑plane bus. Built‑in self‑diagnosis monitors module internal hardware failure.
Application Scenarios Spare‑part replacement for NTDI01 digital input module in ABB legacy control rack. Field switch signal collection for interlock logic control in chemical, water treatment and metallurgy industries. Hardware maintenance and renewal of old‑generation ABB automation platform.
Installation Requirements Insert NTDI01 fully into designated rack slot and tighten front‑panel locking screw. Connect field switch signal cables to front‑side terminals according to signal definition. Complete protective earthing complying with cabinet grounding specification. Keep ventilation clearance around module slot. Ambient operating temperature shall remain within 0 ℃ to +60 ℃ without condensation. Verify each channel digital signal acquisition function after power‑on.
Usage Notes Field signal cables adopt shielded cables and avoid parallel laying with high‑power cables. Wear anti‑static wrist strap during module plug‑in and replacement. Do not apply voltage exceeding rated input specification to signal terminals. Regularly check terminal screw tightening torque and remove cabinet dust. Execute lock‑out‑tag‑out safety procedure before module disassembly.
