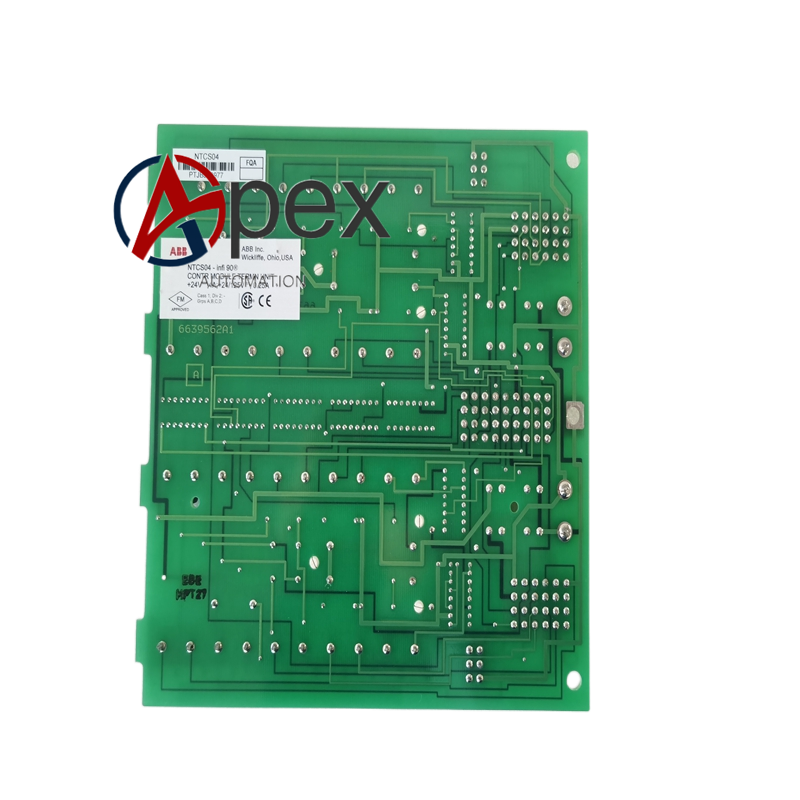

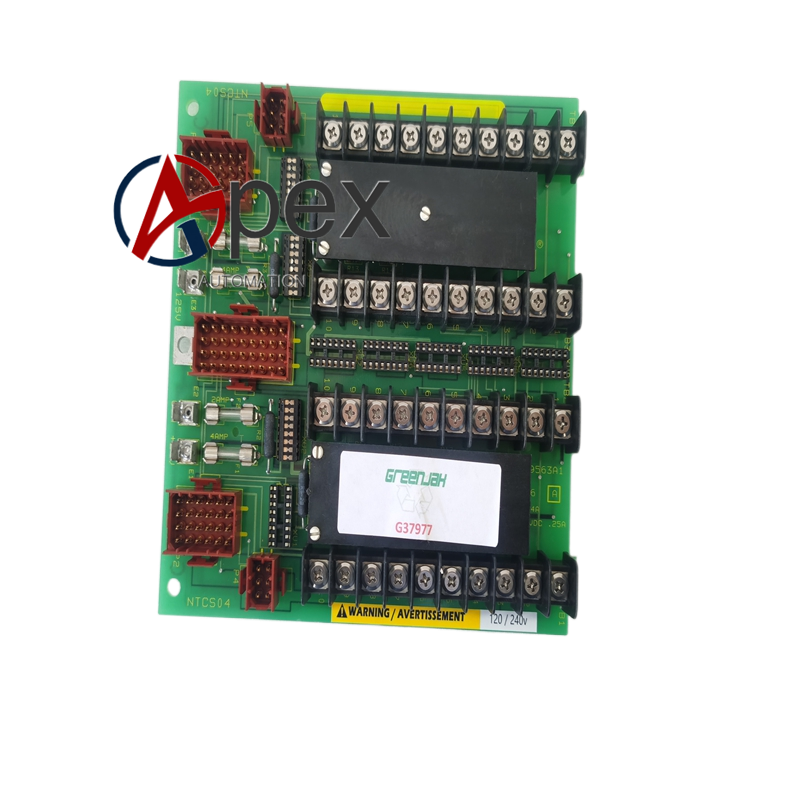

Technical Specifications Model: NTCS04 Communication Channel: 4 serial communication channels Interface Type: RS485 / RS232 configurable Mounting Mode: Rack plug‑in installation Power Supply: Powered by rack back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Four independent serial communication channels support RS485 and RS232 hardware interface. Realizes data exchange between control rack and field intelligent transmitters and host monitoring system. Each channel possesses hardware surge and electrostatic protection circuit. Front‑panel LED indicators show module power‑on and each channel data transmission activity. Completes data forwarding between back‑plane bus and external serial devices. On‑board self‑diagnosis monitors channel hardware abnormality.
Application Scenarios Spare‑part replacement for NTCS04 communication module in ABB legacy control rack. Serial communication connection for industrial field intelligent instruments and monitoring host. Hardware upgrade and maintenance of old ABB automation control system.
Installation Requirements Insert NTCS04 into designated rack slot completely and tighten front‑panel locking screw. Connect external serial communication cables to front‑side signal terminals according to interface definition. Configure communication parameters consistent with connected external equipment. Complete protective earthing according to cabinet grounding specification. Ambient operating temperature shall maintain within 0 ℃ to +60 ℃ without condensation. Verify data communication function of each channel after power‑on.
Usage Notes Communication cables shall adopt shielded cables and separate routing from high‑power cables. Wear anti‑static wrist strap during module replacement. Set baud rate, parity and data bit parameters matching external devices.
