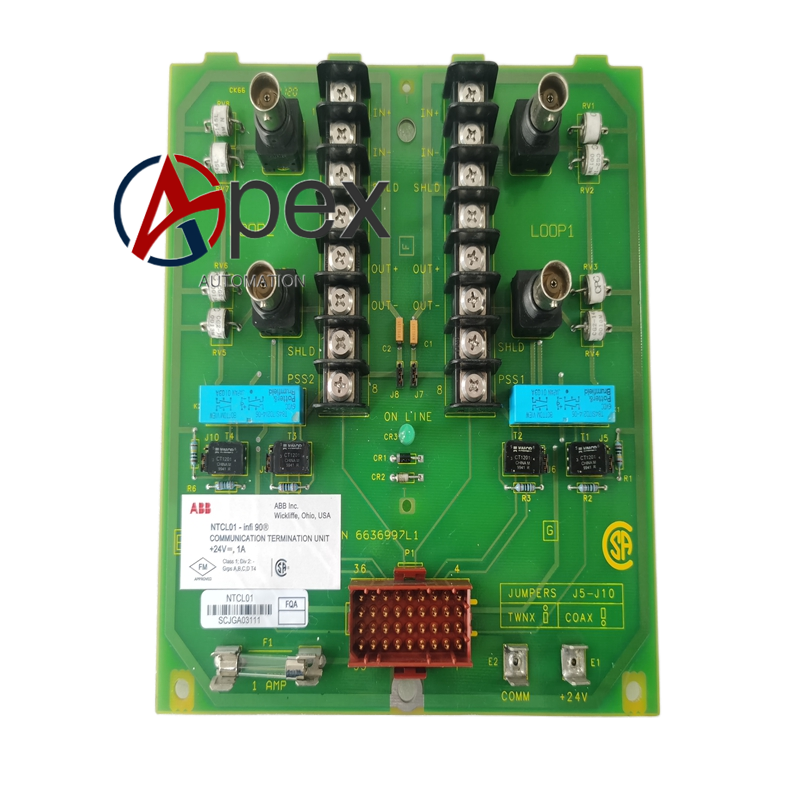

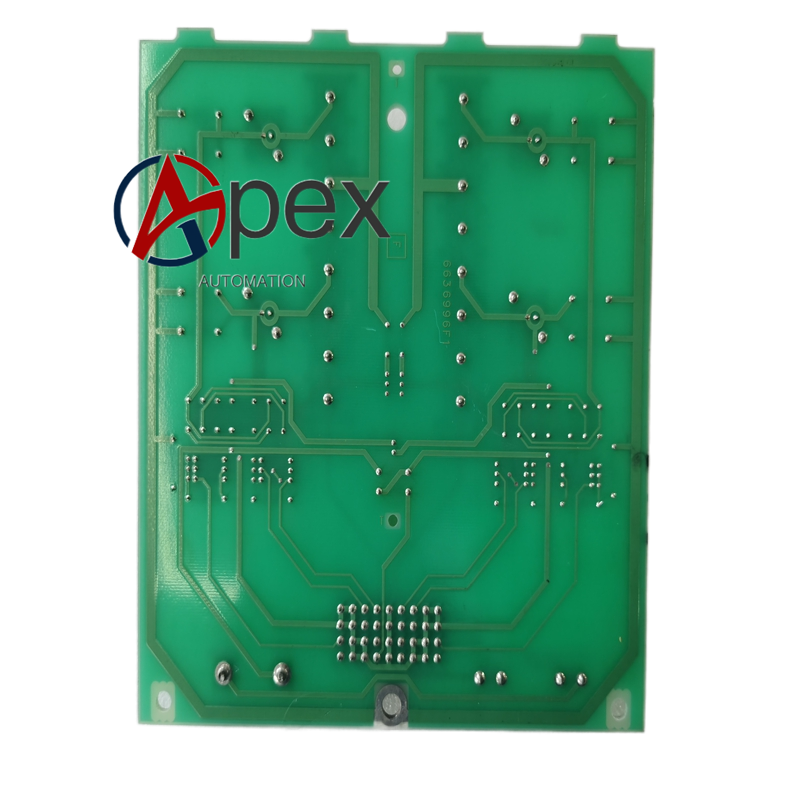

Technical Specifications Model: NTCL01 Bus Interface: Local control rack back‑plane bus, remote link physical interface Transmission Medium: Shielded twisted‑pair cable Transmission Rate: System default communication baud rate Mounting Mode: Rack plug‑in installation Power Supply: Powered by rack back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Realizes signal driving and physical layer conversion for control system remote I/O link. Completes data exchange between local main control rack and distributed remote I/O racks. Hardware signal isolation reduces interference impact on long‑distance bus transmission. Front‑panel LED indicators show module power‑on status and link communication activity. Built‑in self‑diagnosis monitors bus signal loss and link hardware fault.
Application Scenarios Spare‑part replacement for NTCL01 module in ABB distributed control rack system. Remote I/O link communication for chemical, metallurgy industrial automation projects. Hardware repair and component renewal of legacy ABB automation platform.
Installation Requirements Insert NTCL01 fully into target rack slot and tighten front‑panel locking screw. Connect remote link shielded twisted‑pair cables to front‑side signal terminals. Follow system specification for cable grounding and termination resistor configuration. Reserve heat‑dissipation space around module slot. Ambient operating temperature shall keep within 0 ℃ to +60 ℃ without condensation. Verify communication between local rack and remote I/O racks after power‑on.
Usage Notes Remote link signal cables shall adopt specified shielded twisted‑pair. Wear anti‑static wrist strap during module replacement operation. Check cable termination resistor configuration strictly according to system requirements. Periodically check terminal screw tightness and cabinet dust condition. Execute lock‑out‑tag‑out safety procedure before module disassembly.
