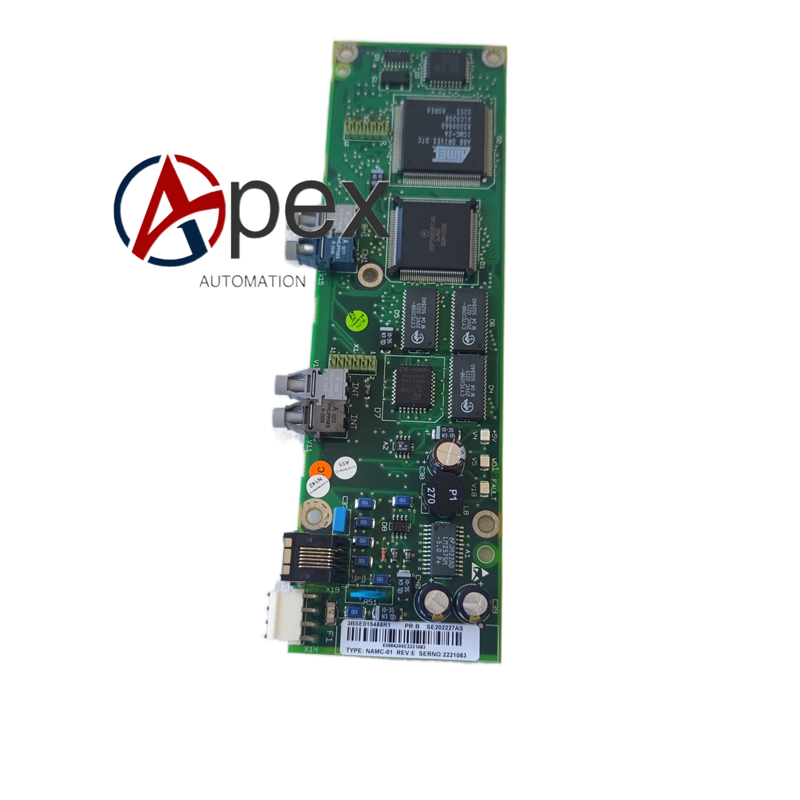

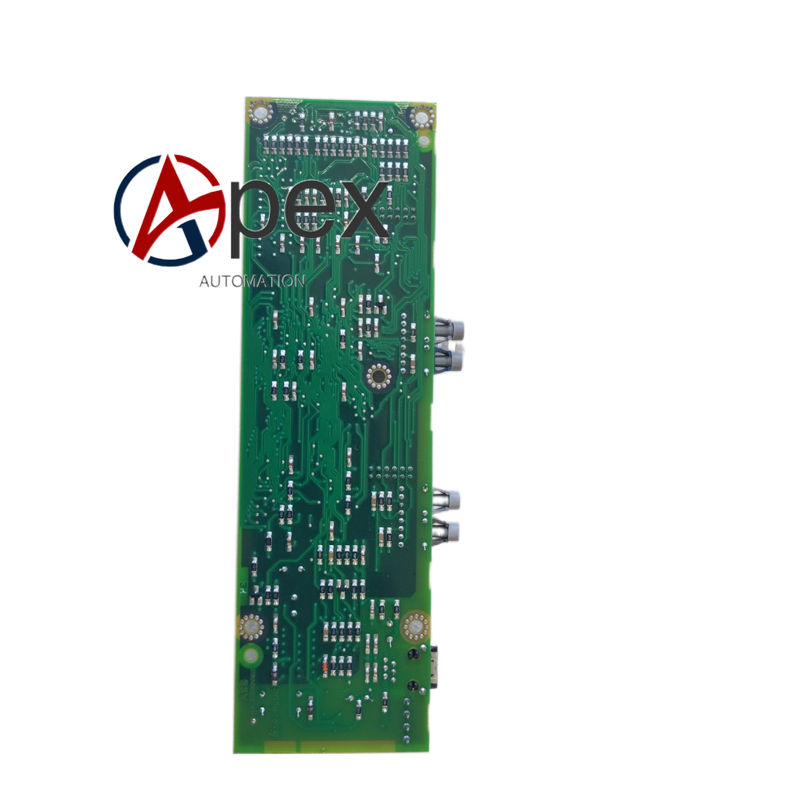

Technical Specifications Model: NAMC‑01 Part Number: 3BSE015488R1 Compatible Drive: ABB ACS600 series variable frequency drives Power Supply: Internal power obtained from drive power‑supply unit Communication Interface: DDCS multi‑channel optical fiber ports for option modules Control Algorithm: Direct Torque Control / Vector Control Back‑plane Connector: Multi‑pin gold‑plated back‑plane connector inside drive cabinet Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Executes core motor control algorithm for ACS600 drive, supports direct torque control and vector control mode. Multi‑channel DDCS optical fiber interfaces connect NAIO‑03, NDIO‑03 and other external option modules. Real‑time acquisition of drive voltage, current and temperature signal for hardware protection logic. Complete drive fault diagnosis, fault‑code storage and status reporting function. Process digital and analog I/O signals of drive main terminal block. Generates PWM driving signal to power inverter unit. Supports parameter configuration via drive control panel tool. On‑board self‑diagnosis monitors internal hardware and communication link fault.
Application Scenarios Spare‑part replacement for NAMC‑01 main control board of ABB ACS600 series frequency converter. Core control hardware maintenance for industrial multidrive cabinet in metallurgy, mining and chemical plant. Renewal and repair of legacy ACS600 drive system for pump, fan and compressor variable‑speed application.
Installation Requirements Power off drive completely and fully discharge DC‑bus residual voltage before board replacement. Insert NAMC‑01 into designated slot inside ACS600 drive cabinet, lock fixing screws. Connect each DDCS optical fiber jumper to corresponding optical port according to system topology. Check back‑plane connector full insertion status. Restore drive cabinet cover after replacement. Complete drive parameter download and motor identification commissioning after power‑on. Verify motor running and fault‑alarm function.
