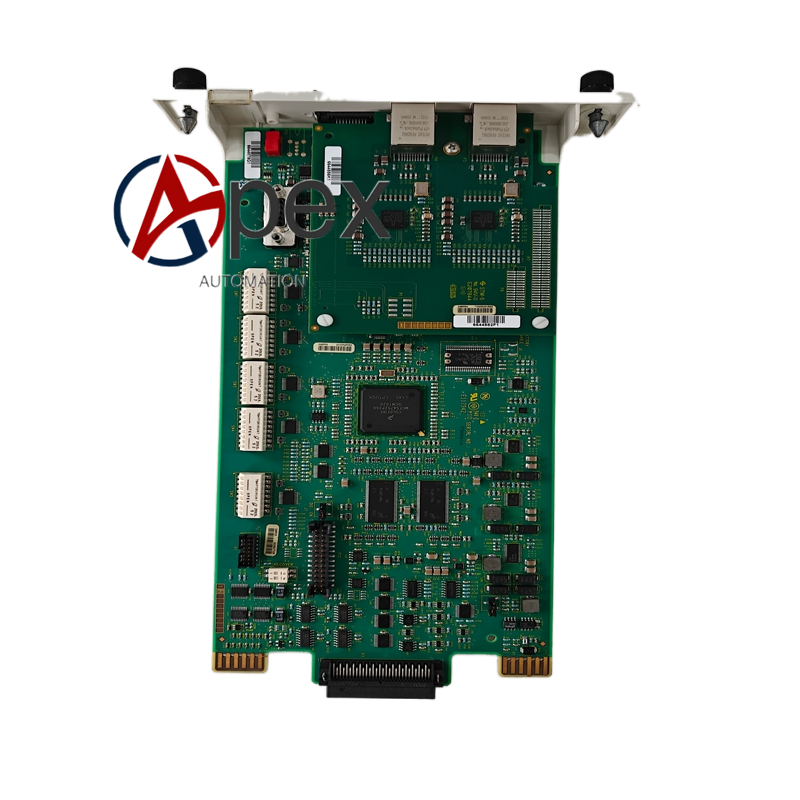

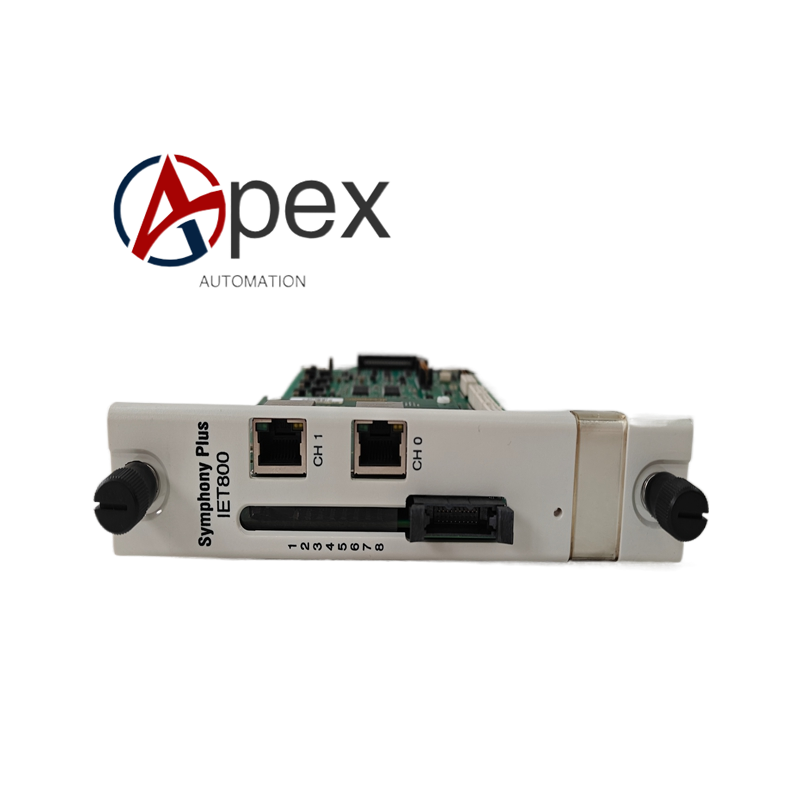

Technical Specifications Model: INIET800 Internal Bus Interface: Symphony Controlway bus External Communication Interface: 10/100 Mbps Ethernet RJ45 port Network Protocol: Supports DCS dedicated application protocol over TCP/IP Back‑plane Power Supply: +5 VDC from rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE, UL
Functional Features Completes protocol conversion between internal Controlway bus and external TCP/IP Ethernet network. 10/100 Mbps adaptive Ethernet interface for connecting operator stations and upper‑level monitoring hosts. Front‑panel LED indicators display module power‑on, running, Controlway bus status and Ethernet link status. On‑board self‑diagnosis monitors back‑plane power supply, internal protocol‑conversion circuit and Ethernet link fault. Supports authorized hot‑swap under system maintenance workflow.
Application Scenarios Spare‑part replacement for INIET800 Ethernet communication module in Symphony DCS control rack. Ethernet network access for Symphony INFI‑90 DCS system, connecting operator workstations and upper‑level SCADA monitoring system. Communication gateway hardware for data interaction between legacy DCS and third‑party industrial host equipment.
Performance Parameters Communication data throughput meets Symphony DCS system host‑access requirement MTBF: 147000 hours Shock and Vibration: Complies with IEC 60068‑2‑6
Installation Requirements Insert INIET800 fully into designated MMU rack slot and fasten front locking screw. Connect industrial Ethernet network cable to front‑side RJ45 port. Set IP address and network‑related parameters through DCS engineering software. Implement protective earthing complying with DCS system grounding specification. Reserve sufficient ventilation clearance around module slot for heat dissipation. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation. Verify network communication connection and data‑exchange function after parameter configuration completion.
Usage Notes Use industrial‑grade shielded Ethernet cables for network connection.
