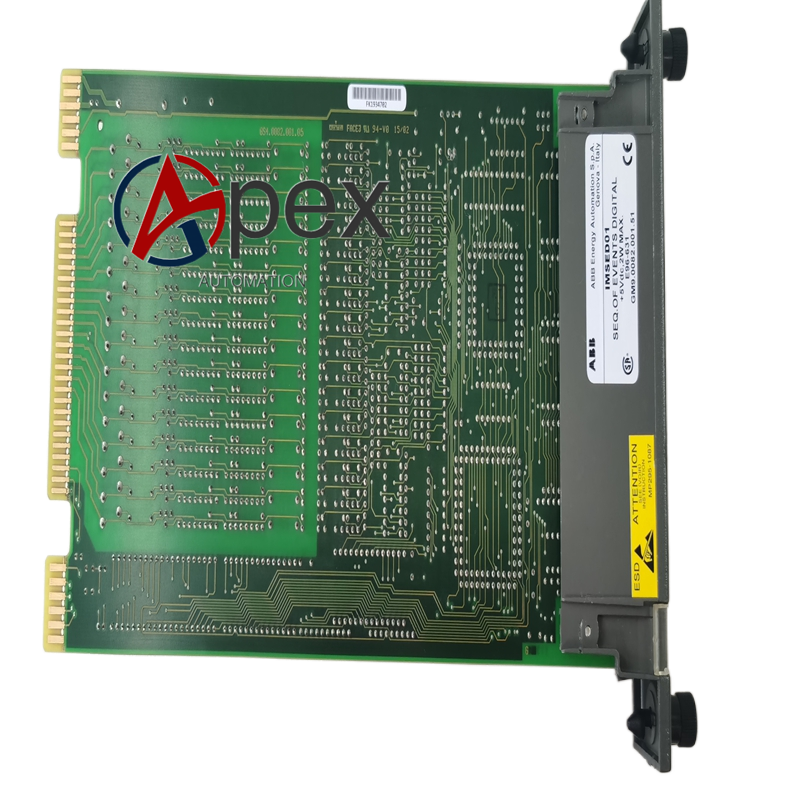

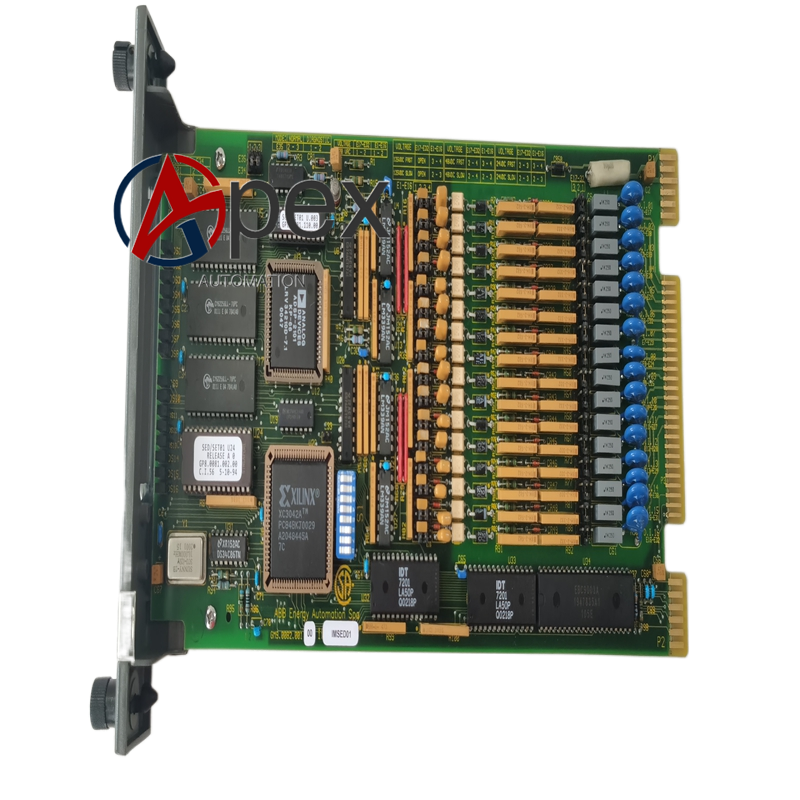

ABB IMSED01 Sequence‑of‑Events Digital Input Module

Technical Specifications Model: IMSED01 Input Channel Quantity: 16 isolated digital input channels Supported Input Voltage: 24 VDC / 48 VDC / 125 VDC, depending on hardware configuration SOE Time‑stamp Resolution: 1 millisecond Back‑plane Power Supply: +5 VDC from rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Galvanic Isolation: 1500 VAC channel‑to‑backplane Protection Class: IP20 Certifications: CE, UL

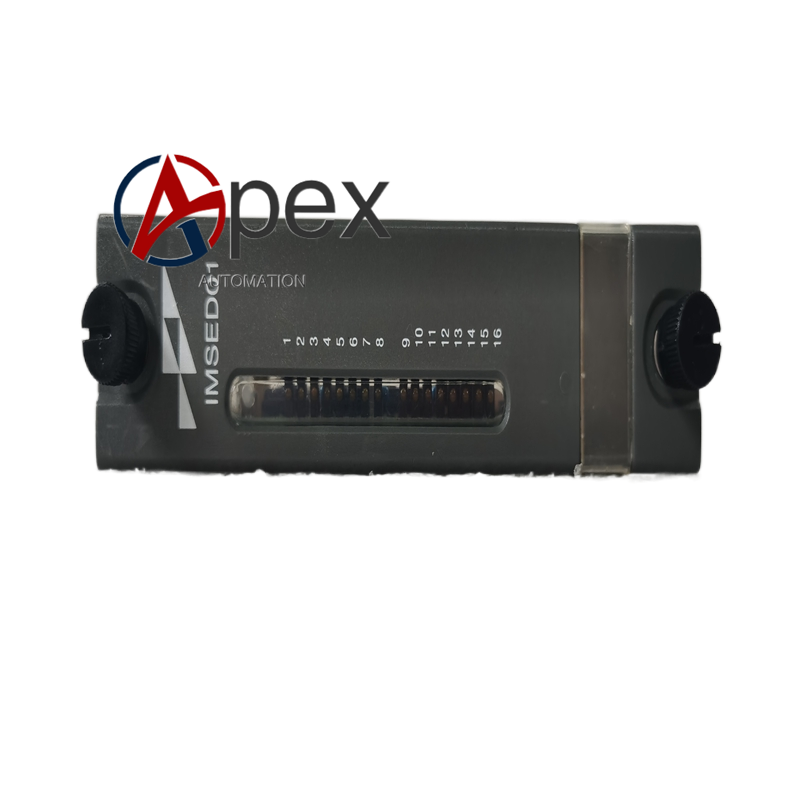

Functional Features 16‑channel isolated digital signal acquisition for field switch and relay contact status. Millisecond‑accurate time‑stamp recording for each signal transition event for SOE sequence‑of‑events logging. Group‑wise galvanic isolation eliminates ground‑loop interference from field‑side signal loops. Front‑panel LED indicators display module power‑on, running and fault‑alarm status. On‑board self‑diagnosis monitors back‑plane power supply and internal timing‑circuit hardware fault. Supports authorized hot‑swap under system maintenance workflow.

Application Scenarios Spare‑part replacement for IMSED01 SOE digital input module in Symphony DCS control rack. Sequence‑of‑events signal recording for power‑plant generator‑unit interlock and protection action signals. Accident‑event logging for petrochemical large‑scale process‑unit interlock‑protection system.

Installation Requirements Insert IMSED01 fully into target MMU rack slot and fasten front locking screw. Connect field interlock‑protection contact signals to corresponding matched terminal unit. Confirm module hardware input‑voltage configuration matches field signal voltage level. Implement protective earthing complying with DCS system grounding specification. Reserve ventilation heat‑dissipation clearance around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Verify SOE event‑recording function after hardware installation completion.

Usage Notes Field signal cables adopt shielded twisted‑pair and implement single‑point shielding earthing. Do not apply voltage exceeding module configured rated input voltage to input channels.
