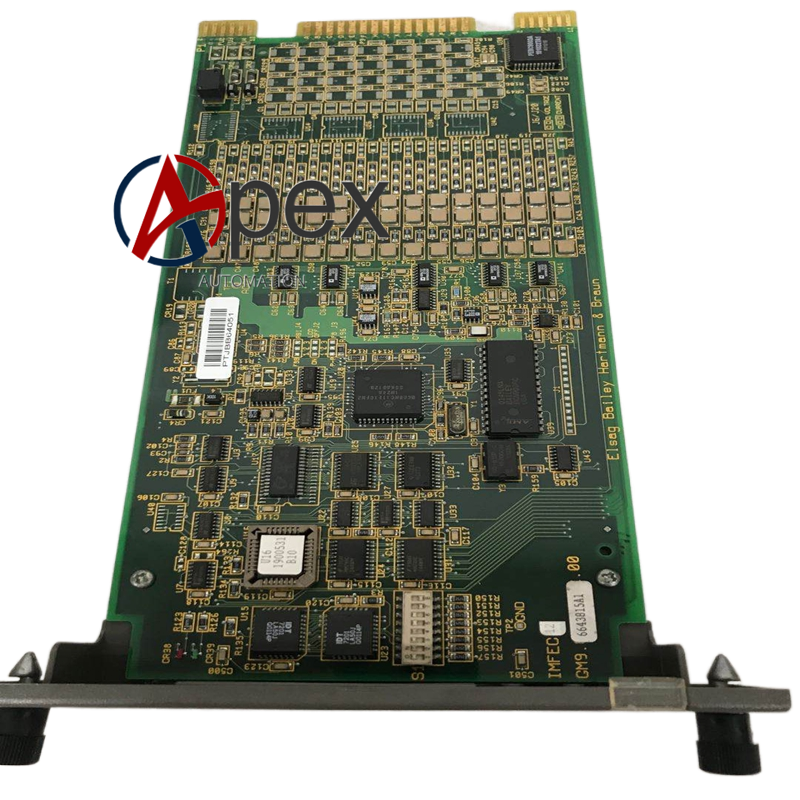

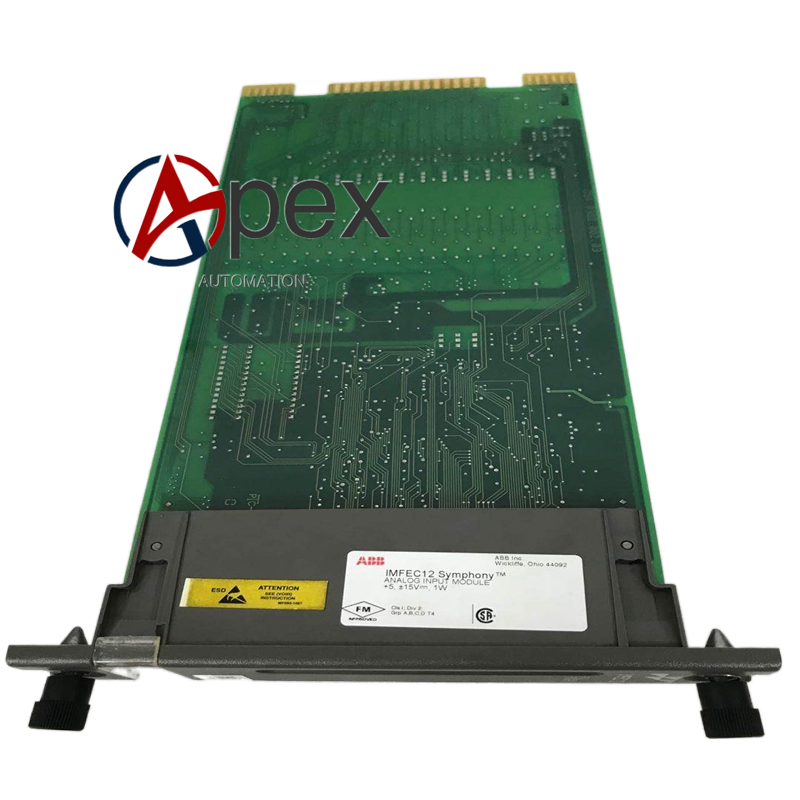

ABB IMFEC12 Analog Input Slave Module

Technical Specifications Model: IMFEC12 Channel Quantity: 15 analog input channels Supported Signal Type: 4‑20 mA current, 1‑5 VDC, ‑10 V ~ +10 VDC voltage A/D Conversion Resolution: 12‑bit Back‑plane Power Supply: +5 VDC from rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Galvanic Isolation: Group‑wise channel isolation Protection Class: IP20 Certifications: CE, UL

Functional Features Multi‑channel high‑density acquisition for standard industrial current and voltage transmitter signals. Group‑wise galvanic isolation suppresses ground‑loop noise between field side and control rack. Built‑in loop open‑circuit detection function identifies field transmitter cable breakage fault. Front‑panel LED indicators show module power‑on, running and fault alarm real‑time status. On‑board self‑diagnosis monitors back‑plane power deviation and internal conversion circuit failure. Supports authorized hot‑swap under system maintenance workflow.

Application Scenarios Spare‑part replacement for IMFEC12 analog input module in Symphony DCS control rack. Pressure, flow, liquid‑level analog signal acquisition for power plant, chemical and process industry automation loops. Hardware renewal for legacy ABB INFI‑90 DCS system overhaul projects.

Installation Requirements Insert IMFEC12 fully into target MMU rack slot and fasten front locking screw. Connect field transmitter signal cables to corresponding matched NTAI terminal unit. Implement protective earthing complying with DCS system grounding specification. Reserve ventilation heat‑dissipation clearance around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Complete signal range parameter configuration via engineering software after hardware installation. Verify analog signal reading function of each channel.

Usage Notes Field analog signal cables adopt shielded twisted‑pair and implement single‑point shielding earthing. Wear anti‑static wrist strap during module installation and replacement.
