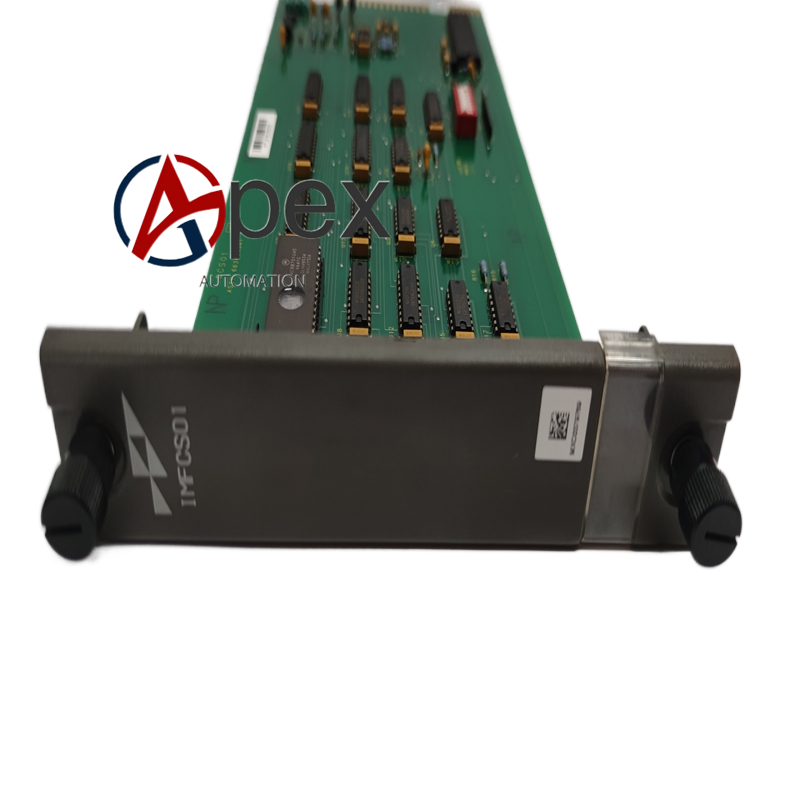

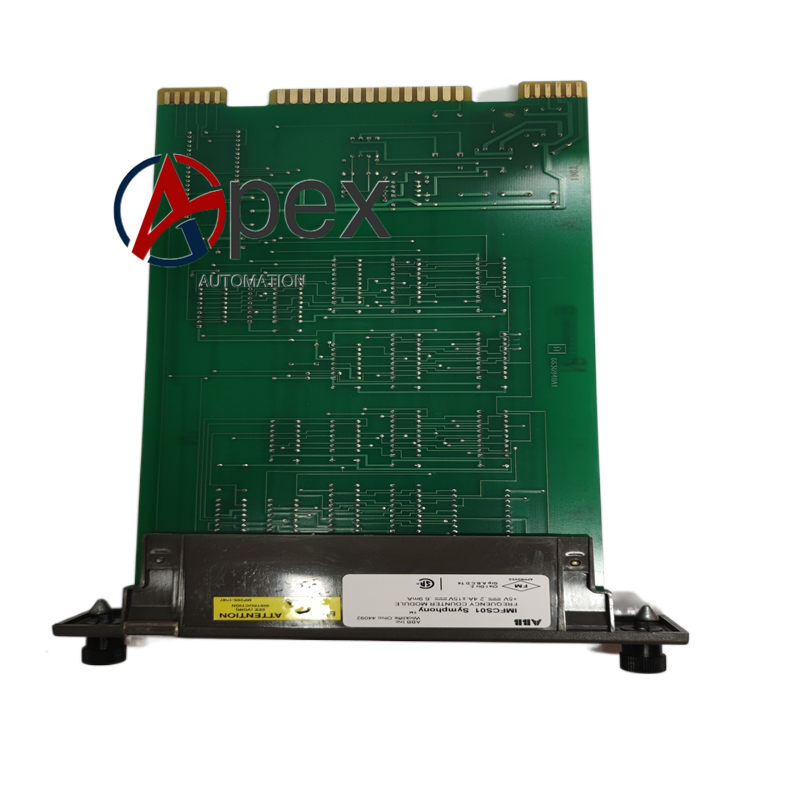

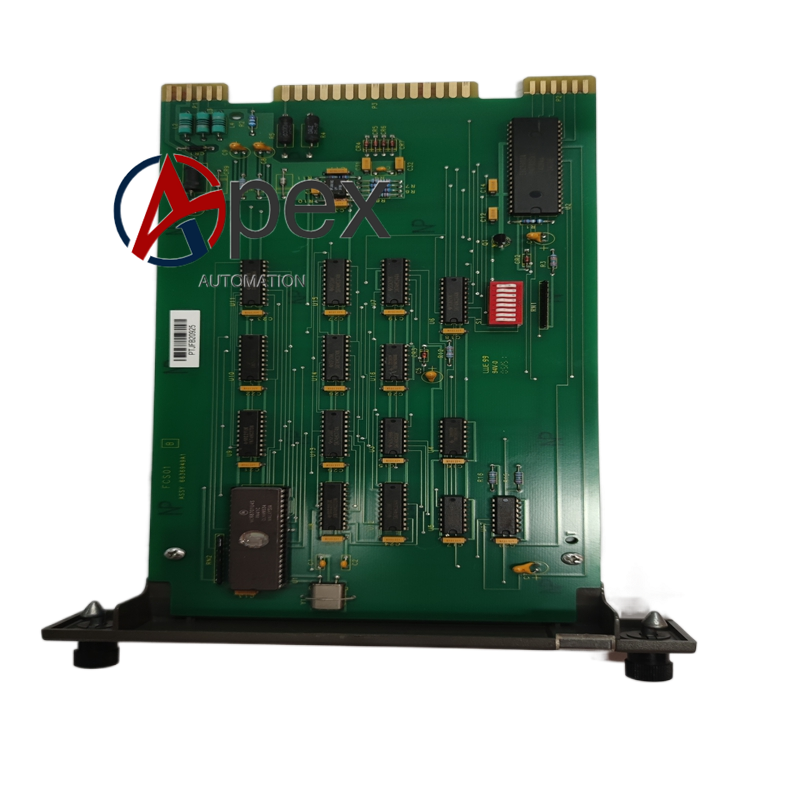

Technical Specifications Model: IMFCS01 Input Channel Quantity: 1 isolated frequency‑pulse input channel Input Signal Type: Sine‑wave, square‑wave pulse signal from magnetic pickup or proximity probe Input Voltage Amplitude: 300 mVp‑p ~ 120 Vrms Measurable Frequency Range: 1 Hz ~ 12.5 kHz Measurement Accuracy: ±0.25 Hz within 1 Hz‑5 kHz, ±0.50 Hz within 5 kHz‑10 kHz Back‑plane Power Supply: +5 VDC from rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Isolation Voltage: 1500 VAC channel‑to‑backplane Protection Class: IP20 Certifications: CE, UL
Functional Features High‑precision single‑channel frequency, pulse period and rotating‑speed measurement for rotating machinery. Adjustable signal trigger threshold adapts to different amplitude pulse signals from field pick‑up sensors. Group‑wise galvanic isolation eliminates interference from field rotating‑equipment signal loops. Front‑panel LED indicators display module power‑on, running and fault alarm condition. On‑board self‑diagnosis monitors back‑plane power supply, input signal amplitude abnormality and internal circuit fault. Supports authorized hot‑swap under system maintenance workflow.
Application Scenarios Spare‑part replacement for IMFCS01 frequency counter module in Symphony DCS rack. Rotating‑speed measurement for steam turbine, gas turbine and large rotating equipment in power plants. Overspeed protection signal acquisition and rotating‑machinery performance monitoring for industrial process units.
Installation Requirements Insert IMFCS01 fully into designated MMU rack slot and fasten front locking screw. Connect magnetic pick‑up sensor signal cables to corresponding matched terminal unit. Adjust trigger threshold parameter according to actual sensor output signal amplitude through engineering software. Implement protective earthing strictly complying with DCS system grounding specification. Reserve sufficient ventilation clearance around module slot for heat dissipation. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation. Complete frequency measurement function verification after hardware installation and parameter configuration.
