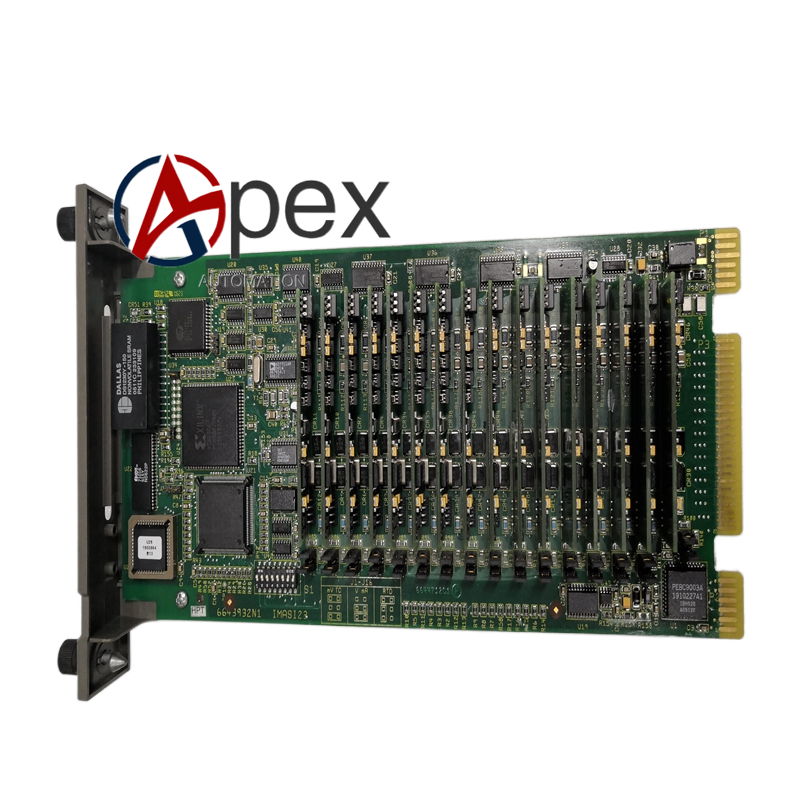

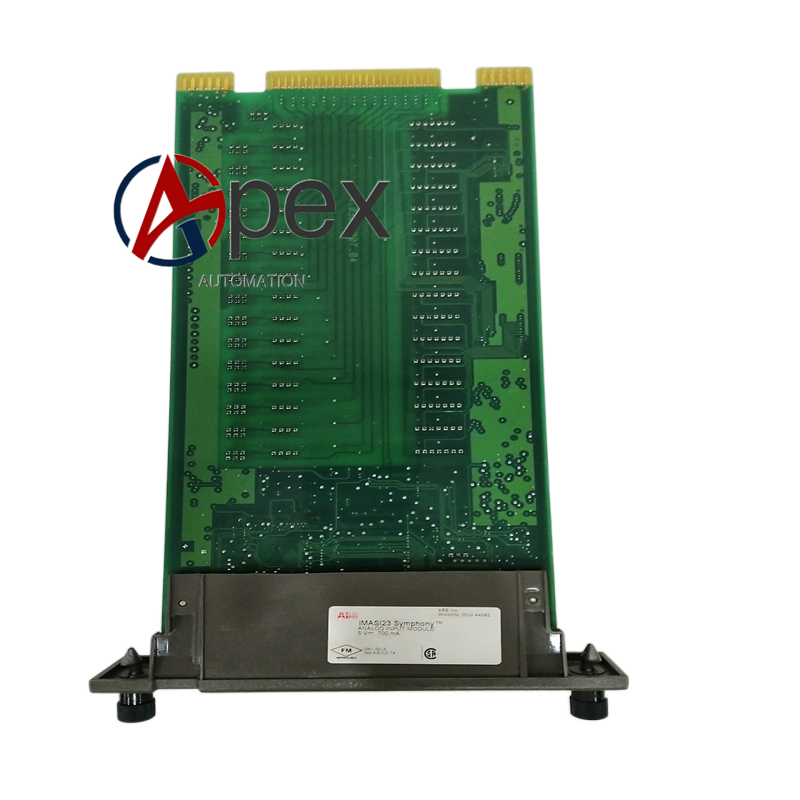

Technical Specifications Model: IMASI23 Channel Quantity: 16 isolated analog input channels Supported Signal: Thermocouple, RTD, millivolt,‑10 V ~ +10 V voltage, 4‑20 mA current A/D Conversion Resolution: 24‑bit Total Conversion Time: 180 ms for all 16 channels Back‑plane Power Supply: +5 VDC from rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Isolation Voltage: 1500 VAC channel‑to‑backplane Protection Class: IP20 Certifications: CE, UL
Functional Features Multi‑signal compatibility supports thermocouple cold‑junction compensation and RTD linearization. Each channel achieves group‑wise galvanic isolation to suppress ground‑loop interference. Built‑in open‑circuit detection identifies thermocouple break and field cable disconnection fault. Front‑panel LED indicators show module power‑on, running and fault alarm status. On‑board self‑diagnosis monitors back‑plane power deviation, conversion circuit abnormality and channel fault. Supports authorized hot‑swap under system maintenance workflow. High common‑mode and normal‑mode rejection performance restrains industrial site electromagnetic noise.
Application Scenarios Spare‑part replacement for IMASI23 analog input module in Symphony DCS control rack. Temperature, pressure, flow analog signal acquisition for thermal power plant, chemical and metallurgy process control. Hardware overhaul and renewal for legacy ABB INFI‑90 distributed control projects.
Installation Requirements Insert IMASI23 fully into designated MMU rack slot and fasten front locking screw. Connect field sensor cables to corresponding matched terminal unit. Implement protective earthing strictly complying with DCS system grounding specification. Reserve sufficient ventilation clearance around module slot for heat dissipation. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation. Complete signal type and range parameter configuration via engineering software after hardware installation.
Usage Notes Field analog signal cables adopt shielded twisted‑pair and execute single‑point shielding earthing. Wear anti‑static wrist strap during module installation and replacement to avoid static damage to electronic components. Periodically check module insertion status and remove accumulated cabinet dust.
