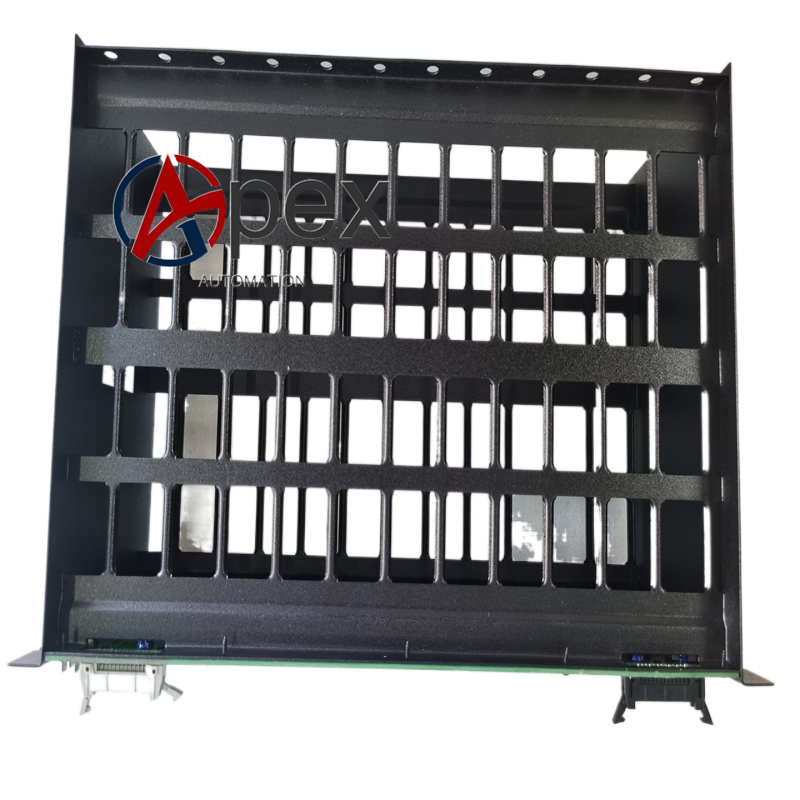

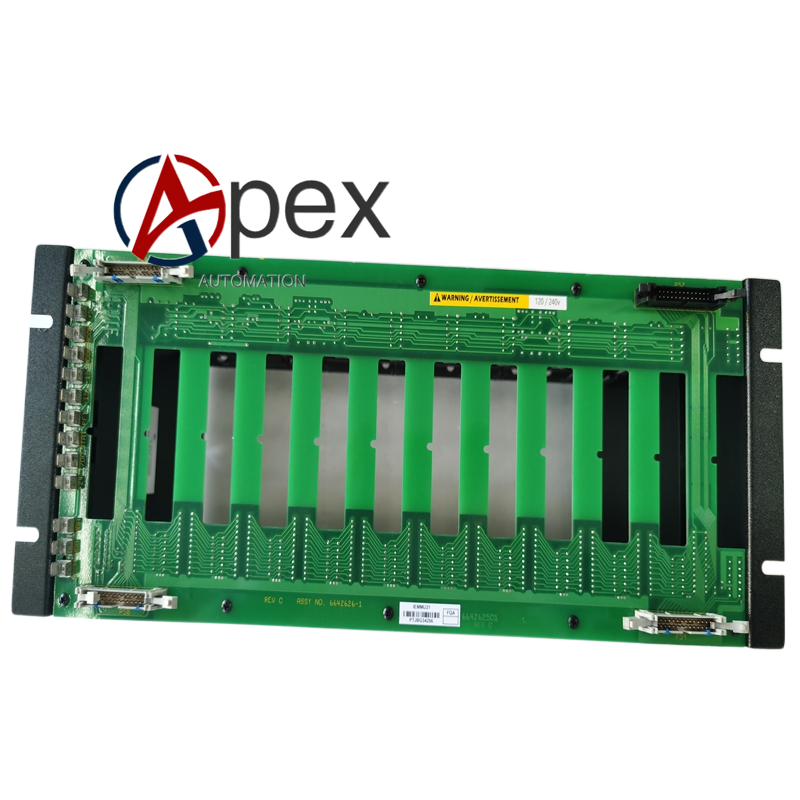

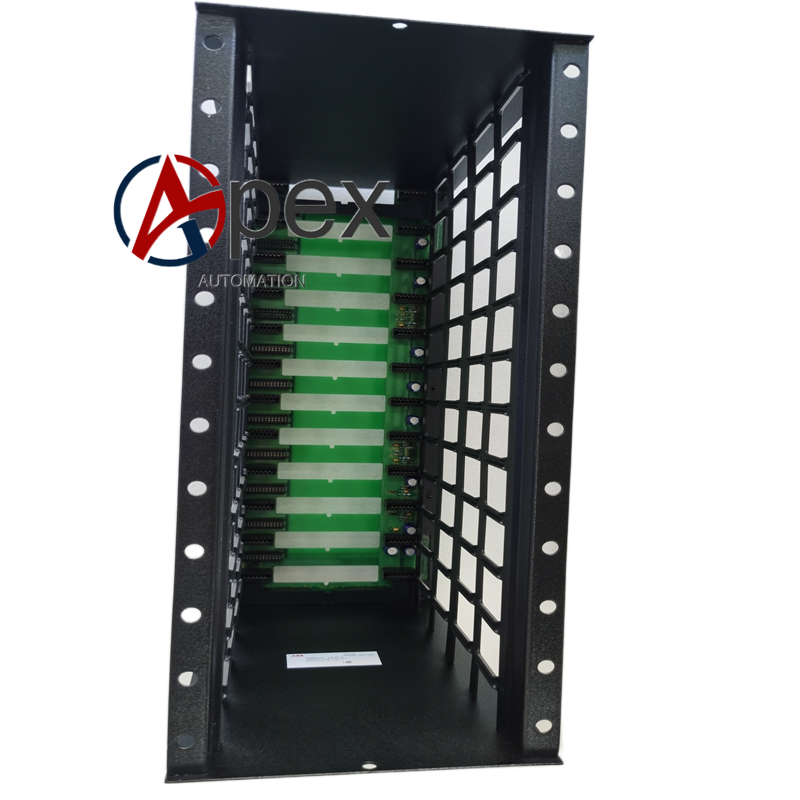

ABB IEMMU21 I/O Module Mounting Rack Unit

Technical Specifications Model: IEMMU21 Mounting Mode: TS35 DIN‑rail mounting Slot Quantity: Multi‑module installation slots Back‑plane Interface: Integrated internal system bus Power Distribution: Distributes auxiliary operating power to each inserted module Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Provides mechanical installation slots for matched series plug‑in I/O modules. Integrated back‑plane bus realizes high‑speed signal intercommunication among inserted modules. Distributes auxiliary operating power supply to each installed module. Standard DIN‑rail structure adapts to general industrial cabinet installation environment. Module locking mechanism guarantees reliable mechanical connection under cabinet vibration.

Application Scenarios Spare‑part replacement for IEMMU21 mounting rack unit inside ABB automation control cabinet. Mechanical and bus carrier for I/O module group in process automation systems. Cabinet hardware renewal for legacy ABB industrial control projects.

Installation Requirements Clip IEMMU21 firmly onto TS35 standard DIN‑rail inside control cabinet. Connect external auxiliary power supply cables to designated power input terminals and tighten terminals to specified torque. Implement protective earthing complying with automation system grounding specification. Reserve sufficient front‑side operation space for module insertion and extraction. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation.

Usage Notes Only install compatible matched series I/O modules into IEMMU21 slots. Do not exceed total rated power load capacity of mounting rack unit. Periodically check module locking condition and remove accumulated cabinet dust. Avoid installation near strong electromagnetic interference sources.
