Technical Specifications Model: IDM‑96 Panel Cut‑out Size: 96 mm × 96 mm Input Signal Type: Analog voltage, analog current signals Display Mode: Digital numerical display Power Supply: Industrial auxiliary control power Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: Front panel IP54, rear side IP20 Certifications: CE

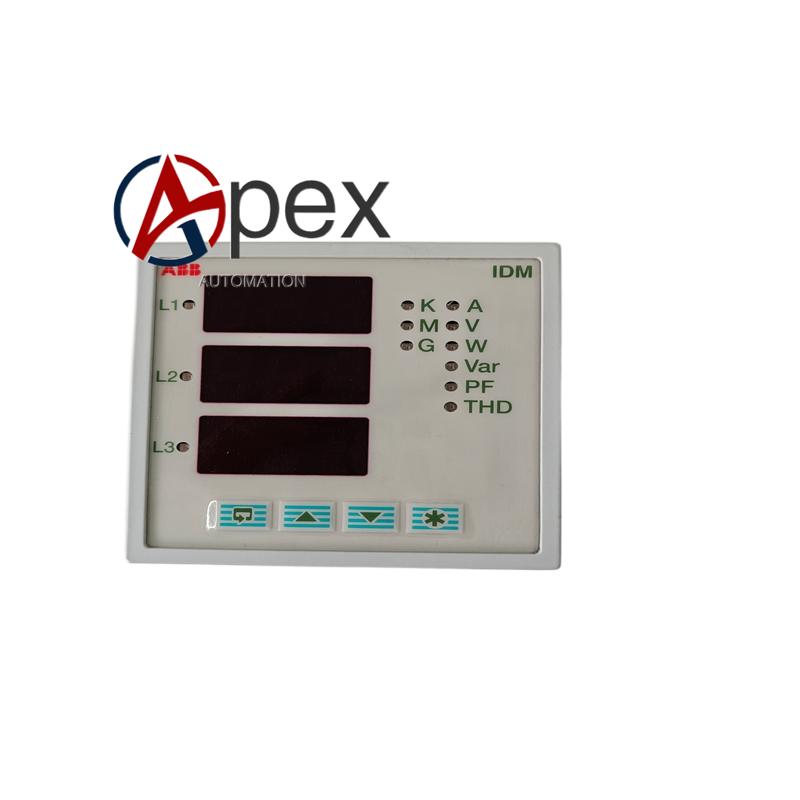

Functional Features Real‑time digital numerical display for field measurement analog signals. Supports user configurable input range and display scaling parameter setting. Front‑panel operation keys realize parameter modification and configuration. Front‑panel LED alarm indicator for over‑range signal status. Compact 96‑size panel installation structure adapts to standard cabinet panel cut‑out dimensions.
Application Scenarios Spare‑part replacement for IDM‑96 digital display meter on industrial cabinet panel. Local indication for voltage, current and other measured variables in power conversion and automation cabinets. Field‑side local monitoring display for process equipment control panels.
Installation Requirements Insert IDM‑96 from cabinet panel front side into 96 mm × 96 mm standard cut‑out hole. Install rear clamping fasteners and tighten to fix meter body firmly onto cabinet panel. Connect power supply and measurement signal cables to rear screw‑clamp terminals and tighten terminals to specified torque. Implement protective earthing complying with cabinet safety specification. Ambient operating temperature shall stay within 0 ℃ ~ +60 ℃ without condensation. Complete input range parameter configuration after power‑on.
Usage Notes Signal input amplitude shall not exceed meter rated maximum input range. Use shielded twisted‑pair cables for measurement signal wiring. Periodically inspect rear‑side terminal fastening condition and front‑panel dust accumulation.
