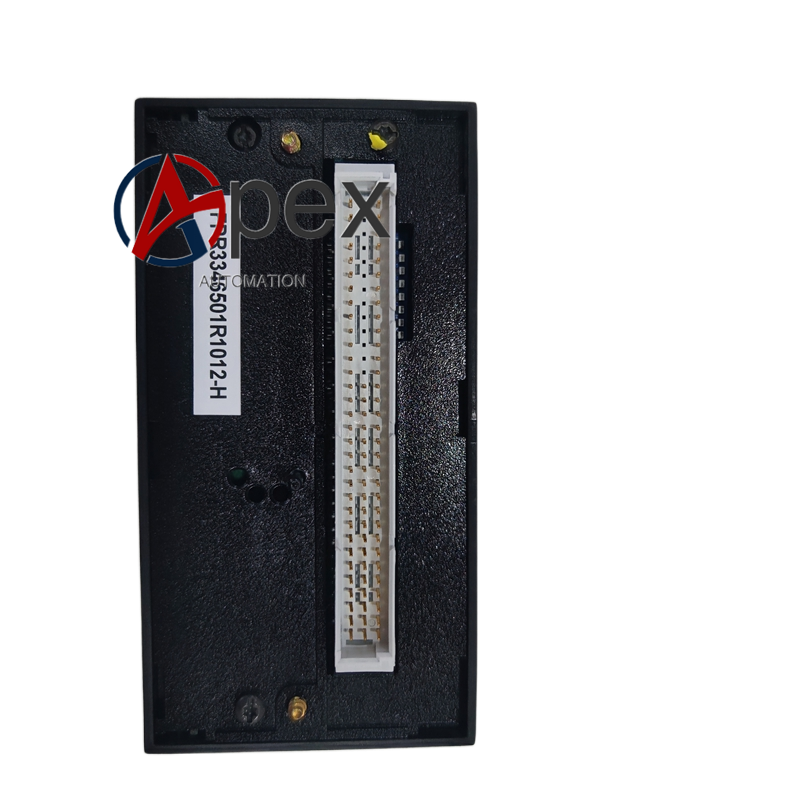

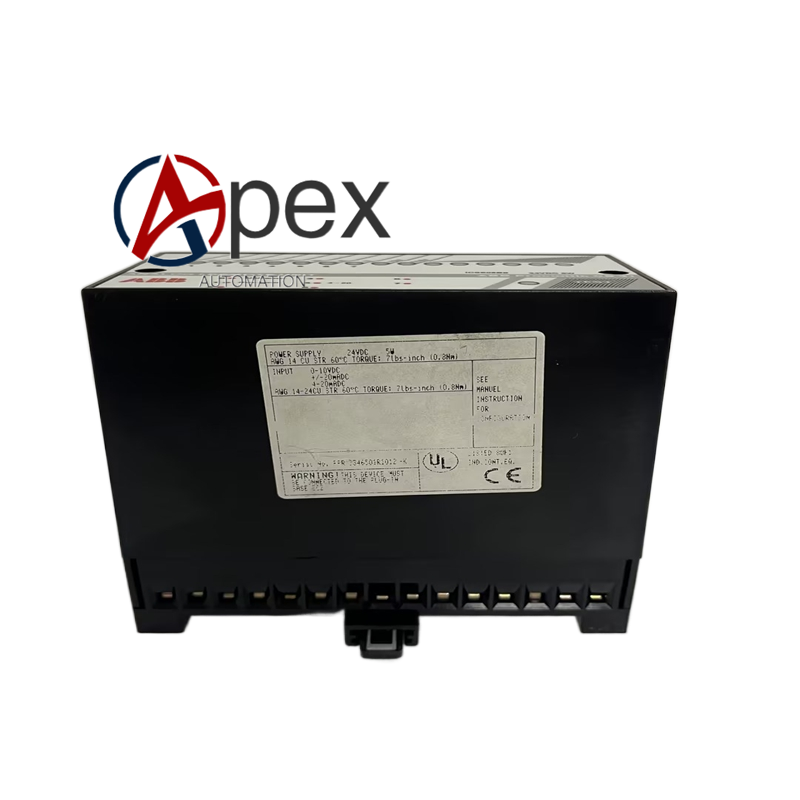

ABB ICSE08B5 FPR3346501R1012 Digital Output Module

Technical Specifications Model: ICSE08B5, Part No. FPR3346501R1012 Signal Type: 24 V DC digital output Channel Quantity: Multi‑channel digital output Galvanic Isolation: Group‑wise channel isolation Mounting Style: Control rack plug‑in module Power Supply: From rack back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Multi‑channel 24 V DC discrete switching output for field actuators. Group‑wise galvanic isolation isolates field‑side interference from control system logic circuit. Per‑channel hardware over‑current protection avoids module damage caused by field load short‑circuit. Front‑panel LED indicators display each channel output status and module fault alarm information. On‑board self‑diagnosis monitors back‑plane power supply, output over‑current and internal circuit fault. Supports authorized hot‑swap operation under system maintenance procedure.

Application Scenarios Spare‑part replacement for ICSE08B5 FPR3346501R1012 digital output module in control rack. On‑off driving control for solenoid valves, intermediate relays and indicator lamps in process industry. Discrete output hardware renewal for legacy ABB automation control projects.

Installation Requirements Insert ICSE08B5 FPR3346501R1012 into target rack slot and lock side locking buckle. Complete connection between module and corresponding field termination hardware. Implement protective earthing complying with automation system grounding specification. Reserve ventilation heat‑dissipation space around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Verify channel output action function after hardware installation completion.

Usage Notes Field output cables adopt shielded twisted‑pair and implement single‑point shielding earthing. Do not exceed rated channel load current for output loops. Periodically inspect connection status and remove cabinet dust accumulation.
