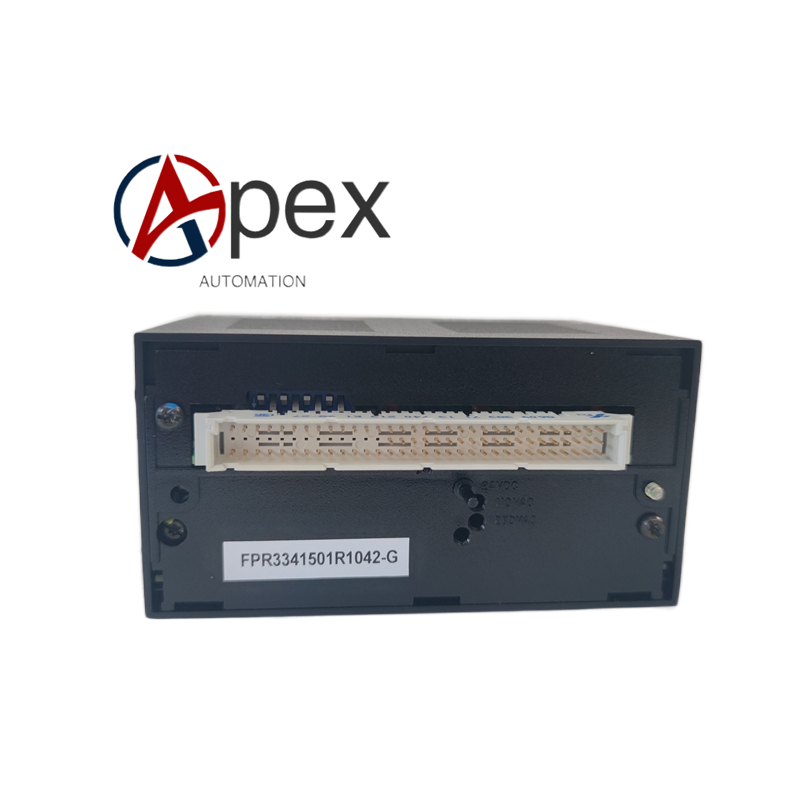

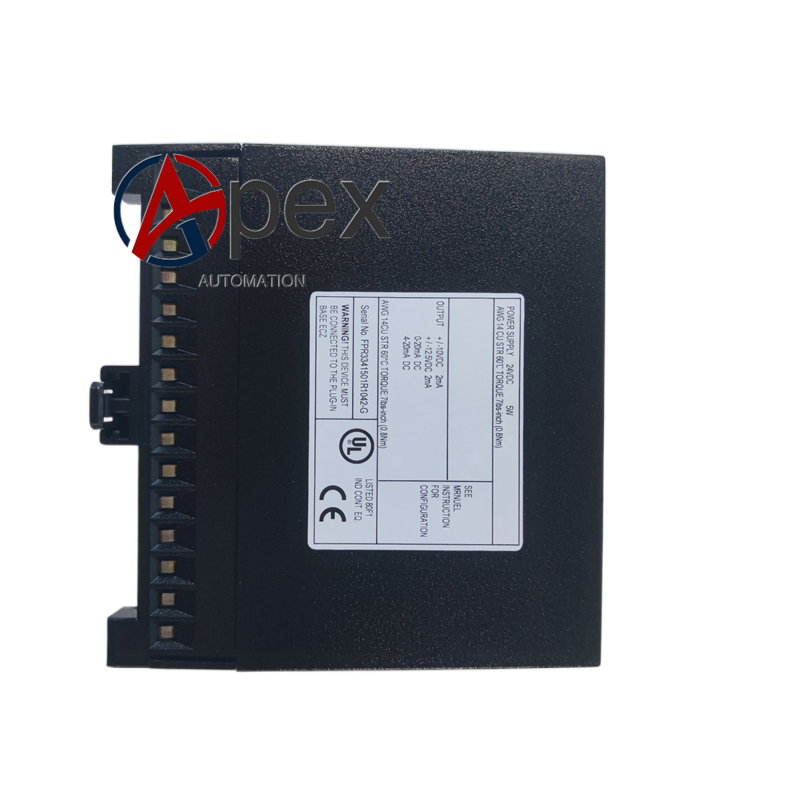

ABB ICSA04B5 FPR3341501R1042 Analog Output Module

Technical Specifications Model: ICSA04B5, Part No. FPR3341501R1042 Signal Type: 4‑20 mA analog output Channel Quantity: Multi‑channel analog output Galvanic Isolation: Group‑wise channel isolation Mounting Style: Control rack plug‑in module Power Supply: From rack back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Converts digital control values into standard 4‑20 mA analog output signals for field actuators. Group‑wise galvanic isolation suppresses ground‑loop interference between field equipment and control rack. Built‑in output loop open‑circuit detection function identifies field cable breakage fault. Front‑panel LED indicators display module power‑on, running and fault alarm status. On‑board self‑diagnosis monitors back‑plane power supply, D/A conversion circuit and loop fault. Supports authorized hot‑swap operation under system maintenance procedure.

Application Scenarios Spare‑part replacement for ICSA04B5 FPR3341501R1042 analog output module in control rack. Adjustment output for control valves in chemical, power and process industry automation systems. Hardware overhaul and spare‑part renewal for legacy ABB automation projects.

Working Principle ICSA04B5 FPR3341501R1042 obtains operating power from rack back‑plane bus. Digital control commands sent by main controller are received via back‑plane bus. Internal D/A conversion chip converts digital quantity into analog signal, which passes conditioning and galvanic isolation and is output to field actuators through matched termination hardware. Self‑diagnosis circuit detects output loop open‑circuit and internal hardware faults and reports alarm information. LED indicators reflect module real‑time working state.

Installation Requirements Insert ICSA04B5 FPR3341501R1042 into target rack slot and lock side locking buckle. Complete connection between module and corresponding field termination hardware. Implement protective earthing complying with system grounding specification. Reserve ventilation heat‑dissipation space around module slot.
