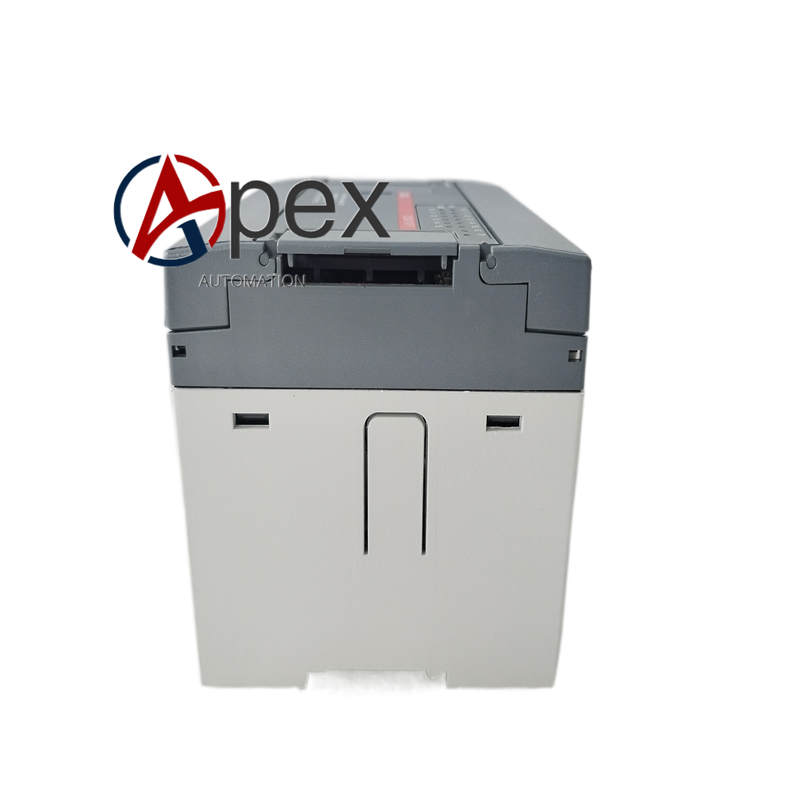

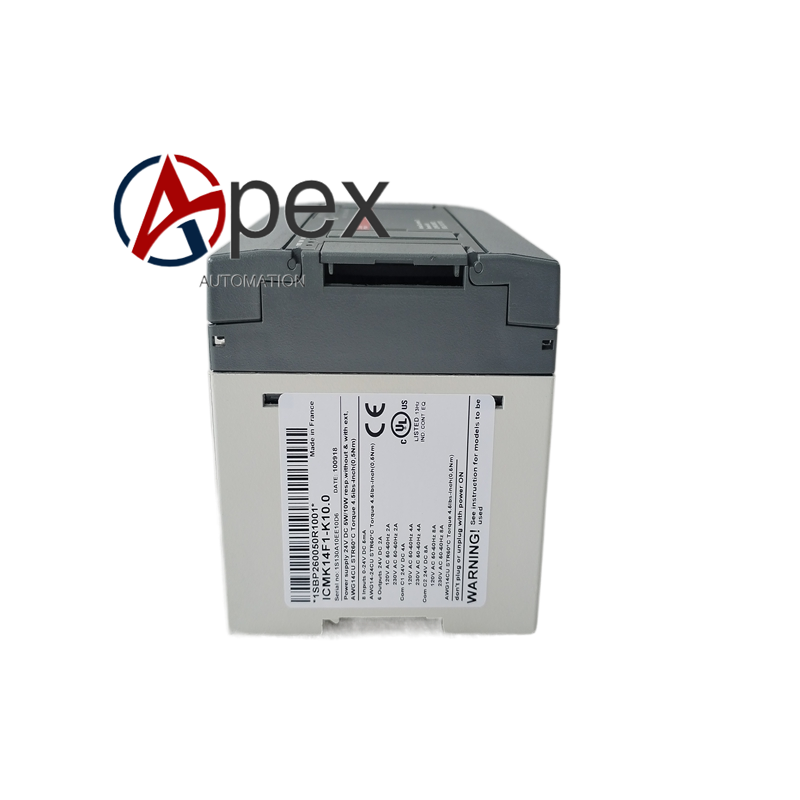

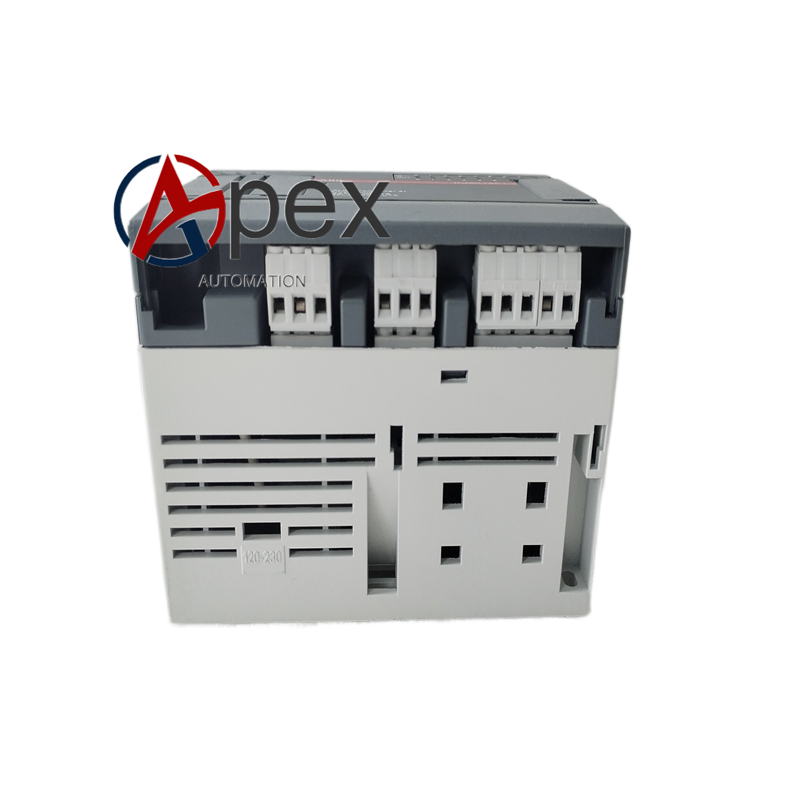

Technical Specifications Model: ICMK14F1‑K10 Coil Control Voltage: Industrial standard control voltage Contact Rating: Rated switching capacity for resistive and inductive loads Mounting Mode: TS35 DIN‑rail mounting Operating Temperature: ‑25 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Electromagnetic drive realizes reliable closing and opening of main contact loops. Auxiliary contact groups provide switching status feedback signals for control system. Built‑in coil surge suppression component reduces electromagnetic interference generated by coil break‑off. Compact DIN‑rail mounting structure saves cabinet internal installation space. Mechanical status indicator directly reflects contactor pull‑in or release state.
Application Scenarios Spare‑part replacement for ICMK14F1‑K10 contactor module inside industrial control cabinet. Switching control for cabinet auxiliary circuits, small‑power fan and lighting loads. Logic loop switching for motor control and automation panels.
Working Principle When rated control voltage is applied to coil terminals, electromagnetic coil generates magnetic force to pull in armature, driving main contacts and auxiliary contacts to close. After cutting off coil power supply, spring force drives armature to reset, contacts open and cut off load circuit. Auxiliary contacts output switch status feedback signal to external control system. Surge suppression component absorbs reverse electromotive force generated during coil power‑off.
Installation Requirements Clip ICMK14F1‑K10 firmly onto TS35 standard DIN‑rail inside control cabinet. Connect main load cables and coil control cables to corresponding screw‑clamp terminals and tighten to specified torque. Carry out protective earthing according to electrical cabinet safety specification. Reserve appropriate clearance between adjacent devices for heat dissipation. Ambient operating temperature shall stay within ‑25 ℃ ~ +60 ℃ without condensation. Verify pull‑in and release action after wiring completion.
