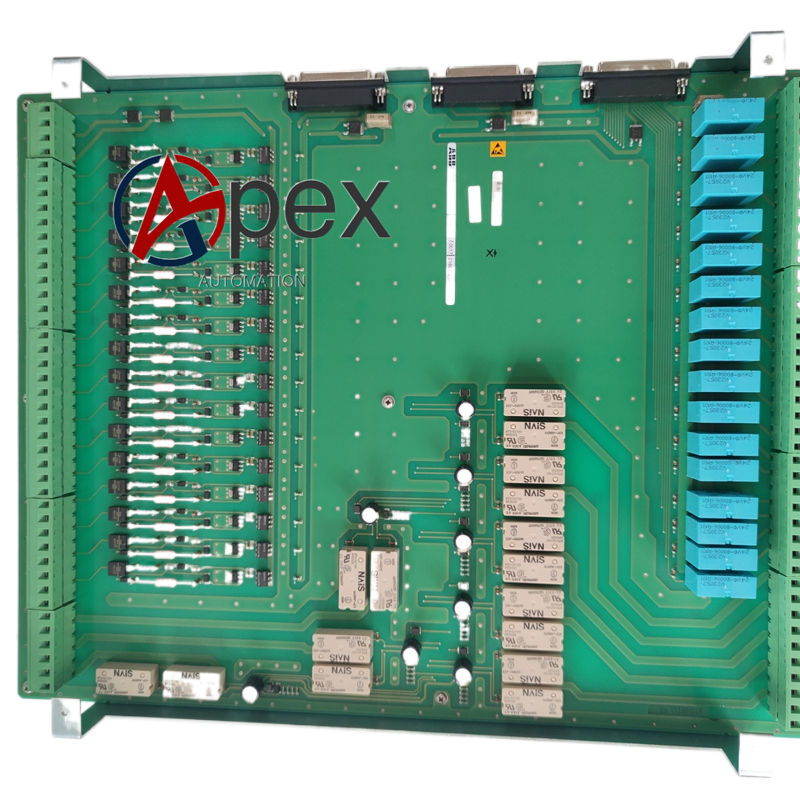

Technical Specifications Model: HESG324430R11B Mounting: Eurocard rack plug‑in board Power Supply: From cabinet rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Signal buffering and conditioning for command and feedback signals between rack internal functional boards. Hardware transient‑surge protection for signal lines passing through this board. Front‑panel LED indicators display board power‑on and signal‑transmission status. On‑board self‑diagnosis monitors back‑plane power supply and internal circuit abnormality. Standard eurocard plug‑in structure supports convenient maintenance and spare‑part swapping.
Application Scenarios Spare‑part replacement for HESG324430R11B interface board inside ABB legacy control rack. Signal interconnection hardware for aged power conversion and automation control systems. Overhaul and spare‑part renewal projects for early‑generation ABB industrial equipment.
Installation Requirements Insert HESG324430R11B fully into designated rack slot and tighten front locking screw. Confirm rear back‑plane connector achieves full engagement without offset or poor contact. Complete protective earthing complying with system grounding specification. Reserve ventilation heat‑dissipation clearance around board slot. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation. Verify system signal exchange function after hardware installation completion.
Usage Notes Wear anti‑static wrist strap during board installation and replacement to prevent static‑electricity damage to electronic components.
