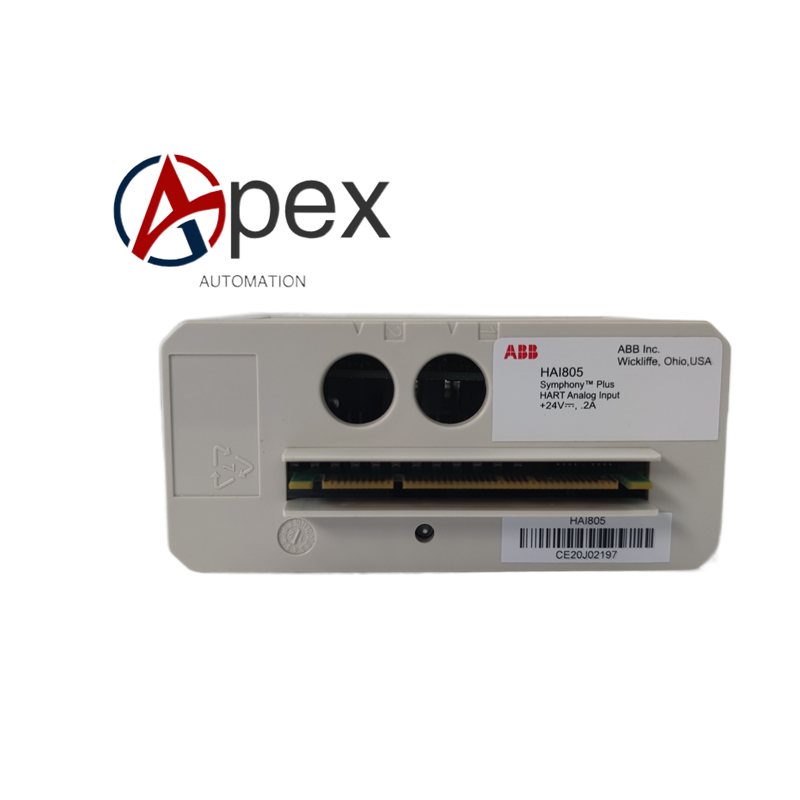

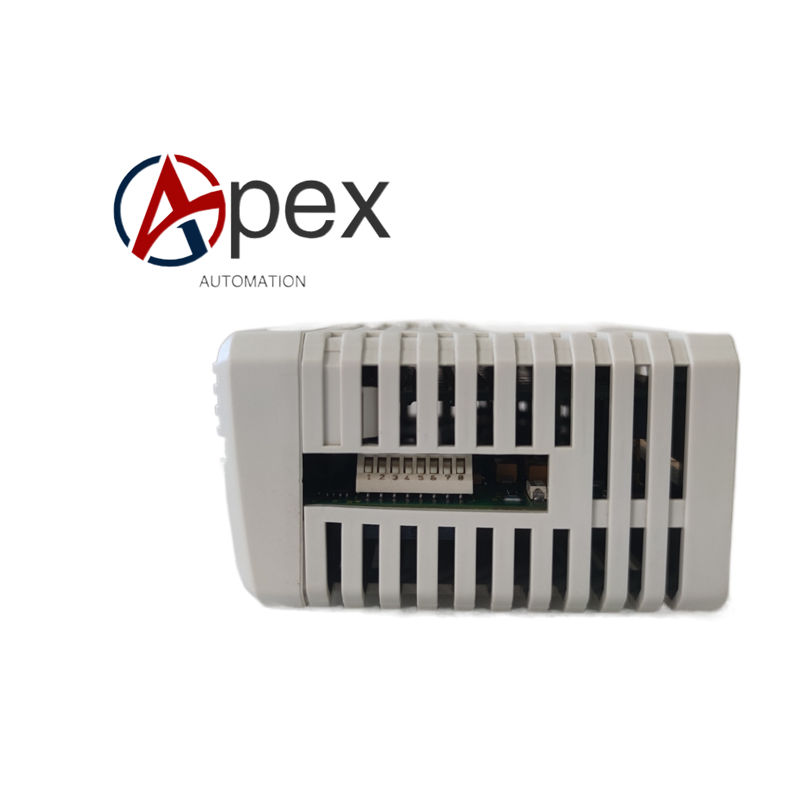

ABB HAI805 Analog Input Module

Technical Specifications Model: HAI805 Signal Type: 4‑20 mA analog input Channel Quantity: Multi‑channel analog input Galvanic Isolation: Channel‑group isolation Mounting: Controller rack plug‑in module Power Supply: From rack back‑plane bus Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

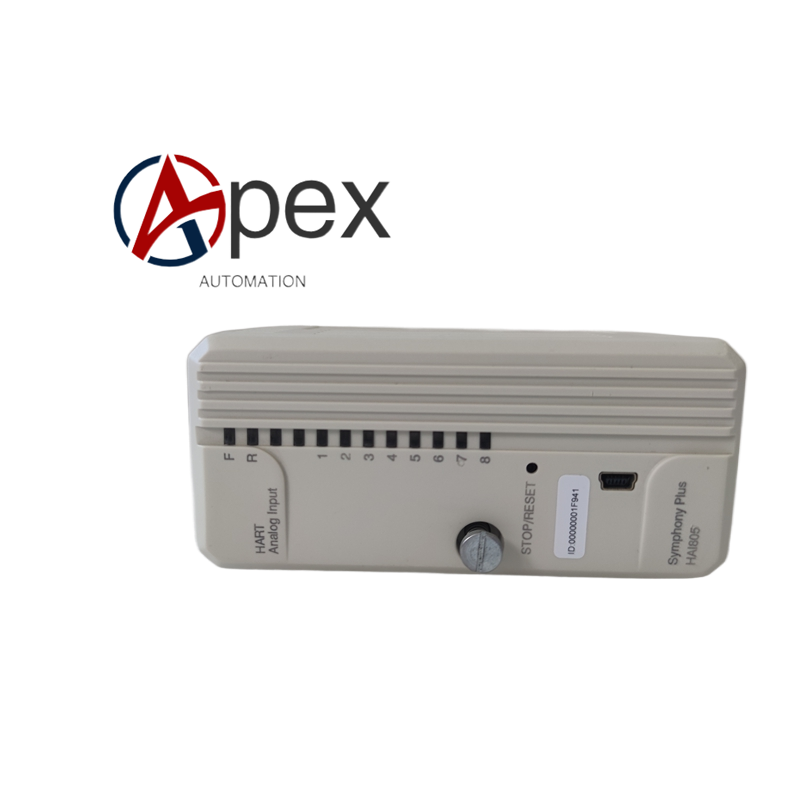

Functional Features Multi‑channel 4‑20 mA analog signal acquisition for field transmitters. Group‑wise galvanic isolation restrains ground‑loop interference from field instrument loops. Built‑in signal over‑range detection function identifies abnormal field transmitter status. Front‑panel LED indicators display module power‑on, running and fault alarm status. Hardware self‑diagnosis monitors back‑plane power supply, A/D conversion circuit and channel open‑circuit fault. Supports hot‑swap operation under authorised system maintenance workflow.

Application Scenarios Spare‑part replacement for HAI805 analog input module in DCS controller rack. Process signal collection for pressure, flow, level and temperature transmitters in chemical, power and pulp‑paper industries. Hardware overhaul and spare‑part renewal for legacy ABB DCS automation projects.

Working Principle HAI805 obtains operating power from DCS rack back‑plane. Field 4‑20 mA analog signals are sent into module through matched termination hardware. Signals pass signal conditioning and galvanic isolation processing, then complete analog‑to‑digital conversion. Converted digital process data is transmitted to controller main CPU through internal back‑plane bus. Self‑diagnosis circuit monitors channel open‑circuit, over‑range and internal hardware faults, and reports fault alarm information. LED indicators reflect module real‑time working state.

Installation Requirements Insert HAI805 into target DCS rack slot and lock side locking buckle. Complete connection between module and corresponding field termination hardware. Implement protective earthing complying with DCS system grounding specification. Reserve ventilation heat‑dissipation space around module slot.
