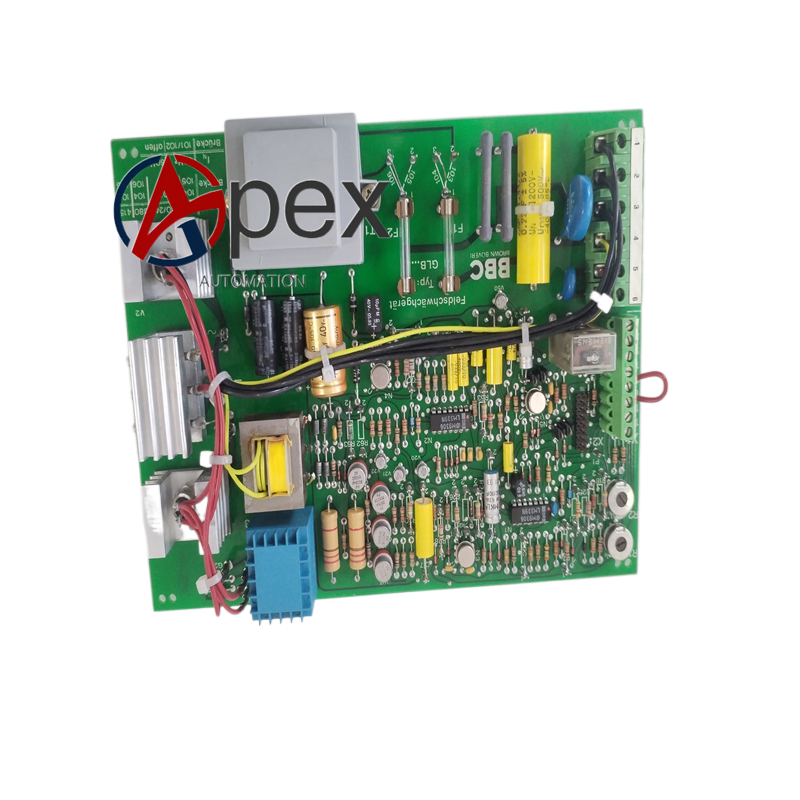

ABB GNT0104500R0002 Auxiliary Power Supply Board

Technical Specifications Model: GNT0104500R0002 Input Power: Industrial AC or DC auxiliary input Output: Multiple stabilised DC output channels Mounting: Rack plug‑in board Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Multi‑channel isolated stabilised DC power output for internal cabinet functional boards. Built‑in over‑voltage, over‑current and short‑circuit hardware protection for each output channel. Front‑panel LED indicators display input power status and output health condition. Internal temperature monitoring implements thermal protection under over‑temperature conditions. Self‑diagnosis circuit detects input loss and output abnormal status and generates fault signals.

Application Scenarios Spare‑part replacement for GNT0104500R0002 auxiliary power board inside power conversion or control cabinet. Internal power supply support for legacy ABB power and automation hardware. Overhaul and spare‑part renewal of aged industrial control cabinets.

Working Principle GNT0104500R0002 receives main auxiliary power input. Internal power conversion circuit executes rectification, isolation and voltage stabilisation processing, generating multiple groups of stable isolated DC power. Output power is transmitted to each functional board via cabinet back‑plane connector. Hardware protection circuits activate to cut relevant output channel when over‑voltage, over‑current or short‑circuit fault occurs. Temperature sensor monitors board working temperature and triggers thermal protection upon over‑temperature event. LED indicators reflect power supply working state, and fault status signals are sent to main control unit.

Installation Requirements Insert GNT0104500R0002 fully into designated cabinet slot and tighten front locking screw. Connect main auxiliary power input cable to front screw terminals and tighten to specified torque. Complete protective earthing complying with cabinet safety grounding specification. Reserve sufficient ventilation space around board slot for heat dissipation. Ambient operating temperature shall maintain within 0 ℃ ~ +60 ℃ without condensation.
