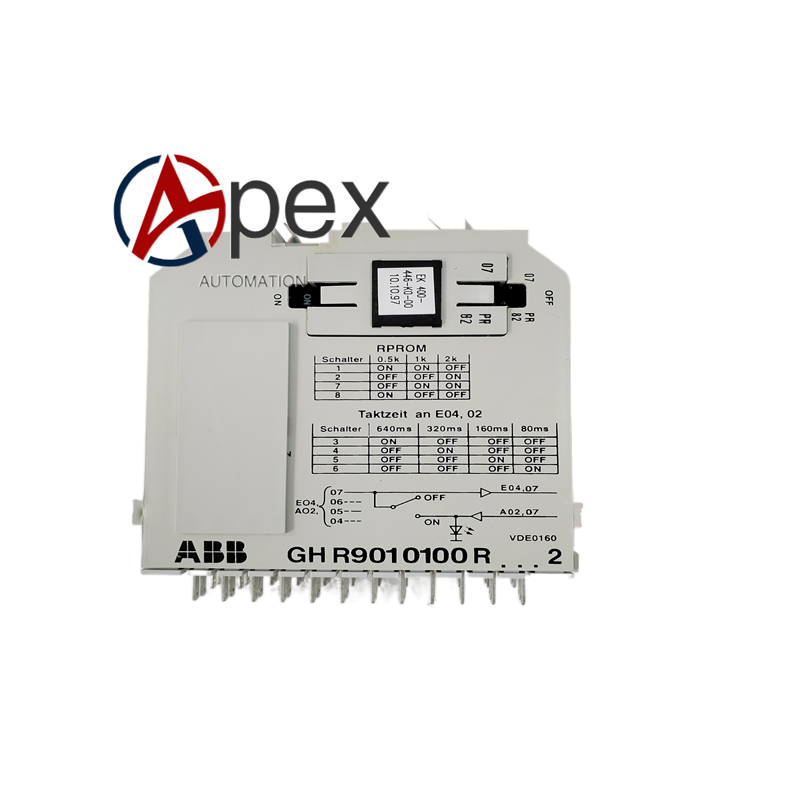

ABB GHR9010100R0002 Power Interface Board

Technical Specifications Model: GHR9010100R0002 System Compatibility: ABB industrial power conversion system Input Power Range: Multi‑channel auxiliary control power input Signal Type: Power status feedback digital signals Mounting: Rack plug‑in board Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Multi‑channel auxiliary power distribution for internal sub‑modules inside power cabinet. Hardware monitoring for input auxiliary power supply voltage status. Galvanic isolation for power‑supply fault feedback signals. Front‑panel LED indicators reflect power input and fault alarm conditions. On‑board self‑diagnosis detects under‑voltage, over‑voltage and internal circuit anomalies. Supports signal forwarding of power‑supply abnormal events to main control processor.

Application Scenarios Spare‑part replacement for GHR9010100R0002 power interface board inside power conversion cabinet. Auxiliary power distribution and status monitoring for rectifier and excitation power units. Maintenance renewal project for ageing ABB power conversion hardware.

Working Principle GHR9010100R0002 receives auxiliary control power input. Internal power distribution circuit converts and distributes qualified power to each subordinate functional board. Voltage sampling circuit continuously monitors input power parameters. Fault feedback signals from power unit pass through optocoupler isolation before being sent to main control board via back‑plane connector. LED indicators display power supply working status. Self‑diagnosis circuit captures power‑supply deviation events and reports fault messages to system controller.

Installation Requirements Insert GHR9010100R0002 fully into target cabinet slot and tighten front locking screw. Connect external auxiliary power and feedback signal cables to front screw‑clamp terminals and apply specified tightening torque. Complete protective earthing following cabinet grounding specification. Separate power cables from weak‑signal communication cables inside cabinet. Reserve heat‑dissipation clearance around board slot.
