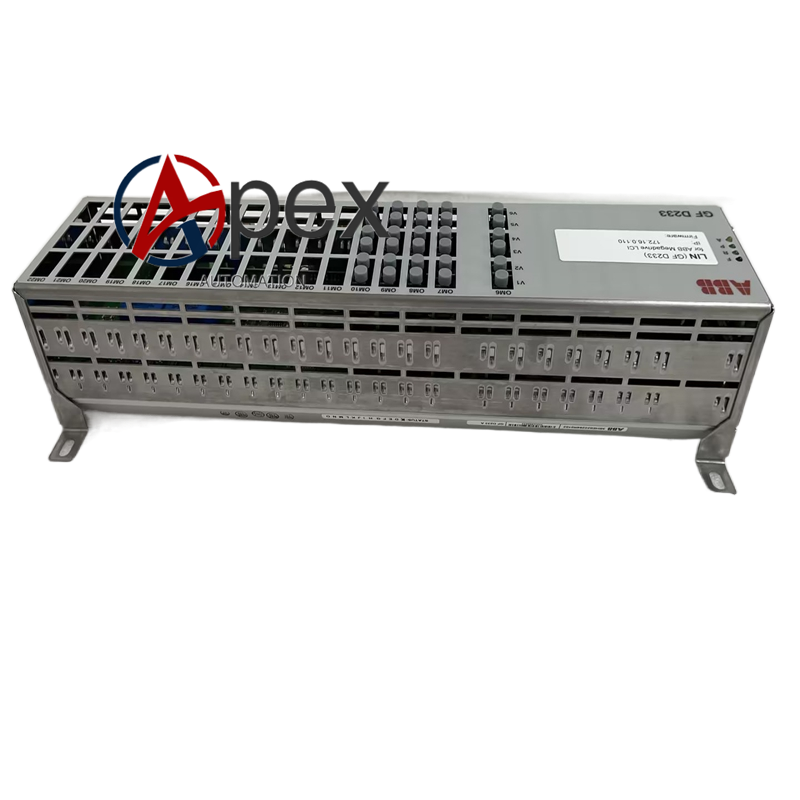

ABB GFD233A 3BHE022294R0103 Gate Firing Driver Board

Technical Specifications Model: GFD233A, Part No. 3BHE022294R0103 Application Object: High‑power thyristor rectifier unit Input Signal: Low‑level logic trigger pulse signal Output Signal: Thyristor gate high‑energy firing pulse Galvanic Isolation: High‑voltage isolation between logic side and power‑device driving side Mounting: Power‑unit cabinet plug‑in board Power Supply: Auxiliary control power from power cabinet Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Receives low‑level trigger pulse from control‑logic board and completes power amplification for thyristor gate‑firing requirement. High‑voltage galvanic isolation separates low‑voltage control‑logic circuit and high‑power thyristor driving circuit. Output‑circuit over‑current protection prevents damage caused by thyristor gate‑loop short‑circuit fault. Front‑panel LED indicators display power‑on status and trigger‑pulse output activity. Built‑in self‑diagnosis monitors auxiliary‑power abnormality and internal circuit fault.

Application Scenarios Spare‑part replacement for GFD233A 3BHE022294R0103 gate‑firing driver board in high‑power rectifier cabinet. Thyristor driving hardware for generator excitation rectifier unit and industrial high‑power DC‑supply rectifier equipment. Overhaul and spare‑part renewal project for legacy ABB high‑power thyristor power‑conversion devices.

Installation Requirements Insert GFD233A 3BHE022294R0103 fully into designated power‑unit cabinet slot and tighten front locking screw. Connect thyristor gate‑firing pulse cables to front‑side high‑voltage‑resistant screw terminals, tighten terminals to specified torque value. Complete protective earthing strictly following power‑conversion cabinet grounding safety specification. High‑voltage pulse‑output cables must be physically separated from weak‑signal control cables inside cabinet. Reserve sufficient ventilation heat‑dissipation space around board slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Complete pulse‑output function test after hardware installation.
