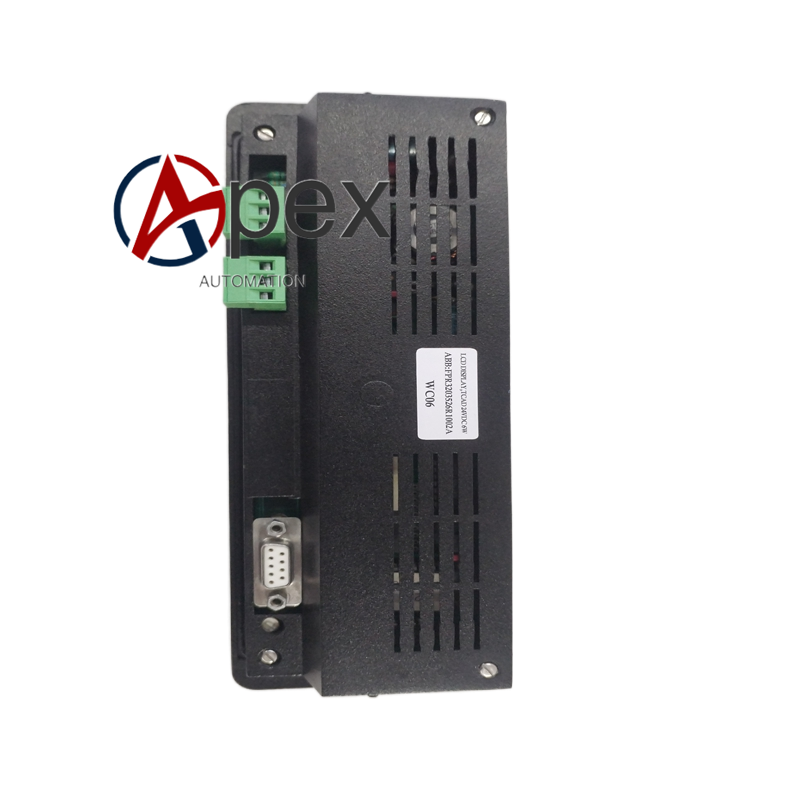

Technical Specifications Model: FPR3203526R1002A System Compatibility: ABB Advant Master DCS System Mounting: Eurocard controller rack plug‑in Power Supply: From controller rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Industrial real‑time processor executes complex user control application programs. Bidirectional high‑speed data interaction with all I/O modules through Advant Master internal back‑plane bus. Completes PID regulation, logic interlock, sequence‑control and process‑alarm processing function. Front‑panel multi‑LED indicators display power‑on, running, fault and bus‑communication status. Built‑in comprehensive hardware self‑diagnosis monitors CPU, memory and back‑plane‑bus faults. Supports hot‑swap operation under authorized system maintenance workflow.
Application Scenarios Spare‑part replacement for FPR3203526R1002A processor board in Advant Master controller rack. Core control hardware for chemical, power and pulp‑paper legacy Advant Master DCS automation projects. Hardware overhaul and spare‑part renewal project for old‑generation ABB DCS systems.
Installation Requirements Insert FPR3203526R1002A fully into designated controller rack slot and tighten front locking screw. Confirm back‑plane connector is completely engaged without offset or poor contact. Implement protective earthing complying with Advant Master system grounding specification. Reserve sufficient ventilation heat‑dissipation space around processor‑board slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Download complete system‑configuration and finish controller initialization after hardware installation.
