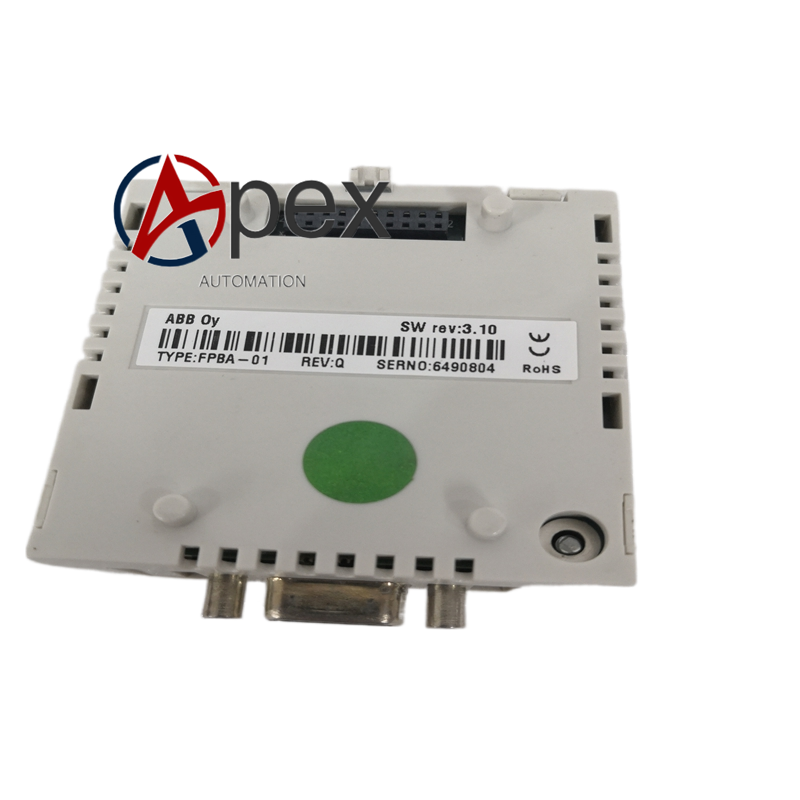

Technical Specifications Model: FPBA‑01 Supported Drive Series: ACS355, ACSM1, ACS850, ACS880, ACS580, ACQ810 Communication Standard: PROFIBUS‑DP‑V0, DP‑V1 Baud Rate: Up to 12 Mbit/s auto‑detection Profile Support: PROFIdrive, ABB drive profile, 16‑bit transparent, 32‑bit transparent Interface: 9‑pin D‑SUB PROFIBUS connector Mounting: Plug‑in installation inside frequency‑converter option slot Power Supply: Derived from frequency‑converter internal option‑slot power supply Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CEABB Group

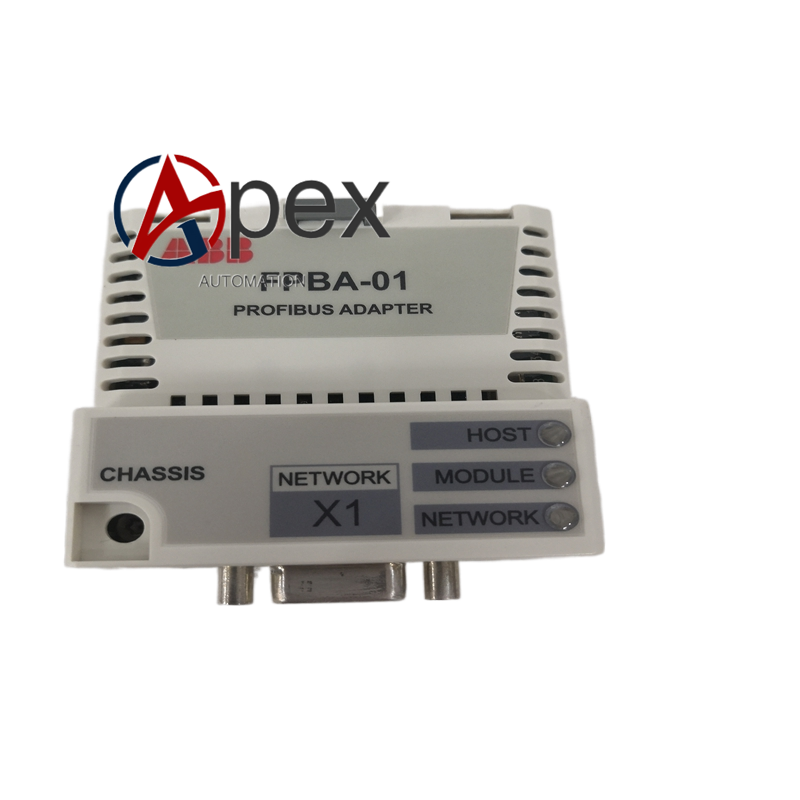

Functional Features Plug‑in PROFIBUS‑DP adapter for ABB variable‑frequency drives, supports DP‑V0 cyclic data exchange and DP‑V1 acyclic parameter access. Multiple communication profiles satisfy different drive‑control application requirements. Supports PPO1‑PPO8 data object modes for flexible process‑data configuration. Front‑panel LED indicators display module power‑on, PROFIBUS‑link and fault‑alarm status. No external auxiliary power supply needed, power is obtained from frequency‑converter option‑slot. Module self‑diagnosis monitors bus‑communication fault and internal hardware abnormality.
Application Scenarios Spare‑part replacement for FPBA‑01 fieldbus adapter of ABB frequency converters. PROFIBUS‑DP fieldbus control for ABB drives in production‑line, pump‑fan and material‑handling industrial sites. Retrofit adding PROFIBUS‑DP communication function for existing ABB variable‑frequency‑drive equipment.
Installation Requirements Power off frequency converter completely before installation, insert FPBA‑01 into drive designated option‑slot and fasten fixing screw. Connect PROFIBUS‑DP shielded bus cable to front‑panel 9‑pin D‑SUB connector, install terminal resistance at bus physical end. Set unique PROFIBUS‑DP slave station address through frequency‑converter parameter group. Select matched communication profile and PPO mode via drive parameter setting. Implement protective earthing complying with frequency‑converter cabinet grounding specification. Ambient operating temperature shall keep within 0 ℃ ~ +55 ℃ without condensation.
