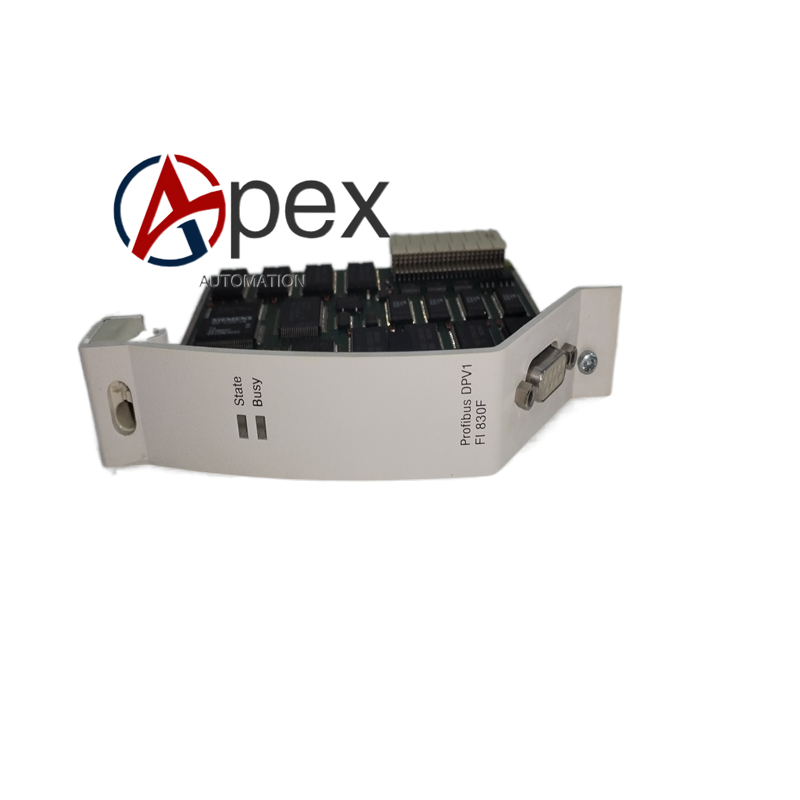

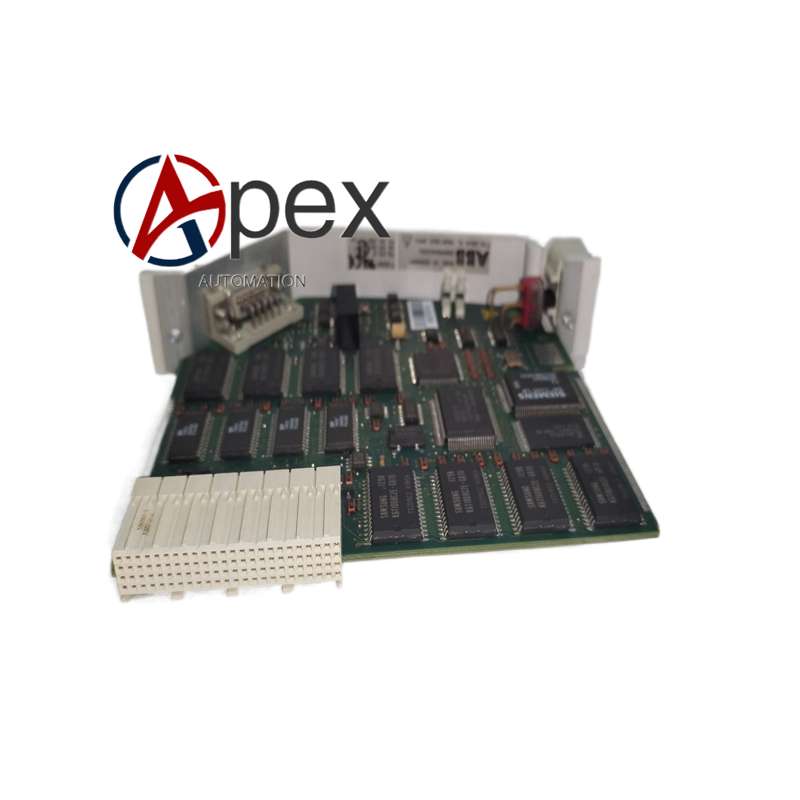

ABB FI830F PROFIBUS‑DP Master Communication Module

Technical Specifications Model: FI830F System Compatibility: ABB AC 800M Controller System Communication Standard: PROFIBUS‑DP V0 / V1 Max Baud Rate: 12 Mbit/s Max Connectable Slave Quantity: 126 slave stations Interface: 9‑pin D‑SUB PROFIBUS connector Mounting: Controller rack plug‑in module Power Supply: From controller rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Works as PROFIBUS‑DP master station to realize cyclic data interaction with field slave devices. Supports baud‑rate auto‑detection up to 12 Mbit/s, compatible with standard PROFIBUS‑DP slave equipment. Realizes process‑data reading‑writing, parameter access and alarm‑message acquisition for slave stations. Front‑panel LED indicators show module power‑on, bus‑activity and slave‑communication fault status. Configurable entirely via Control Builder engineering software without extra external configuration tool. Built‑in comprehensive self‑diagnosis monitors back‑plane power supply, bus hardware and slave‑station communication faults. Supports hot‑swap operation under authorized system maintenance workflow.

Application Scenarios Spare‑part replacement for FI830F PROFIBUS‑DP master module in AC 800M controller rack. PROFIBUS‑DP fieldbus control for chemical, power and pulp‑paper industrial automation projects. Data interconnection between AC 800M controller and remote I/O, frequency converters and intelligent field instruments.

Installation Requirements Insert FI830F into target slot of AC 800M controller rack and lock side locking buckle. Connect PROFIBUS‑DP shielded bus cable to front‑panel 9‑pin D‑SUB connector, install terminal resistance at bus physical tail‑end. Implement protective earthing complying with AC 800M system grounding specification. Reserve ventilation heat‑dissipation space around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Download project configuration and complete PROFIBUS‑DP slave‑station parameter setting via Control Builder software after hardware installation.
