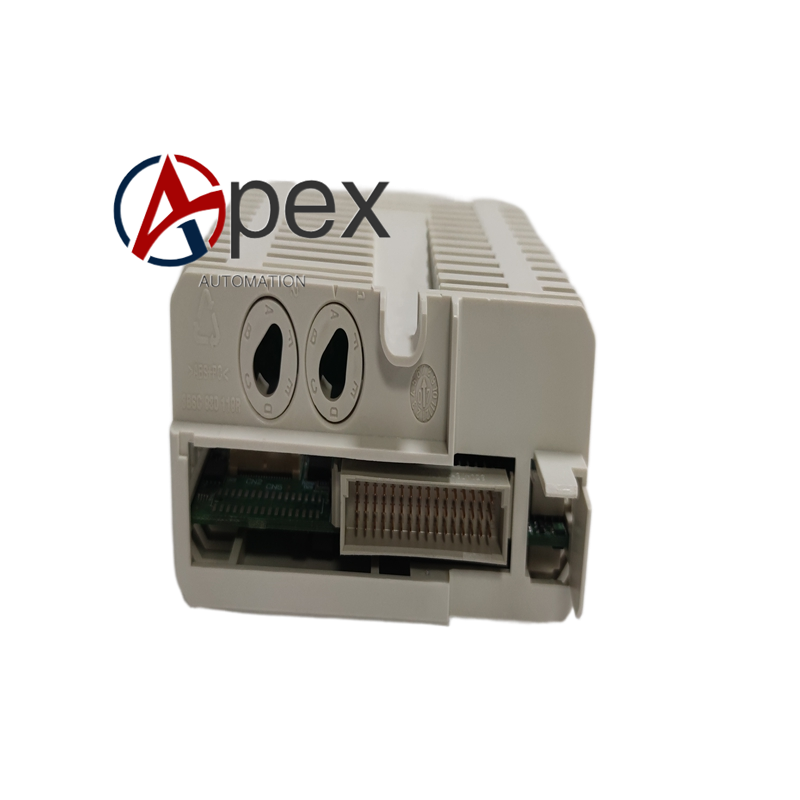

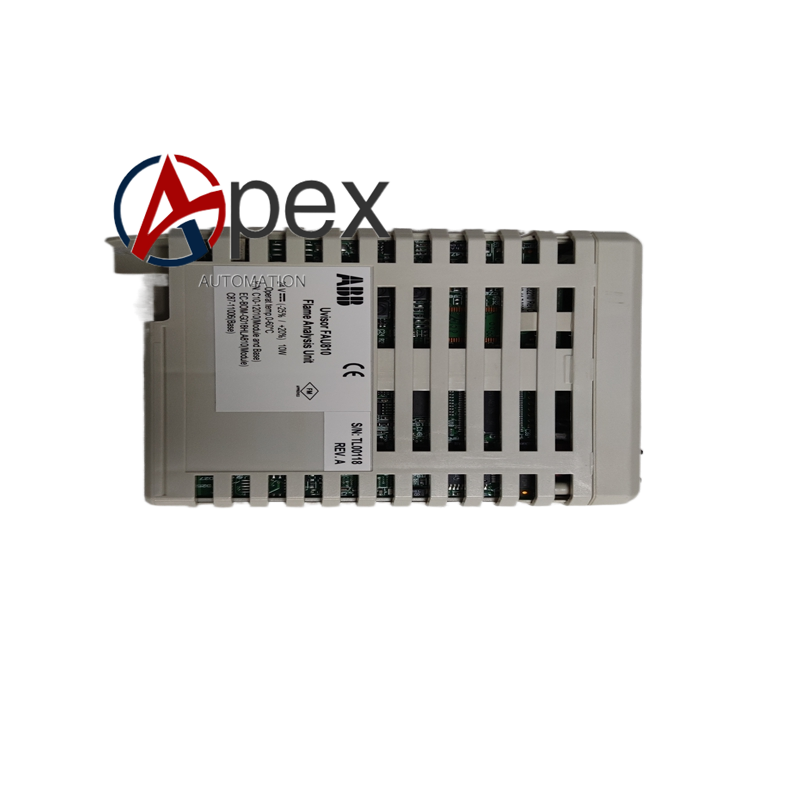

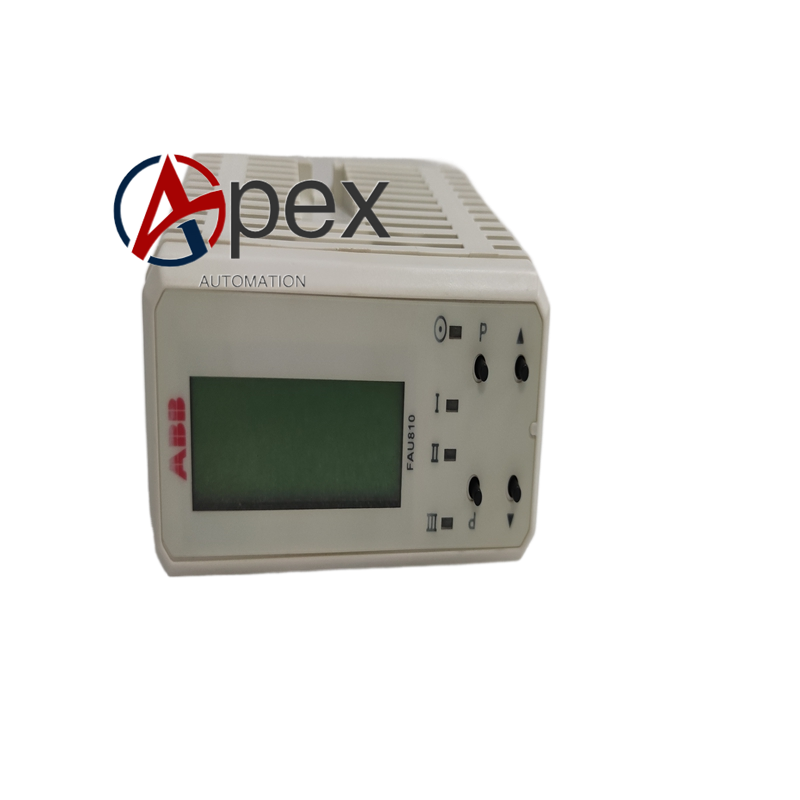

ABB FAU810 Fieldbus Analysis Unit

Technical Specifications Model: FAU810 System Compatibility: ABB 800xA, Freelance DCS, FOUNDATION Fieldbus H1 system Bus Interface: FOUNDATION Fieldbus H1 Bus Monitoring Channel Quantity: 2 channels Mounting: DIN‑rail TS35 mounting Power Supply: 24 V DC Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Dual‑channel FOUNDATION Fieldbus H1 bus real‑time signal monitoring and data capturing. Detects bus noise level, signal amplitude deviation, jitter and communication error event. Records fieldbus fault event log, provides fault time‑stamp for maintenance troubleshooting. Supports diagnosis‑data upload to DCS monitoring platform for centralized fieldbus status display. Front‑panel LED indicators show power‑on, bus activity and fault alarm status. Built‑in hardware self‑diagnosis monitors unit internal working condition.

Application Scenarios Spare‑part replacement for FAU810 fieldbus analysis unit in fieldbus control cabinet. Continuous condition monitoring for FOUNDATION Fieldbus H1 loops in petrochemical and process industry. Fieldbus fault locating, routine health inspection and system acceptance test for automation projects.

Installation Requirements Clip FAU810 firmly onto standard TS35 DIN‑rail inside control cabinet. Connect FOUNDATION Fieldbus H1 bus shielded cables and 24 V DC power‑supply cable to front screw‑clamp terminals, tighten terminals to specified torque. Implement protective earthing complying with fieldbus system grounding specification. Fieldbus signal cables shall keep physical separation from high‑power power cables inside cabinet. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Complete monitoring‑mode configuration through engineering software after hardware installation.
