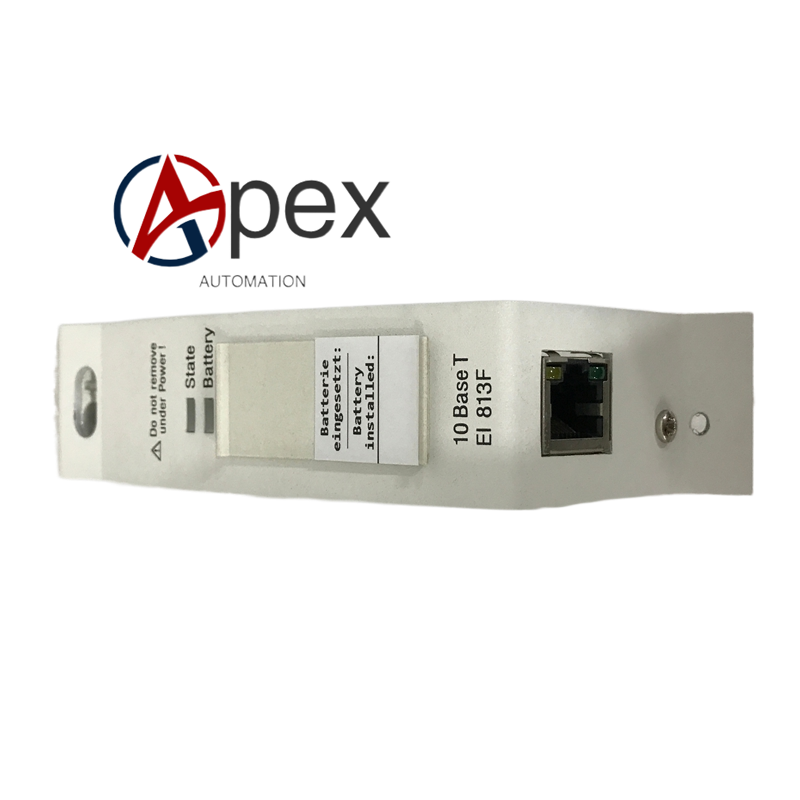

Technical Specifications Model: EI813F System Compatibility: ABB AC 800M Controller System Ethernet Interface: 1 × RJ45 port, 10/100 Mbps auto‑negotiation Supported Protocol: TCP/IP, UDP, Modbus TCP, ABB internal control protocol Mounting: Controller rack plug‑in module Power Supply: From controller rack back‑plane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features 10/100 Mbps auto‑negotiation RJ45 Ethernet interface completes industrial network data transmission. Supports multiple standard Ethernet communication protocols for interconnection with HMI, SCADA and third‑party devices. Realizes cyclic process data upload, controller configuration download and fault‑alarm message transmission. Front‑panel LED indicators display link status, data transmitting‑receiving status and module fault status. Built‑in hardware self‑diagnosis monitors power supply, bus communication and Ethernet port fault. Supports hot‑swap operation under authorized system maintenance workflow.
Application Scenarios Spare‑part replacement for EI813F Ethernet module in AC 800M controller rack. Ethernet network interconnection for chemical, power and pulp‑paper AC 800M automation projects. Data communication between controller and upper monitoring system and third‑party intelligent field devices.
Installation Requirements Insert EI813F into target slot of AC 800M controller rack and fasten side locking buckle. Connect industrial Ethernet shielded network cable to front‑panel RJ45 port. Implement protective earthing complying with AC 800M system grounding specification. Reserve ventilation heat‑dissipation space around module slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Complete network IP address and communication parameter configuration through Control Builder engineering software after installation.
