Technical Specifications Model: DSPC170 System Compatibility: ABB Advant Master DCS System Processor Type: Industrial real‑time CPU System Bus: Advant Master internal backplane bus Mounting: Eurocard controller rack plug‑in Power Supply: From controller rack backplane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

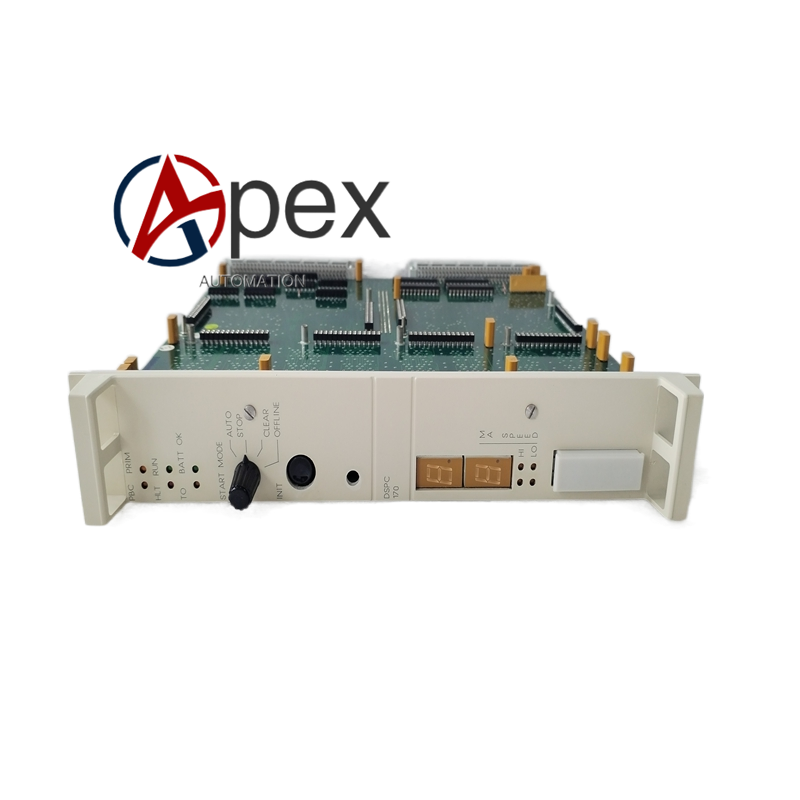

Functional Features Executes real‑time user control application programs for process industry automatic control. Realizes data interaction with each I/O module through rack internal backplane bus. Completes logic calculation, PID loop operation, interlock and sequence control function. Manages system configuration, fault diagnosis and alarm information processing. Front‑panel multi‑LED indicators display power‑on, running, fault and communication status. Supports redundant configuration and hot‑swap under authorized maintenance conditions.
Application Scenarios DSPC170 processor board spare‑part replacement for Advant Master DCS controller rack. Core control unit for chemical, power, pulp‑paper legacy DCS automation projects. Old‑generation ABB DCS system overhaul and hardware renewal projects.
Installation Requirements Insert DSPC170 processor board into target controller rack slot and tighten front locking screw. Ensure backplane connector fully inserts without deflection or poor contact. Implement protective earthing complying with Advant Master system grounding specification. Reserve sufficient ventilation heat‑dissipation space around processor board slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Download system configuration and complete controller initialization after hardware installation.
