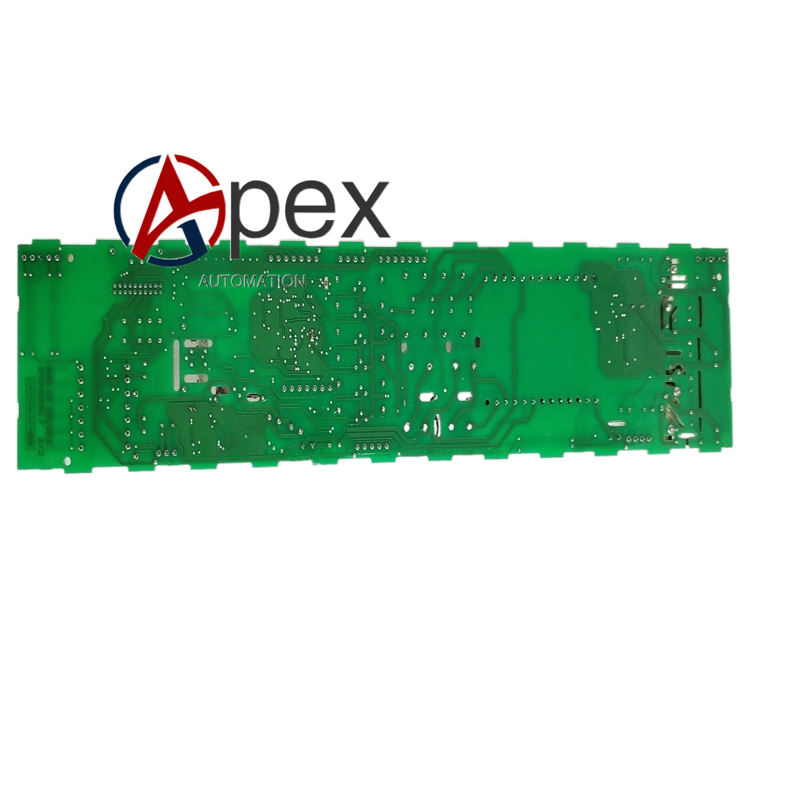

ABB DSMB‑01C Memory Board

Technical Specifications Model: DSMB‑01C System Compatibility: ABB Advant Master Controller Unit Memory Type: Non‑volatile memory Mounting: Eurocard controller rack plug‑in Power Supply: From controller rack backplane Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Provides extended non‑volatile memory storage for controller program, configuration and parameter data. Retains stored configuration data after system power‑off without external battery dependency. High‑speed parallel bus interface realizes high‑efficiency data exchange with main CPU board. Built‑in memory integrity check function detects data read‑write error. Front‑panel LED indicators show power‑on status and memory fault alarm information. Supports hot‑swap operation under authorized system maintenance conditions.

Application Scenarios DSMB‑01C memory board spare‑part replacement for Advant Master controller rack. Controller memory capacity expansion for complex large‑scale process control projects. Legacy DCS system overhaul and hardware upgrade maintenance work.

Installation Requirements Insert DSMB‑01C into designated controller rack slot and tighten front locking screw. Confirm board seat bus connector is fully engaged without offset. Complete protective earthing following Advant Master system grounding specification. Reserve ventilation heat‑dissipation space around memory board slot. Ambient operating temperature shall keep within 0 ℃ ~ +60 ℃ without condensation. Download and verify controller configuration after hardware installation completion.

Usage Notes Avoid static electricity contact with circuit board components during disassembly and installation, adopt anti‑static wrist strap. Do not apply over‑voltage to rack backplane power supply. Periodically inspect board insertion status and cabinet dust accumulation. Keep away from strong electromagnetic interference sources. Execute lock‑out‑tag‑out safety procedure before board extraction or replacement.
